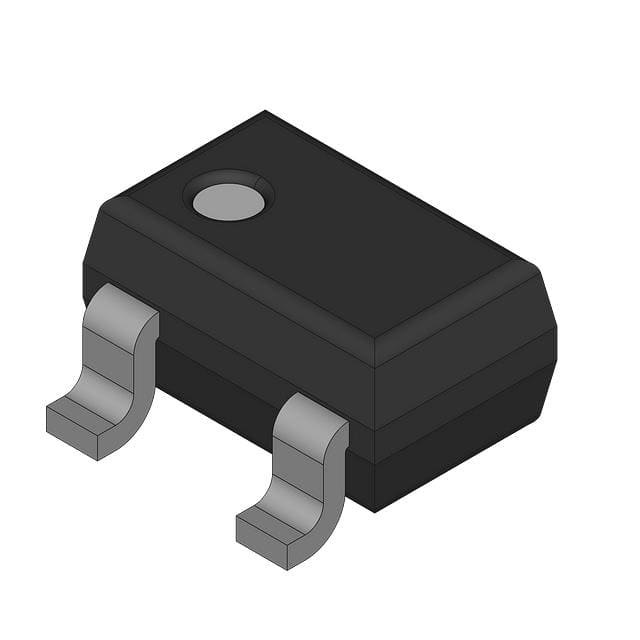

MUN5237T1G

偏置电阻晶体管 Bias Resistor Transistor

Digital Transistors BRT R1 = 47Ωk, R2 = 22Ωk

This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor BRT contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT

can reduce both system cost and board space.

Features

• Simplifies Circuit Design

• Reduces Board Space

• Reduces Component Count

• S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
