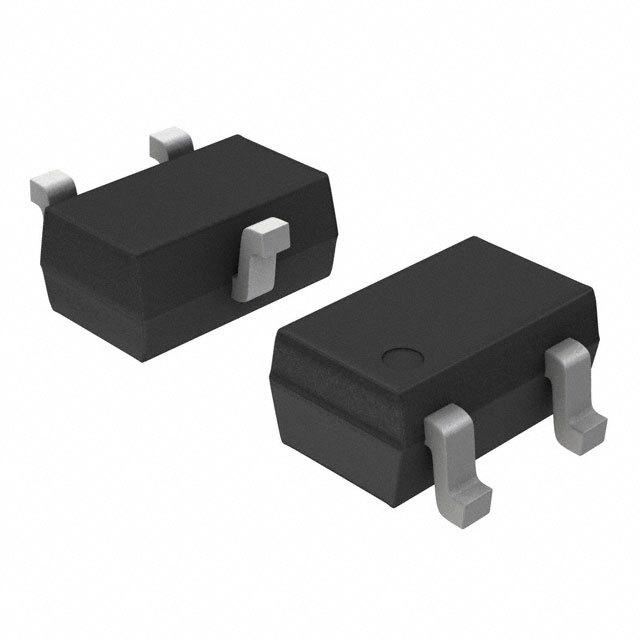

MUN 系列 50 V 100 mA 4.7 kOhm PNP 硅 偏置电阻 晶体管 - SOT-323
- 双极 BJT - 单,预偏置 PNP - 预偏压 50 V 100 mA 202 mW 表面贴装型 SC-70-3(SOT323)
得捷:
TRANS PREBIAS PNP 50V SC70-3
立创商城:
MUN5132T1G
艾睿:
In addition to offering some of the benefits of traditional BJTs, the PNP MUN5132T1G digital transistor, developed by ON Semiconductor, can be used in digital signal processing circuits as well. This product&s;s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 15@5mA@10 V. It has a maximum collector emitter saturation voltage of 0.25@1mA@10mA V. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 310 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.
富昌:
MUN 系列 50 V 100 mA 4.7 kOhm PNP 硅 偏置电阻 晶体管 - SOT-323
Chip1Stop:
Trans Digital BJT PNP 50V 100mA Automotive 3-Pin SC-70 T/R
Verical:
Trans Digital BJT PNP 50V 100mA Automotive 3-Pin SC-70 T/R
Newark:
# ON SEMICONDUCTOR MUN5132T1G Bipolar Pre-Biased / Digital Transistor, BRT, 50 V, 100 mA, 4.7 kohm, 4.7 kohm, 1 Ratio, SC-70
额定电压DC -50.0 V
额定电流 -100 mA
无卤素状态 Halogen Free
极性 PNP
耗散功率 0.31 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 15 @5mA, 10V
额定功率Max 202 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 310 mW
安装方式 Surface Mount
引脚数 3
封装 SC-70-3
封装 SC-70-3
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MUN5132T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MUN5132T1 安森美 | 完全替代 | MUN5132T1G和MUN5132T1的区别 |
FJX4001RTF 飞兆/仙童 | 功能相似 | MUN5132T1G和FJX4001RTF的区别 |
FJX4001R 飞兆/仙童 | 功能相似 | MUN5132T1G和FJX4001R的区别 |
