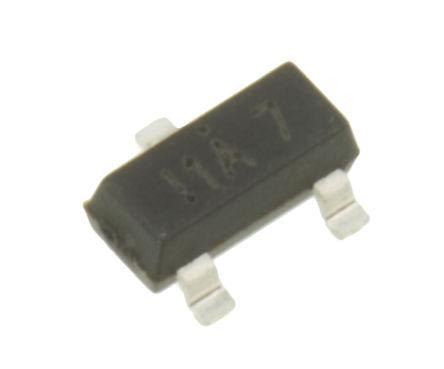

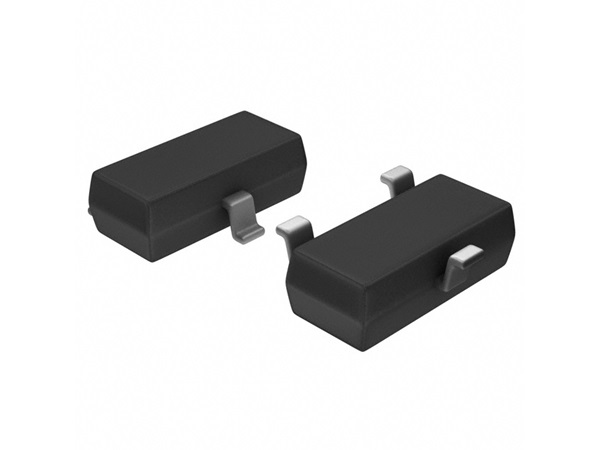

MMBT3904

FAIRCHILD SEMICONDUCTOR  MMBT3904  单晶体管 双极, 通用, NPN, 40 V, 300 MHz, 350 mW, 200 mA, 300 hFE

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO | 60V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO | 40V 集电极连续输出电流ICCollector CurrentIC | 200mA/0.2A 截止频率fTTranstion FrequencyfT | 300Mhz 直流电流增益hFEDC Current GainhFE | 40~300 管压降VCE（sat）Collector-Emitter Saturation Voltage | 200mV~300mV 耗散功率PcPower Dissipation | Description & Applications | NPN Silicon Epitaxial Planar Transistor for switching and amplifier applications. ® As complementary type, the PNP transistor MMBT3906 is recommended. ® This transistor is also available in the TO-92 case with the type designation 2N3904. 描述与应用 | NPN硅外延平面 开关和放大器应用。 ®作为互补型，PNP 晶体管MMBT3906推荐。 ®这个晶体管也可以在TO-92 同类型案件指定2N3904。
