MCFE030/18

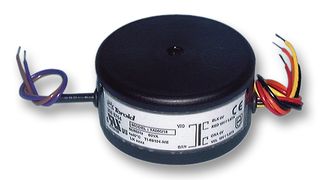

MULTICOMP  MCFE030/18  环形变压器, 32mm x 72.5mm, 30 VA, 2 x 18V, 830 mA, 底板安装

The MCFE series are encapsulated toroidal transformers with flying leads. These transformers have a very high quality construction with high efficiency and smaller size compared to conventional EI transformers. MCFE series features a single primary winding rated at 230V 50/60Hz and dual secondary windings. Secondary windings can be connected in series or parallel or used independently.

.

Power rating ranges from 15VA to 500VA

.

Maximum ambient temperature of 40°C

.

Efficiency up to 95%

.

Secondary voltages ranges from 2 x 6VAC to 2 x 40VAC

.

Extremely low radiated magnetic field, suitable for sensitive electronics

.

Double insulated primary leads

.

Flexible lead outs can be trimmed to any length without the need of enamel removal

.

Fully resin encapsulated in case

.

Designed, tested and manufactured in accordance with EN60742, EN60065 and EN60950

.

100% electrical and flash tested
