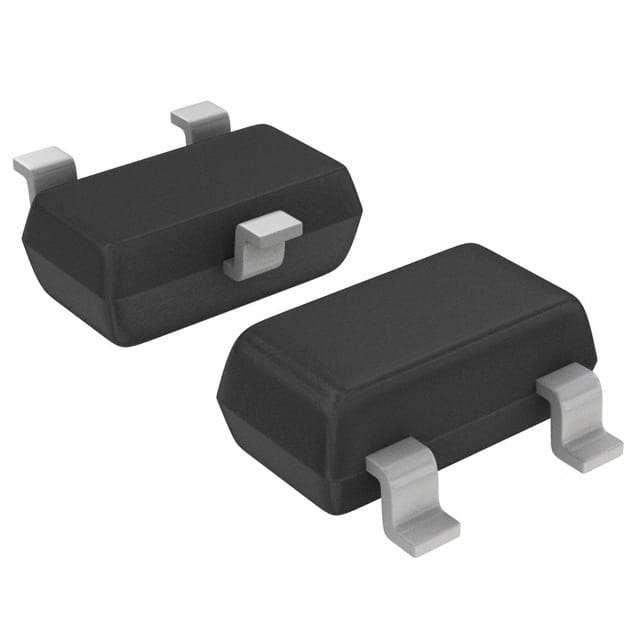

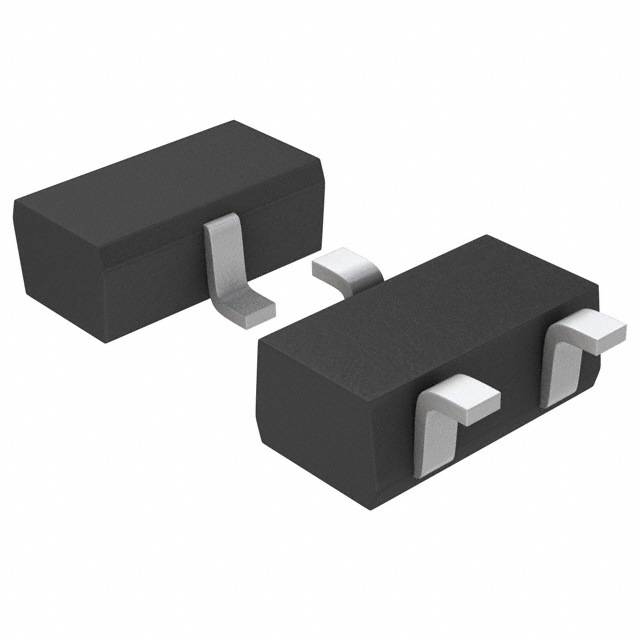

NPN硅偏置电阻晶体管 NPN SILICON BIAS RESISTOR TRANSISTOR
- 双极 BJT - 单,预偏置 NPN - 预偏压 50 V 100 mA 338 mW 表面贴装型 SC-59
立创商城:
MUN2215T1G
得捷:
TRANS PREBIAS NPN 50V 100MA SC59
贸泽:
Bipolar Transistors - Pre-Biased SS BR XSTR NPN 50V
艾睿:
In addition to offering some of the benefits of traditional BJTs, the NPN MUN2215T1G digital transistor, developed by ON Semiconductor, can be used in digital signal processing circuits as well. This product&s;s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 160@5mA@10 V. It has a maximum collector emitter saturation voltage of 0.25@1mA@10mA V. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 338 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.
Chip1Stop:
Trans Digital BJT NPN 50V 100mA 338mW Automotive 3-Pin SC-59 T/R
Verical:
Trans Digital BJT NPN 50V 100mA Automotive 3-Pin SC-59 T/R
Win Source:
NPN SILICON BIAS RESISTOR TRANSISTOR
额定电压DC 50.0 V
额定电流 100 mA
无卤素状态 Halogen Free
极性 NPN
耗散功率 338 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 160 @5mA, 10V
额定功率Max 338 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 338 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.5 mm
高度 1.09 mm
封装 SOT-23-3
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MUN2215T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MUN2215T1 安森美 | 功能相似 | MUN2215T1G和MUN2215T1的区别 |
