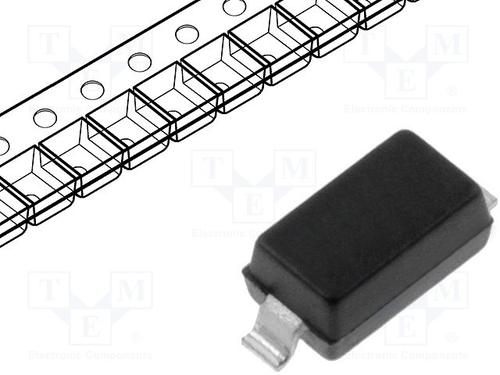

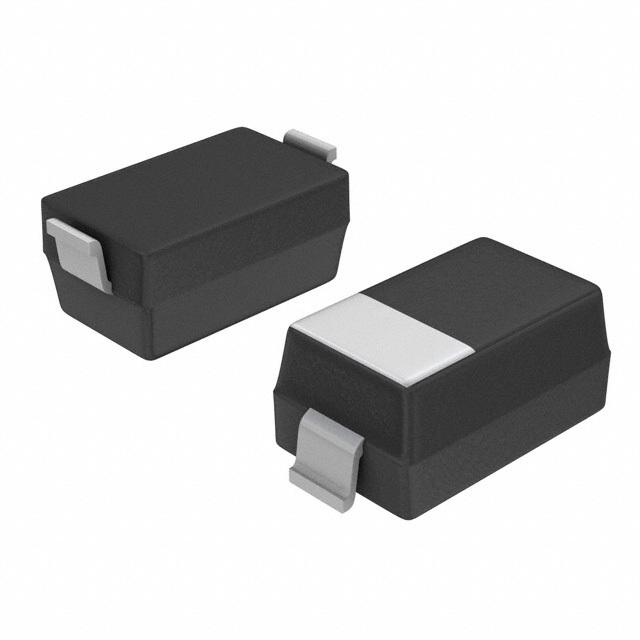

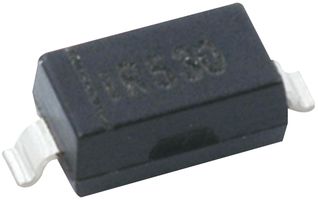

ON SEMICONDUCTOR MMSZ5251BT1G 单管二极管 齐纳, 22 V, 500 mW, SOD-123, 5 %, 2 引脚, 150 °C
齐纳 500mW,MMSZ52xxxT1G / SZMMSZ52xxxT1G 系列,
表面安装外壳,SOD-123
欧时:
ON Semiconductor MMSZ5251BT1G 单路 齐纳二极管, 22V 5% 500 mW, 2引脚 SOD-123封装
得捷:
DIODE ZENER 22V 500MW SOD123
立创商城:
MMSZ5251BT1G
贸泽:
稳压二极管 22V 500mW
e络盟:
单管二极管 齐纳, 22 V, 500 mW, SOD-123, 5 %, 2 引脚, 150 °C
艾睿:
When your circuit needs a diode to operate in the reverse breakdown region be sure to use a voltage regulator MMSZ5251BT1G zener diode from ON Semiconductor. Its maximum leakage current is 0.1 μA. Its maximum power dissipation is 500 mW. Its test current is 5.6 mA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This zener device has a nominal voltage of 22 V and a voltage tolerance of 5%. It is made in a single configuration.
Allied Electronics:
MMSZ5251BT1G Zener Diode, 22V 5% 500 mWSMT 2-Pin SOD-123
安富利:
Diode Zener Single 22V 5% 500mW 2-Pin SOD-123 T/R
Chip1Stop:
Diode Zener Single 22V 5% 500mW Automotive 2-Pin SOD-123 T/R
TME:
Diode: Zener; 0.5W; 22V; SMD; reel, tape; SOD123
Verical:
Zener Diode Single 22V 5% 29Ohm 500mW Automotive 2-Pin SOD-123 T/R
Newark:
# ON SEMICONDUCTOR MMSZ5251BT1G Zener Single Diode, 22 V, 500 mW, SOD-123, 5 %, 2 Pins, 150 °C
Win Source:
DIODE ZENER 22V 500MW SOD123
额定电压DC 22.0 V
容差 ±5 %
额定功率 500 mW
针脚数 2
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 5.6 mA
稳压值 22 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.69 mm
宽度 1.6 mm
高度 1.12 mm
封装 SOD-123-2
材质 Plastic
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMSZ5251BT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SZMMSZ5251BT1G 安森美 | 完全替代 | MMSZ5251BT1G和SZMMSZ5251BT1G的区别 |
MMSZ5251BT1 安森美 | 完全替代 | MMSZ5251BT1G和MMSZ5251BT1的区别 |
SZMMSZ5251ET1G 安森美 | 完全替代 | MMSZ5251BT1G和SZMMSZ5251ET1G的区别 |
