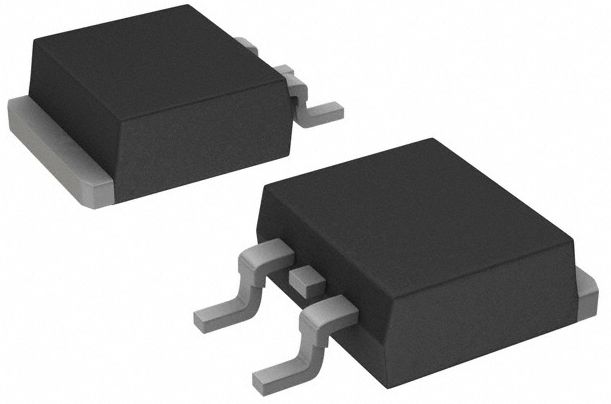

MC7815 线性电压调节器,ON SemiconductorON Semiconductor 线性电压调节器生成固定的 15V 输出,容差为 2% 或 4%。 MC7815 正电压调节器包括安全区补偿;它还具有内部电流限制和热关闭过载保护。 无需外部元件,除非您想要调整输出。 这些设备适用于电子行业内的许多应用。 输出电压:15 V 提供无铅封装提供 ### 线性电压调节器,On Semiconductor
MC7815 线性稳压器,
ON Semiconductor 线性稳压器生成固定的 15V 输出,容差为 2% 或 4%。 MC7815 正电压稳压器包括安全区补偿;它还具有内部电流限制和热关闭过载保护。 无需外部元件,除非您想要调整输出。 这些设备适用于电子行业内的许多应用。
输出电压:15 V
提供无铅封装提供
### 线性稳压器,On Semiconductor
得捷:
IC REG LINEAR 15V 1A D2PAK
欧时:
### MC7815 线性电压调节器,ON SemiconductorON Semiconductor 线性电压调节器生成固定的 15V 输出,容差为 2% 或 4%。 MC7815 正电压调节器包括安全区补偿;它还具有内部电流限制和热关闭过载保护。 无需外部元件,除非您想要调整输出。 这些设备适用于电子行业内的许多应用。 输出电压:15 V 提供无铅封装提供 ### 线性电压调节器,On Semiconductor
立创商城:
MC7815BD2TR4G
e络盟:
线性稳压器, 固定, 7815, 35V输入, 15V和1A输出, TO-263-3
艾睿:
Stable power is ideal for better processing this standard MC7815BD2TR4G linear regulator developed by ON Semiconductor will help do so. Its typical dropout voltage at current is 2@1A V. It has an overall accuracy of ±4 %. This voltage regulation device&s;s single output can produce a current up to 1Min A. By working with a maximum input voltage of 35 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 15 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 300mV and line regulation of 300mV. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
MC7815BD2TR4G, Single Linear Voltage Regulator, 1A 15 V, 3-Pin D2PAK
安富利:
LDO Regulator Pos 15V 1A 3-Pin2+Tab D2PAK T/R
Verical:
Standard Regulator Pos 15V 1A 3-Pin2+Tab D2PAK T/R
Newark:
# ON SEMICONDUCTOR MC7815BD2TR4G LINEAR VOLT REG, 1A, 15V, TO-263-3
力源芯城:
三端小电流正固定电压稳压器
DeviceMart:
IC REG LDO 15V 1A D2PAK
Win Source:
IC REG LDO 15V 1A D2PAK
额定功率 15 W
无卤素状态 Halogen Free
输出接口数 1
输出电压 15 V
输出电流 1 A
针脚数 3
极性 P-Channel
静态电流 8 mA
跌落电压 2V @1A
输入电压Max 35 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±4 %
输入电压 ≤35 V
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
长度 10.24 mm
宽度 9.347 mm
高度 4.572 mm
封装 TO-263-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 车用, Power Management, Automotive, Industrial, 电源管理
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC7815BD2TR4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC7815CD2TR4 安森美 | 完全替代 | MC7815BD2TR4G和MC7815CD2TR4的区别 |
MC7815BD2TR4 安森美 | 完全替代 | MC7815BD2TR4G和MC7815BD2TR4的区别 |
MC7815CD2TG 安森美 | 类似代替 | MC7815BD2TR4G和MC7815CD2TG的区别 |
