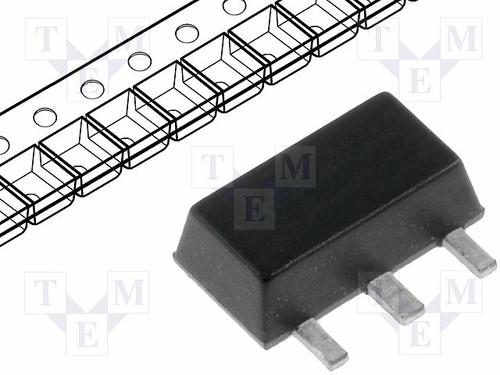

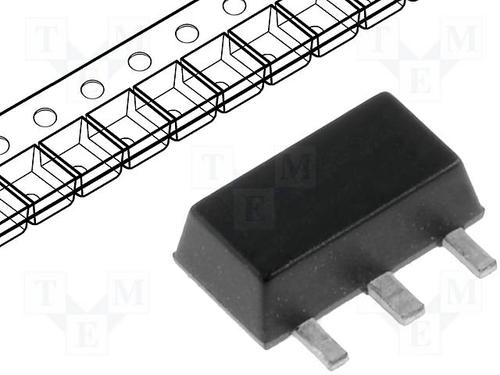

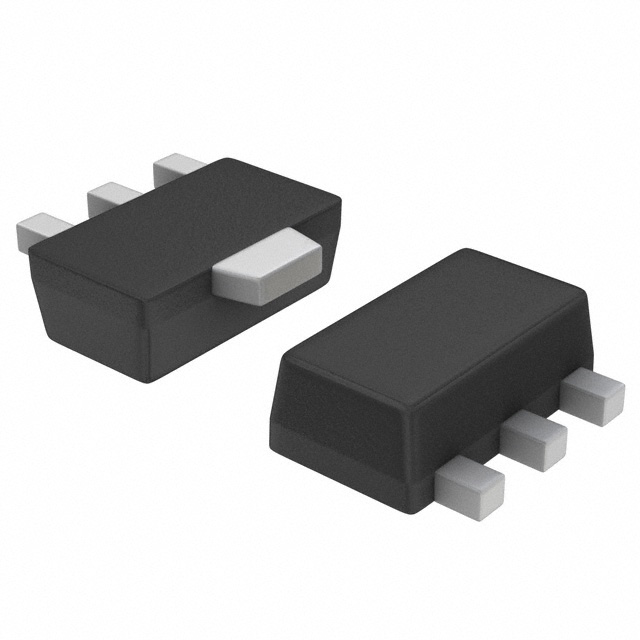

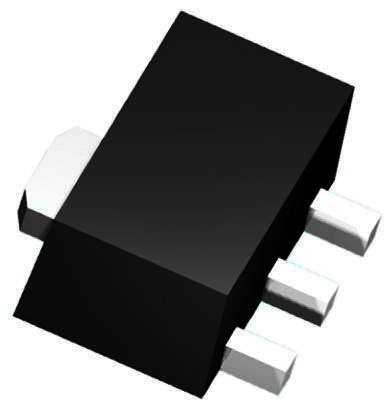

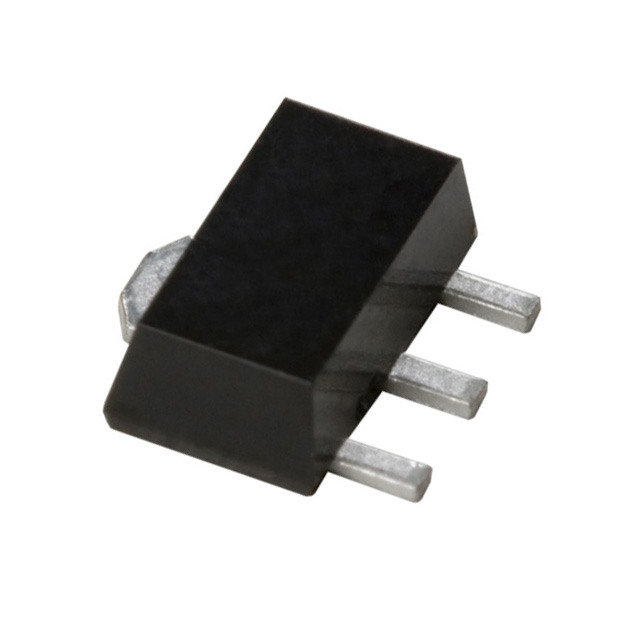

ON SEMICONDUCTOR MC78LC50HT1G 固定电压稳压器, LDO, 6V至12V, 25mV压差, 5V输出, 80mA输出, SOT-89-3
7805 线性稳压器,
ON Semiconductor 的 7805 系列线性电压调节是固定稳压器,可用于各种应用。 正向 7805 稳压器无需外部元件,它们包含了内部热过载保护和电流限制和安全区域补偿。
输出电压 5V
内部短路电流限制
输出晶体管安全区域补偿
提供无铅封装
输出电压容差:2% 和 4%
### 线性稳压器,On Semiconductor
得捷:
IC REG LINEAR 5V 80MA SOT89-3
欧时:
### 7805 线性稳压器,ON SemiconductorON Semiconductor 的 7805 系列线性电压调节是固定稳压器,可用于各种应用。 正向 7805 稳压器无需外部元件,它们包含了内部热过载保护和电流限制和安全区域补偿。输出电压 5V 内部短路电流限制 输出晶体管安全区域补偿 提供无铅封装 输出电压容差:2% 和 4% ### 线性稳压器,On Semiconductor
贸泽:
低压差稳压器 5.0V 80mA CMOS LDO
艾睿:
Keep calm and stay stable by implementing this LDO MC78LC50HT1G linear regulator developed by ON Semiconductor. It has an overall accuracy of ±2.5 %. This device has a maximum power dissipation of 300 mW. Its typical dropout voltage at current is 0.025@1mA V. This voltage regulation device&s;s single output can produce a current up to 0.08Typ A. With a voltage no larger than 12 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 90mV and line regulation of 0.2%/V. Its maximum power dissipation is 300 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 0.038@1mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.
Allied Electronics:
MC78LC50HT1G, Single Voltage Regulator, 100mA 5 V, 2.5%, 4-Pin SOT-89
安富利:
LDO Regulator Pos 5V 0.08A 4-Pin3+Tab SOT-89 T/R
富昌:
MC78LC00 系列 12 V 80 mA 表面贴装 低功耗 稳压器 -SOT-89-3
Chip1Stop:
LDO Regulator Pos 5V 0.08A 4-Pin3+Tab SOT-89 T/R
TME:
Voltage regulator; linear, fixed; 5V; 0.08A; SOT89; SMD; -40÷85°C
Verical:
LDO Regulator Pos 5V 0.08A 4-Pin3+Tab SOT-89 T/R
Newark:
# ON SEMICONDUCTOR MC78LC50HT1G Fixed LDO Voltage Regulator, 6V to 12V, 25mV Dropout, 5Vout, 100mAout, SOT-89-3
力源芯城:
三端正固定电压的稳压器
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 80mA SOT-89-3
DeviceMart:
IC REG LDO 5V .1A SOT89
额定电流 80.0 mA
额定功率 900 mW
输出接口数 1
输入电压DC 12.0V max
输出电压 5 V
输出电流 80 mA
供电电流 3.9 µA
针脚数 3
极性 P-Channel
耗散功率 0.3 W
静态电流 3.6 µA
跌落电压 25 mV
输入电压Max 12 V
输入电压Min 6 V
输出电压Min 5 V
输出电流Max 100 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
精度 ±2.5 %
电源电压 12 V
输入电压 ≤12 V
安装方式 Surface Mount
引脚数 3
封装 SOT-89-3
长度 4.6 mm
宽度 2.6 mm
高度 1.6 mm
封装 SOT-89-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Communications & Networking, 便携式器材, Portable Devices, 电源管理, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC78LC50HT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC78LC50HT1 安森美 | 完全替代 | MC78LC50HT1G和MC78LC50HT1的区别 |
RH5RL50AA-T1 理光 | 功能相似 | MC78LC50HT1G和RH5RL50AA-T1的区别 |
RH5RL50AA-T1-FE 理光 | 功能相似 | MC78LC50HT1G和RH5RL50AA-T1-FE的区别 |
