ON SEMICONDUCTOR MC74ACT574DWR2G 触发器, 三态非反相, 正沿, D, 11 ns, 100 MHz, SOIC, 20 引脚
The flip flop device from is designed specifically to save basic state information within your circuit. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
频率 100 MHz
电源电压DC 4.50V min
无卤素状态 Halogen Free
输出接口数 8
电路数 8
针脚数 20
时钟频率 100 MHz
位数 8
极性 Non-Inverting
输入电容 4.5 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

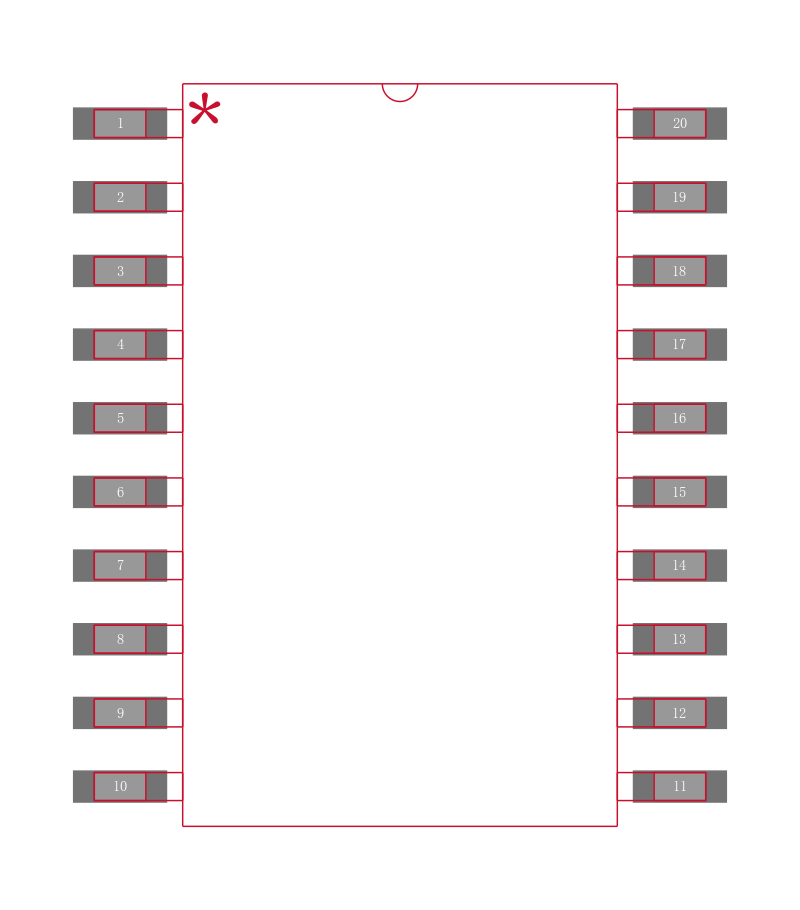

封装 SOIC-20

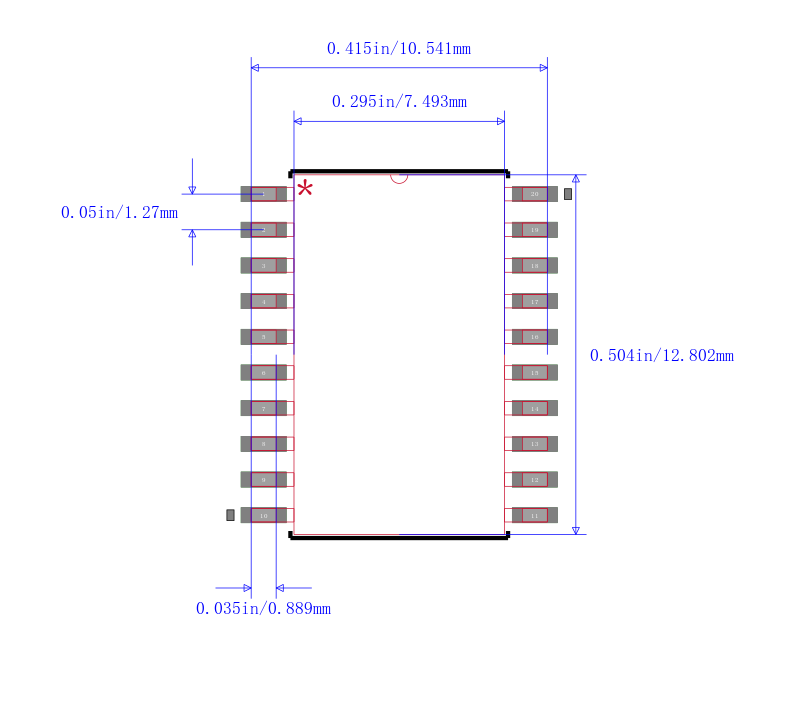

长度 12.95 mm
宽度 7.6 mm
高度 2.4 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74ACT574DWR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74ACT574DWG 安森美 | 完全替代 | MC74ACT574DWR2G和MC74ACT574DWG的区别 |
SN74ACT574DW 德州仪器 | 功能相似 | MC74ACT574DWR2G和SN74ACT574DW的区别 |
SN74ACT574DWR 德州仪器 | 功能相似 | MC74ACT574DWR2G和SN74ACT574DWR的区别 |
