稳压二极管

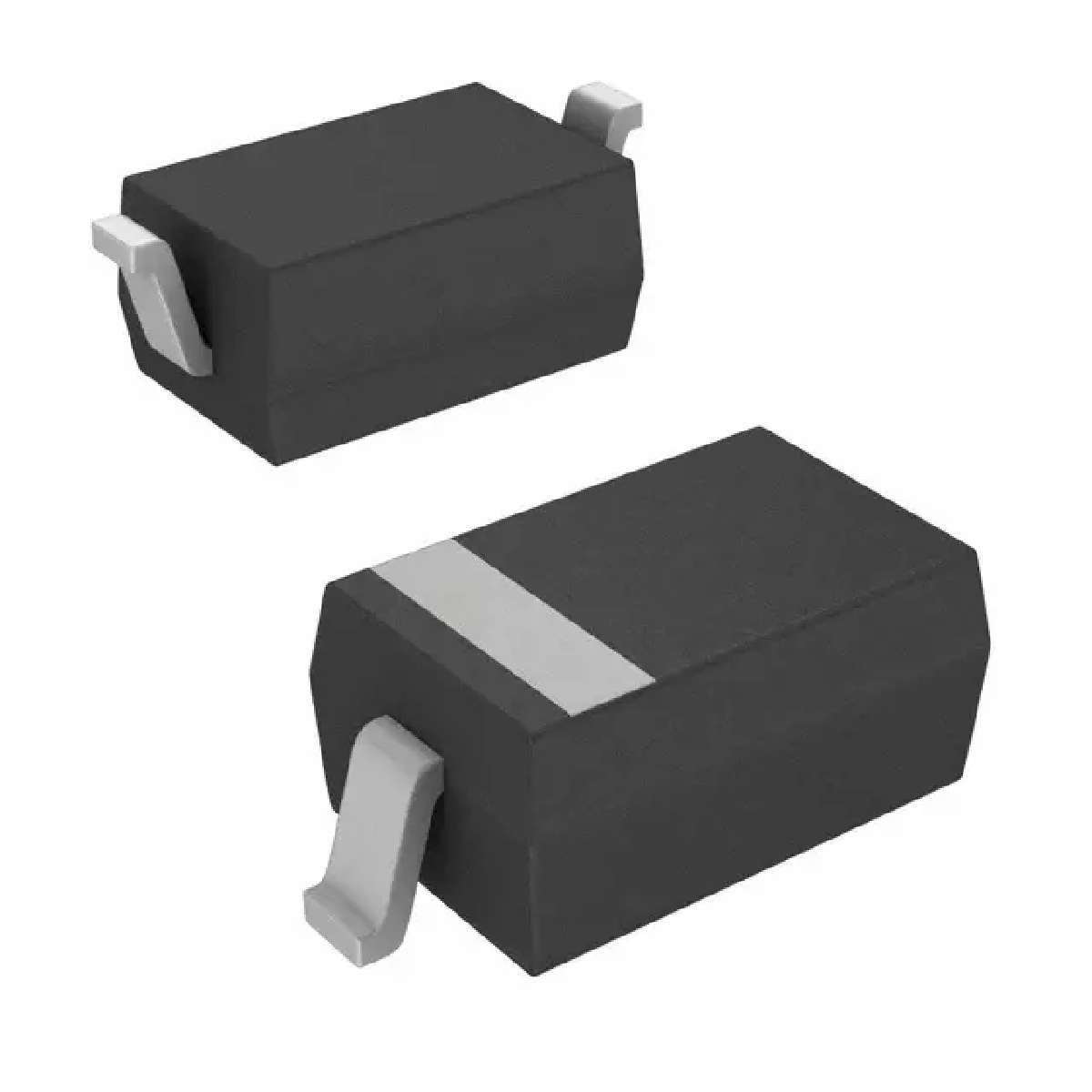

- 齐纳 6.2 V 500 mW ±5% 表面贴装型 SOD-123
得捷:
DIODE ZENER 6.2V 500MW SOD123
立创商城:
6.2V ±5% 500mW
贸泽:
Zener Diodes 500mW 6.2V
艾睿:
This MMSZ5234B-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 20 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 5 μA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C.
Verical:
Zener Diode Single 6.2V 5% 7Ohm 500mW 2-Pin SOD-123 T/R
容差 ±5 %
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 20 mA
稳压值 6.2 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.85 mm
宽度 1.8 mm
高度 1.2 mm
封装 SOD-123-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMSZ5234B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMSZ5234BT1G 安森美 | 类似代替 | MMSZ5234B-TP和MMSZ5234BT1G的区别 |
MMSZ5234B 飞兆/仙童 | 类似代替 | MMSZ5234B-TP和MMSZ5234B的区别 |
MMSZ5234BT3G 安森美 | 类似代替 | MMSZ5234B-TP和MMSZ5234BT3G的区别 |
