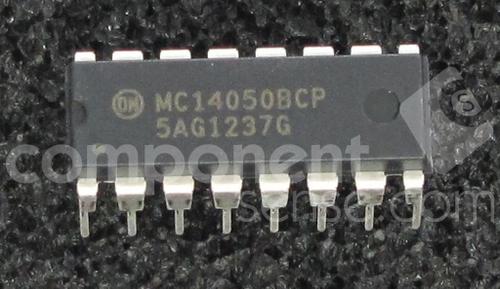

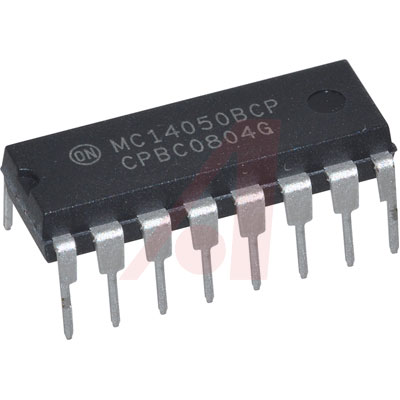

ON SEMICONDUCTOR MC14050BCPG 芯片, 4000系列 CMOS逻辑器件
Leading the input to the transmission line this buffer and line driver by will amplify digital and analog signals. This line driver has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product comes in rail packaging to keep individual parts separated and protected. This non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V. It has 6 channels per chip.
电源电压DC 3.00V min
工作电压 3V ~ 18V
输出接口数 6
供电电流 120 μA
电路数 6
通道数 6

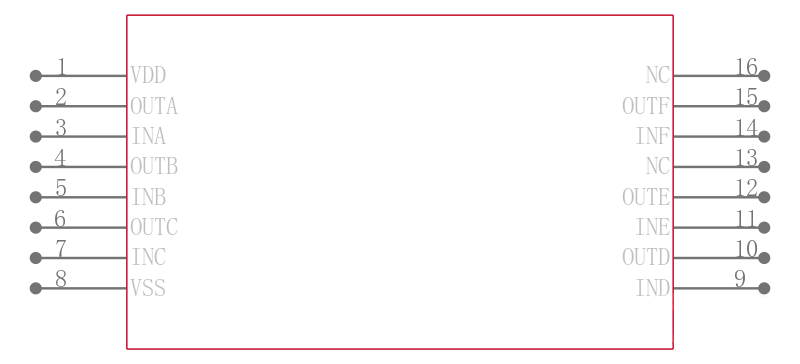

针脚数 16
位数 6
耗散功率 825 mW
逻辑门个数 6
输入数 6
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 825 mW
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 16

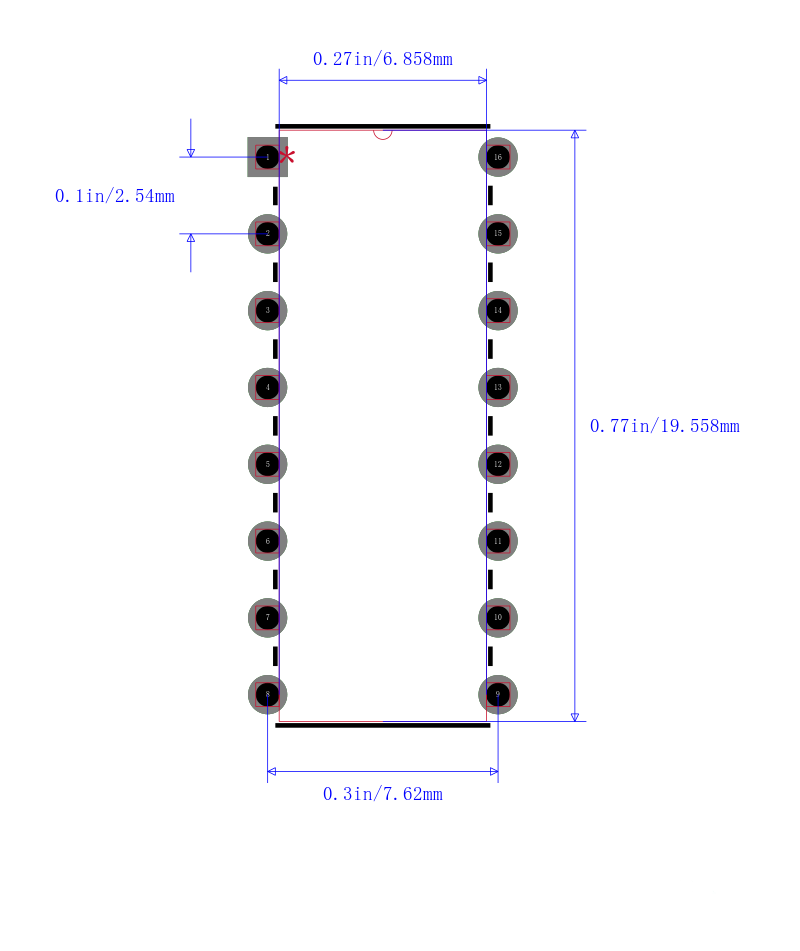

封装 DIP-16
长度 19.55 mm
宽度 6.85 mm
高度 3.43 mm
封装 DIP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC14050BCPG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC14050BDG 安森美 | 类似代替 | MC14050BCPG和MC14050BDG的区别 |
CD4050BE 德州仪器 | 功能相似 | MC14050BCPG和CD4050BE的区别 |
CD4050BD 德州仪器 | 功能相似 | MC14050BCPG和CD4050BD的区别 |
