MMBT5550

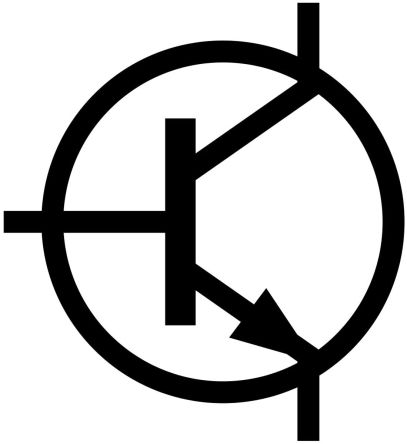

FAIRCHILD SEMICONDUCTOR  MMBT5550  单晶体管 双极, NPN, 140 V, 50 MHz, 225 mW, 600 mA, 60 hFE

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO | 160V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO | 140V 集电极连续输出电流ICCollector CurrentIC | 600mA/0.6A 截止频率fTTranstion FrequencyfT | 50Mhz 直流电流增益hFEDC Current GainhFE | 60~250 管压降VCE（sat）Collector-Emitter Saturation Voltage | 150mV~250mV 耗散功率PcPower Dissipation | 350mW/0.35W Description & Applications | NPN General Purpose Amplifier • This device is designed for general purpose high voltage amplifiers and gas discharge display drivers. 描述与应用 | NPN通用放大器 •本设备是专为通用高电压放大器 和气体放电的显示驱动程序。
