MSP430F2013IRSAT

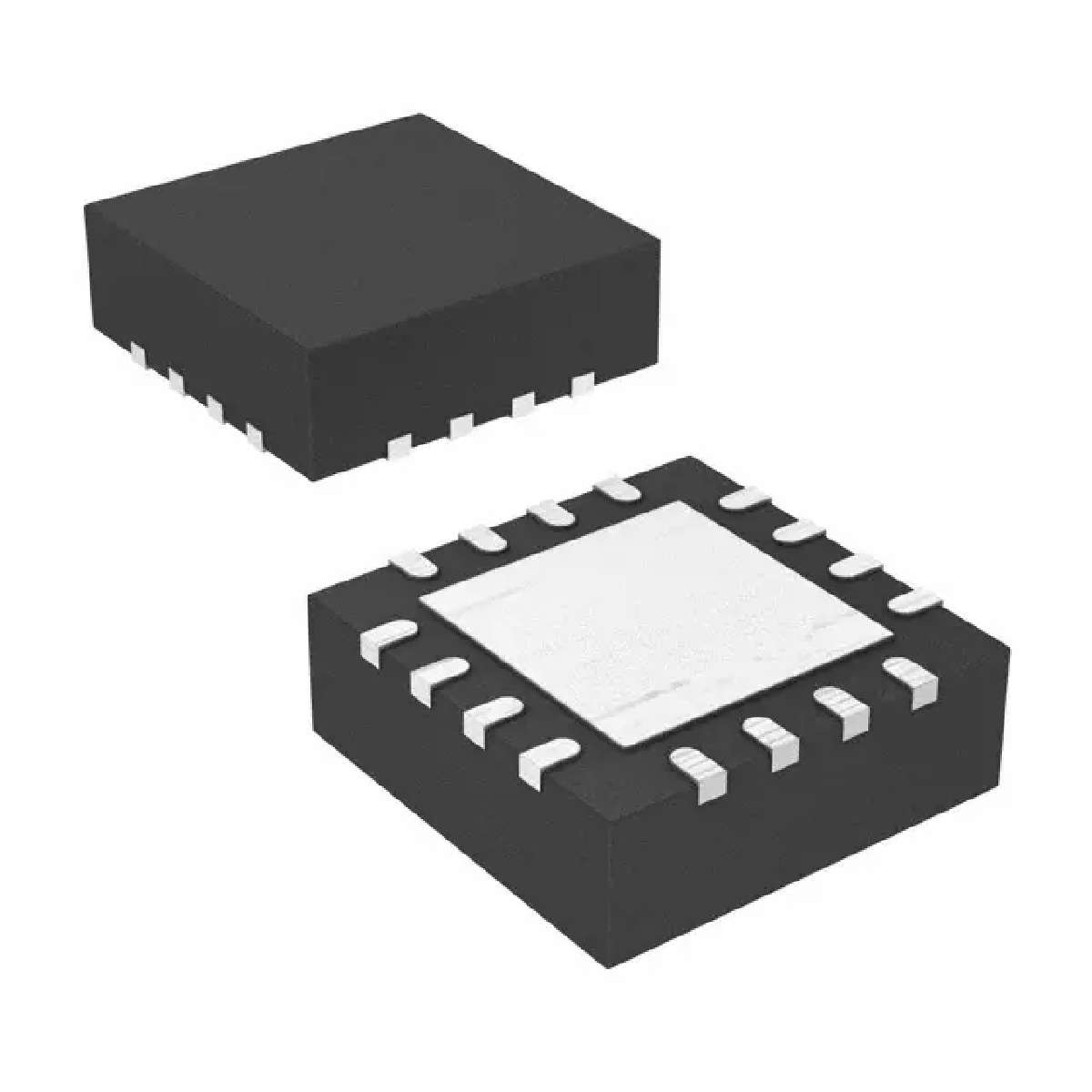

TEXAS INSTRUMENTS  MSP430F2013IRSAT  微控制器, 16位, 混合信号, MSP430F2xx, 16 MHz, 2 KB, 128 Byte, 16 引脚, QFN

The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with 16-bit timer, 16-bit sigma-delta A/D converter and 10 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.

.

16-bit RISC architecture, 62.5ns instruction cycle time

.

Internal frequencies up to 16MHz with four calibrated frequencies to ±1%

.

Internal very-low-power low-frequency oscillator

.

32kHz Crystal

.

External digital clock source

.

16-bit Timer_A with 2 Capture/Compare registers

.

16-bit sigma-delta A/D converter with differential PGA inputs and internal reference

.

Universal serial interface USI supporting SPI and I2C

.

Brownout detector

.

Serial on-board programming

.

No external programming voltage needed

.

Programmable code protection by security fuse

.

On-chip emulation logic with spy-bi-wire interface

.

220µA at 1MHz, 2.2V Active mode AM power consumption
