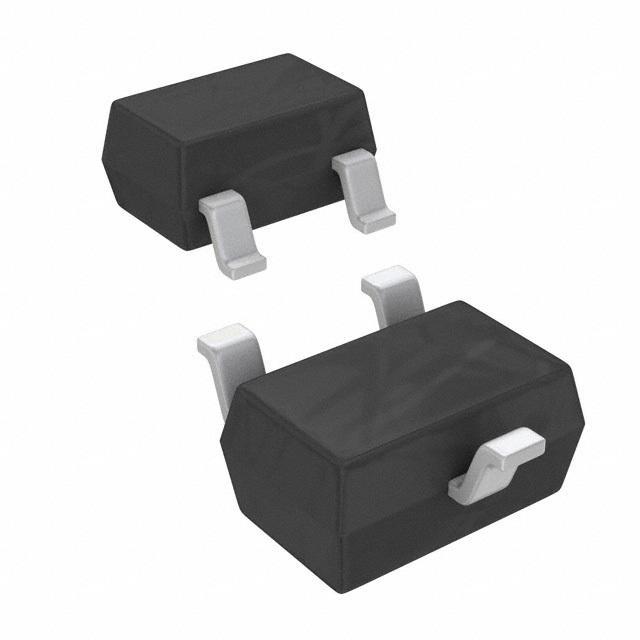

SOT-323 NPN 40V 0.6A
Bipolar BJT Transistor NPN 40V 600mA 250MHz 200mW Surface Mount SOT-323
得捷:
TRANS NPN 40V 0.6A SOT323
艾睿:
Jump-start your electronic circuit design with this versatile NPN MMST4401-TP GP BJT from Micro Commercial Components. This bipolar junction transistor&s;s maximum emitter base voltage is 6 V. Its maximum power dissipation is 200 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 40 V and a maximum emitter base voltage of 6 V.
Chip1Stop:
Trans GP BJT NPN 40V 0.6A 3-Pin SOT-323 T/R
Verical:
Trans GP BJT NPN 40V 0.6A 200mW 3-Pin SOT-323 T/R
DeviceMart:
TRANSISTOR NPN SW 40V SOT323
频率 250 MHz
额定电压DC 40.0 V
额定电流 600 mA
极性 NPN
耗散功率 0.2 W
击穿电压集电极-发射极 40 V
集电极最大允许电流 0.6A
最小电流放大倍数hFE 100 @150mA, 1V
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-323
高度 1 mm
封装 SOT-323
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMST4401-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMST4401-7-F 美台 | 功能相似 | MMST4401-TP和MMST4401-7-F的区别 |
SMMBT4401LT1G 安森美 | 功能相似 | MMST4401-TP和SMMBT4401LT1G的区别 |
LMBT4401LT1G 乐山无线电 | 功能相似 | MMST4401-TP和LMBT4401LT1G的区别 |
