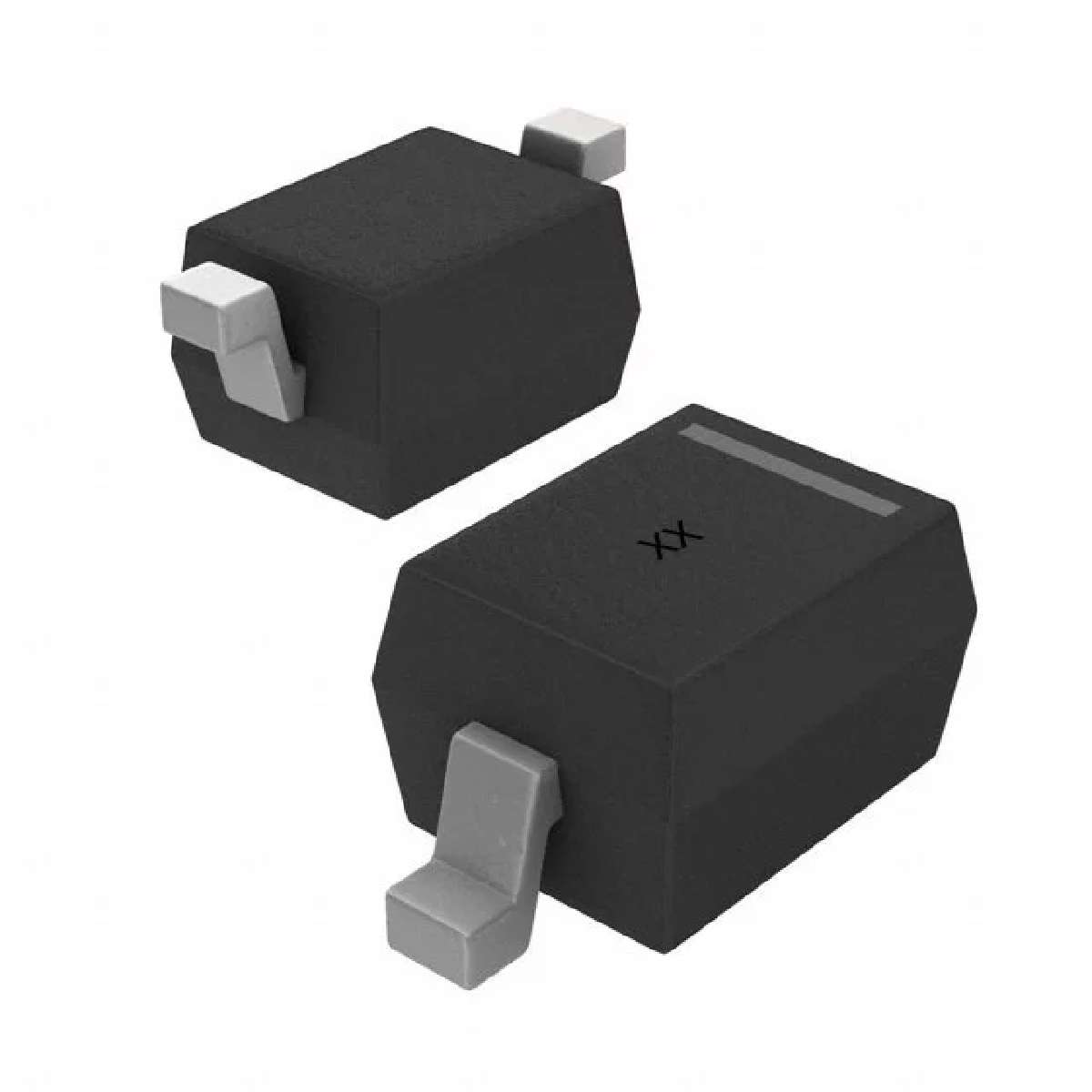

MICRO COMMERCIAL COMPONENTS MMXZ5231B-TP 齐纳二极管, 200mW, 5.1V, SOD-323
This zener diode from is perfect for blocking a voltage. Its test current is 20 mA. Its maximum power dissipation is 200 mW. Its maximum leakage current is 5 μA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This zener device has a nominal voltage of 5.1 V and a voltage tolerance of 5%. It is made in a single configuration.
容差 ±5 %
针脚数 2
正向电压 1.2 V
耗散功率 200 mW
测试电流 20 mA
稳压值 5.1 V
正向电压Max 1.2V @100mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323-2
长度 1.8 mm
宽度 1.35 mm
高度 1 mm
封装 SOD-323-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MMXZ5231B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMXZ5231B 美微科 | 类似代替 | MMXZ5231B-TP和MMXZ5231B的区别 |
