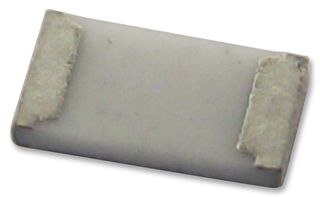

MC01W0805551K

MULTICOMP  MC01W0805551K  片式电阻器, 表面贴装, 厚膜, MC系列, 51 kohm, 150 V, 0805 [2012公制], 100 mW, ± 5%

The MC series current sense resistors are thick film chip resistors. The resistance range includes E96 and E24 decade values from 1ohm to 10Mohm.

.

EIA 0402, 0603, 0805, 1206 chip sizes available

.

Small size and low weight

.

Suitable for both wave and reflow soldering

.

Reduction of assembly costs

.

Maximum working voltage of 50V0402, 0603, 150V0805, 200V1206

.

Available in ±1%, ±2% and ±5% tolerance

.

Power rating of 62.5mW, 100mW and 125mW

.

±400ppm/°C1ohm to 10ohm, ±200ppm/°C11ohm to 100ohm, ±100ppm/°C>100ohm of TCR values

.

Jumpers are available for all sizes

.

Operating temperature range -55°C to +155°C
