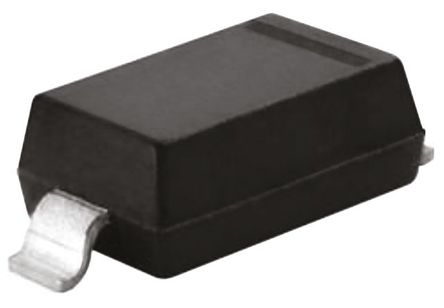

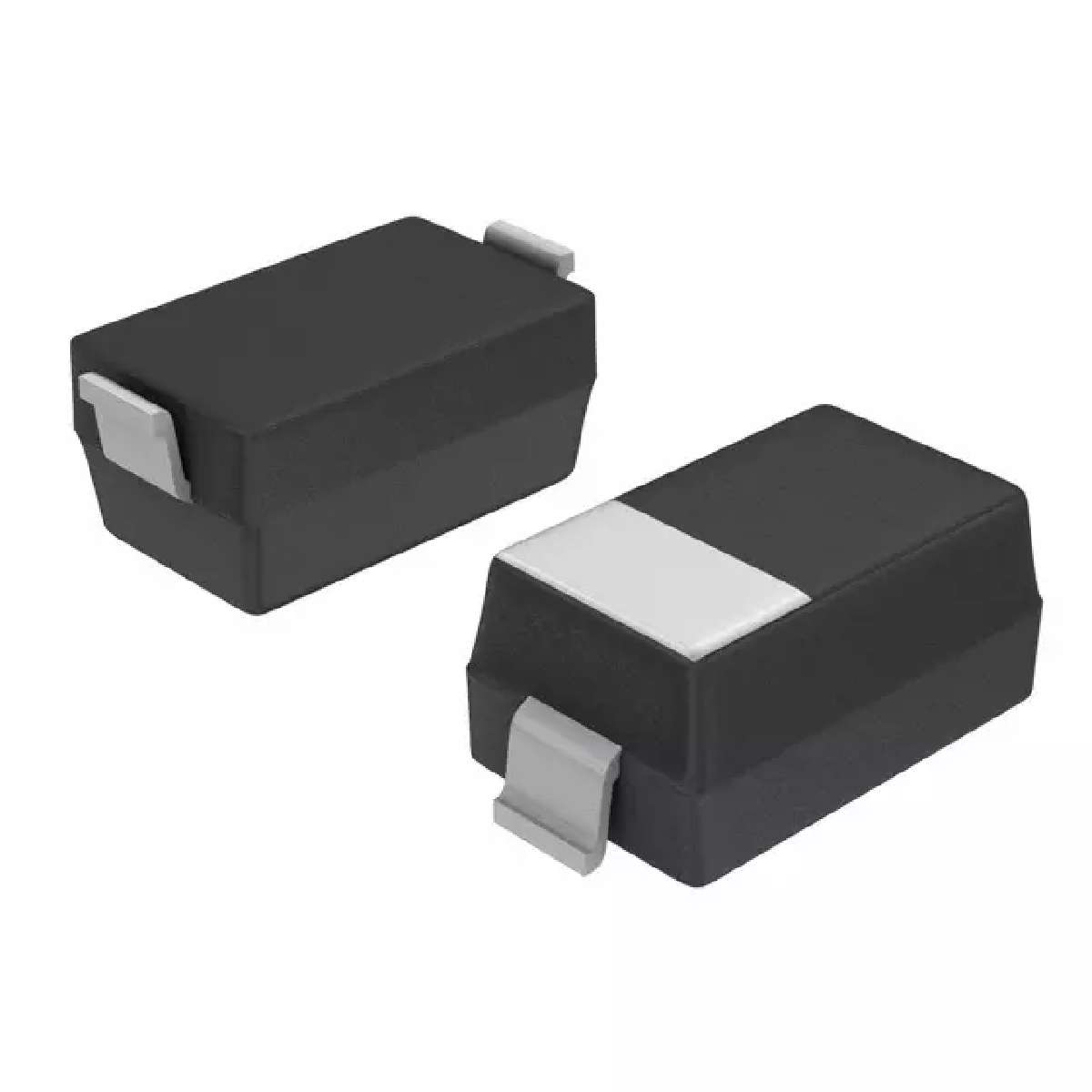

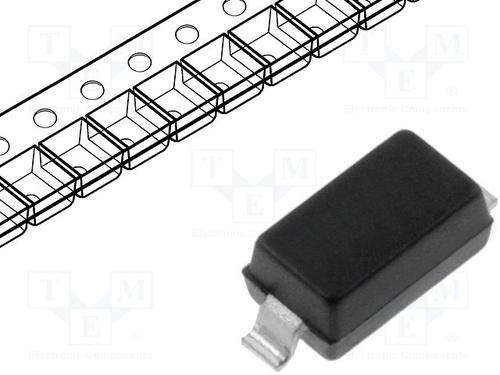

ON SEMICONDUCTOR MMSZ5255BT1G 齐纳二极管
齐纳 500mW,MMSZ52xxxT1G / SZMMSZ52xxxT1G 系列,
表面安装外壳,SOD-123
欧时:
ON Semiconductor MMSZ5255BT1G 单路 齐纳二极管, 28V 5% 500 mW, 2引脚 SOD-123封装
得捷:
DIODE ZENER 28V 500MW SOD123
立创商城:
齐纳二极管 500 mW SOD-123
e络盟:
单管二极管 齐纳, 28 V, 500 mW, SOD-123, 5 %, 2 引脚, 150 °C
艾睿:
Access the reverse breakdown region using a voltage regulator MMSZ5255BT1G zener diode from ON Semiconductor. Its maximum leakage current is 0.1 μA. Its test current is 4.5 mA. Its maximum power dissipation is 500 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a single configuration. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This zener device has a nominal voltage of 28 V and a voltage tolerance of 5%.
Allied Electronics:
MMSZ5255BT1G Zener Diode; 28V 5% 500 mWSMT 2-Pin SOD-123
安富利:
Diode Zener Single 28V 5% 500mW 2-Pin SOD-123 T/R
Chip1Stop:
Diode Zener Single 28V 5% 500mW Automotive 2-Pin SOD-123 T/R
TME:
Diode: Zener; 0.5W; 28V; SMD; reel, tape; SOD123
Verical:
Diode Zener Single 28V 5% 500mW Automotive 2-Pin SOD-123 T/R
Newark:
Zener Single Diode, 28 V, 500 mW, SOD-123, 5 %, 2 Pins, 150 °C
Win Source:
DIODE ZENER 28V 500MW SOD123
额定电压DC 28.0 V
容差 ±5 %
额定功率 500 mW
针脚数 2
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 4.5 mA
稳压值 28 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123
长度 2.84 mm
宽度 1.8 mm
高度 1.25 mm
封装 SOD-123
材质 Plastic
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMSZ5255BT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMSZ5255B 飞兆/仙童 | 完全替代 | MMSZ5255BT1G和MMSZ5255B的区别 |
MMSZ5255BT1 安森美 | 完全替代 | MMSZ5255BT1G和MMSZ5255BT1的区别 |
MMSZ5255BT3 安森美 | 完全替代 | MMSZ5255BT1G和MMSZ5255BT3的区别 |
