混合信号微控制器 MIXED SIGNAL MICROCONTROLLER
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6 µs.
The MSP430x41x series are microcontroller configurations with one or two built-in 16-bit timers, a comparator, 96 LCD segment drive capability, and 48 I/O pins.
Typical applications include sensor systems that capture analog signals, convert them to digital values, and process the data and transmit them to a host system. The comparator and timer make the configurations ideal for industrial meters, counter applications, handheld meters, etc.
频率 8.00 MHz
电源电压DC 3.30 V, 3.60 V max
时钟频率 8.00 MHz
RAM大小 256 x 8
位数 16
FLASH内存容量 4 KB
I/O引脚数 48
存取时间 8.00 µs
内核架构 MSP430
FRAM内存容量 0 B
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 64

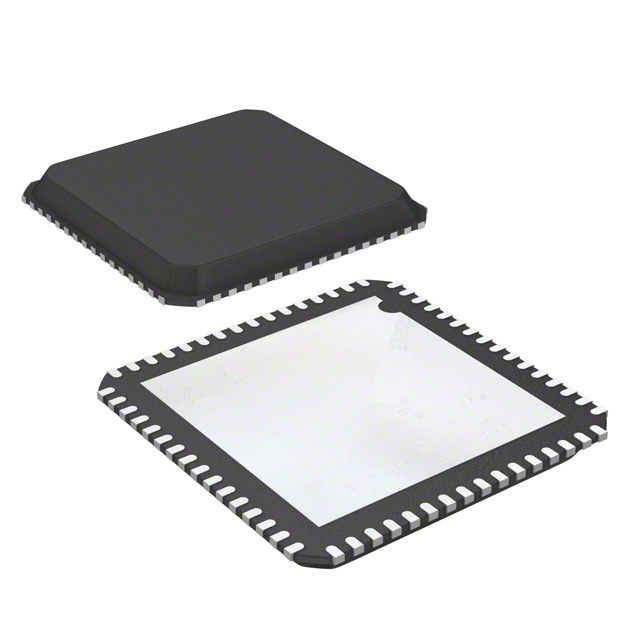

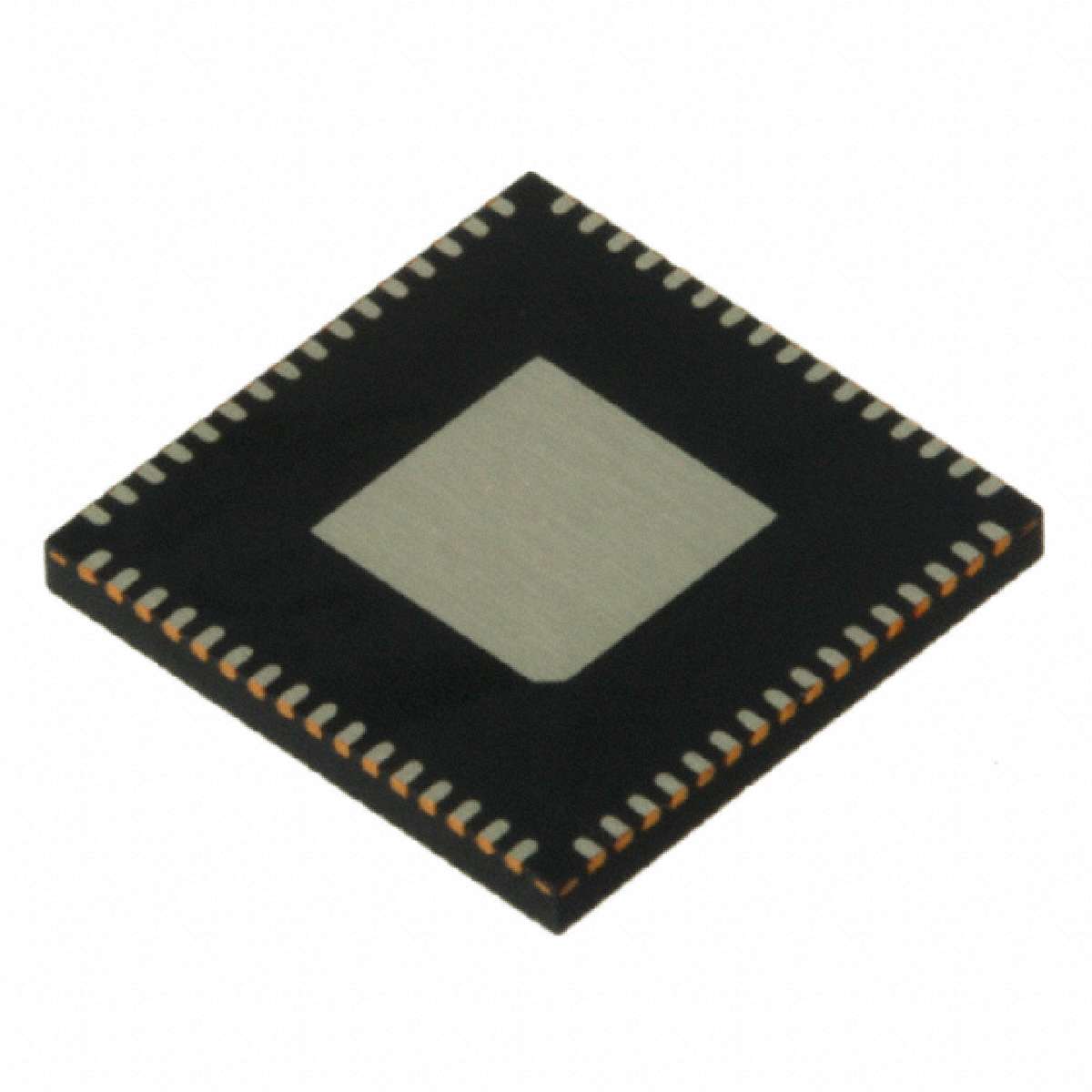

封装 VQFN-64
长度 9 mm
宽度 9 mm
高度 0.88 mm
封装 VQFN-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430F412IRTDT TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F412IRTDR 德州仪器 | 完全替代 | MSP430F412IRTDT和MSP430F412IRTDR的区别 |
MSP430F413IRTDT 德州仪器 | 类似代替 | MSP430F412IRTDT和MSP430F413IRTDT的区别 |
MSP430F415IRTDT 德州仪器 | 类似代替 | MSP430F412IRTDT和MSP430F415IRTDT的区别 |
