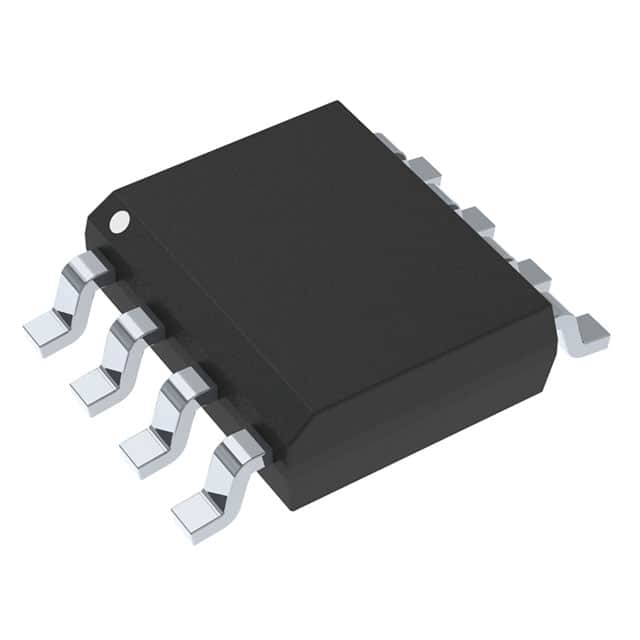

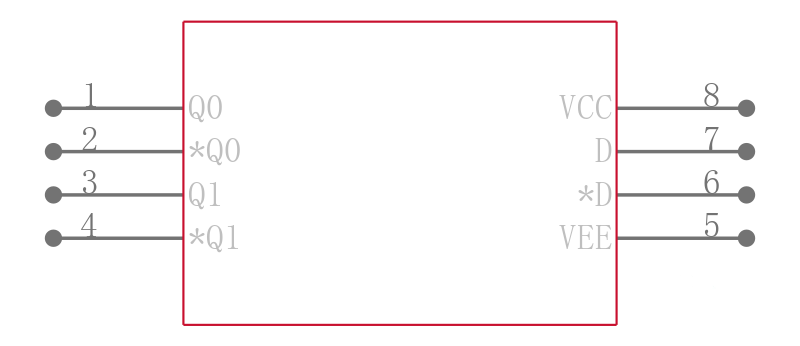

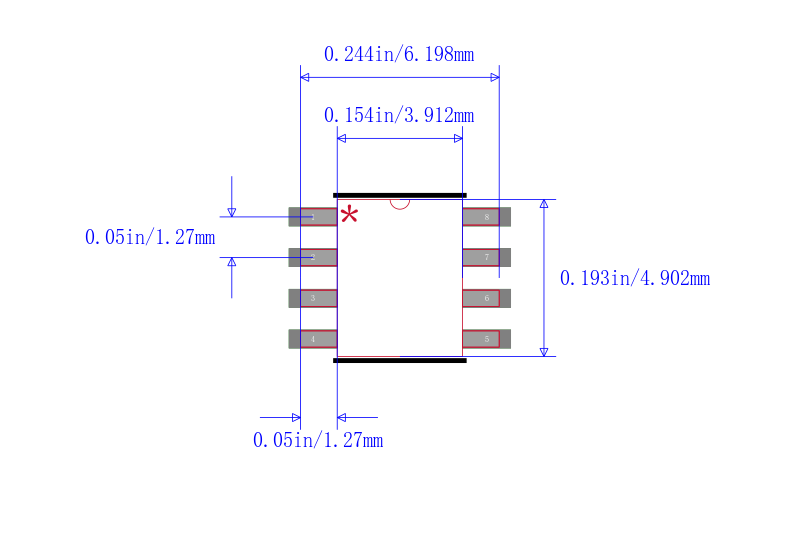

MC100LVEL11DR2G

3.3V ECL 1 ： 2差分扇出缓冲器 3.3V ECL 1:2 Differential Fanout Buffer

The MC100LVEL11 is a differential 1:2 fanout buffer. The device is functionally similar to the E111 device but with higher performance capabilities. Having within-device skews and output transition times significantly improved over the E111, the LVEL11 is ideally suited for those applications which require the ultimate in AC performance. The differential inputs of the LVEL11 employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open pulled to V

Features

---

 |

.

330 ps Propagation Delay

.

5 ps Skew Between Outputs

.

High Bandwidth Output Transitions

.

ESD Protection: >4 KV HBM, >200 V MM

.

The 100 Series Contains Temperature Compensation

.

PECL Mode Operating Range: VCC= 3.0 V to 3.8 V with VEE= 0 V

.

NECL Mode Operating Range: VCC= 0 V with VEE = -3.0 V to -3.8 V

.

Internal Input Pulldown Resistors

.

Q Output will Default LOW with Inputs Open or at VEE

.

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

.

Moisture Sensitivity Level 1

For Additional Information, see Application Note AND8003/D

.

Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34

.

Transistor Count = 63 devices
