MAX452CSA+

MAX452CSA+图片1
MAX452CSA+图片2
MAX452CSA+图片3
MAX452CSA+图片4
MAX452CSA+图片5
MAX452CSA+图片6

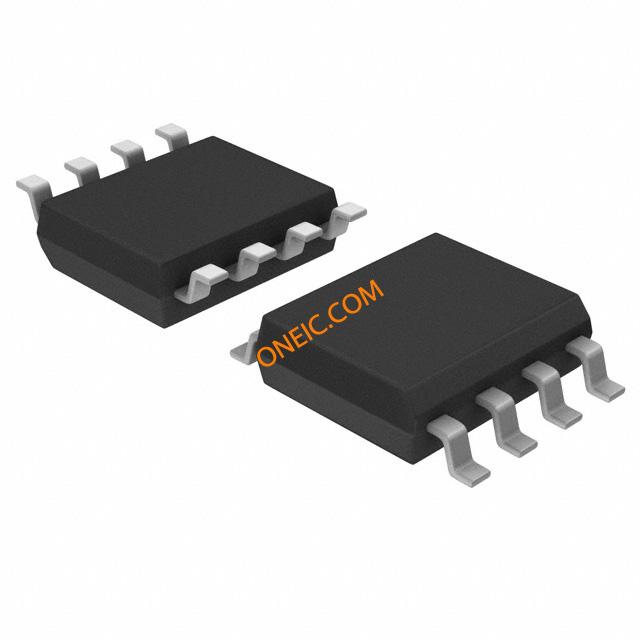

MAX452CSA+图片7
MAX452CSA+图片8
MAX452CSA+图片9
MAX452CSA+概述

视频放大器, 1 放大器, 50 MHz, 300 V/µs, 0 °C, 70 °C, 20 mA

The from Products is a CMOS video multiplexer/amplifier in 8 pin NSOIC package. This is a unity gain stable, 50MHz video amplifier capable of driving a 75ohm load directly. Optimised for video applications this amplifier will directly drive 150 ohm load to ±2V and will swing ±1V into 75ohm load. Amplifier is unit gain stable do not require external frequency compensation components. Typically used at video signal multiplexing, 75 ohm cable drivers, driving flash converters and video cross point switches.

.
Supply voltage of ±4.5V to ±5.5V
.
Operating temperature range from 0°C to 70°C
.
Unity gain bandwidth of 50MHz typ
.
No frequency compensation required
.
Low power operation of 250mW typ
.
2mV input offset voltage, 20µV/°C offset voltage drift
.
Low bias current of 10pA typ and 10nA max, directly drive 75ohm cable
.
300V/µs slew rate
.
80dB common mode rejection ration
.
66dB power supply rejection ration
MAX452CSA+中文资料参数规格
技术参数

输出电流 20 mA

供电电流 25 mA

电路数 1

针脚数 8

带宽 50 MHz

转换速率 300 V/μs

工作温度Max 70 ℃

工作温度Min 0 ℃

3dB带宽 50 MHz

增益带宽 50 MHz

耗散功率Max 320 mW

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Unknown

包装方式 Tube

制造应用 电压反馈, 信号处理

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

MAX452CSA+引脚图与封装图
MAX452CSA+引脚图
MAX452CSA+封装图
MAX452CSA+封装焊盘图
在线购买MAX452CSA+
型号: MAX452CSA+
描述:视频放大器, 1 放大器, 50 MHz, 300 V/µs, 0 °C, 70 °C, 20 mA
替代型号MAX452CSA+
型号/品牌 代替类型 替代型号对比

MAX452CSA+

Maxim Integrated 美信

当前型号

当前型号

MAX452CSA

美信

类似代替

MAX452CSA+和MAX452CSA的区别

MAX452CSA-T

美信

类似代替

MAX452CSA+和MAX452CSA-T的区别
