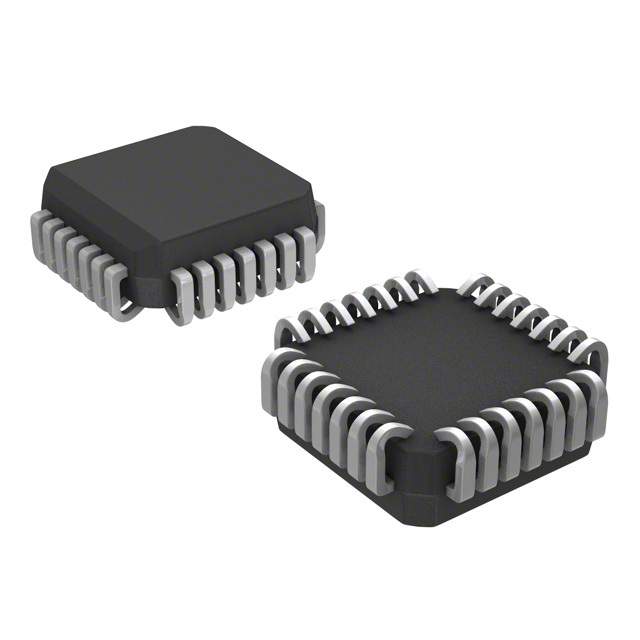

MC10E111FNG图片1
MC10E111FNG图片2
MC10E111FNG图片3
MC10E111FNG图片4
MC10E111FNG图片5
MC10E111FNG图片6
MC10E111FNG图片7
MC10E111FNG图片8
MC10E111FNG图片9
MC10E111FNG概述

MC10E111 系列 800 MHz 5.7 V ECL 1:9 差分 时钟驱动器 - PLCC-28

The MC10E/100E111 is a low skew 1-to-9 differential driver, designed with clock distribution in mind. It accepts one signal input, which can be either differential or else single-ended if the V output is used. The signal is fanned out to 9 identical differential outputs. An enable input is also provided. A HIGH disables the device by forcing all Q outputs LOW and all Qbar outputs HIGH. The device is specifically designed, modeled and produced with low skew as the key goal. Optimal design and layout serve to minimize gate to gate skew within-device, and empirical modeling is used to determine process control limits that ensure consistent tpd distributions from lot to lot. The net result is a dependable, guaranteed low skew device. To ensure that the tight skew specification is met it is necessary that both sides of the differential output are terminated into 50 , even if only one side is being used. In most applications, all nine differential pairs will be used and therefore terminated. In the case where fewer than nine pairs are used, it is necessary to terminate at least the output pairs on the same package side i.e. sharing the same V as the pairs being used on that side, in order to maintain minimum skew. Failure to do this will result in small degradations of propagation delay on the order of 10-20 ps of the outputs being used which, while not being catastrophic to most designs, will mean a loss of skew margin. pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V as a switching reference voltage. V may also rebias AC coupled inputs. When used, decouple V via a 0.01 F capacitor and limit current sourcing or sinking to 0.5 mA. When not used, V The 100 Series contains temperature

Features

---

 |

.
Guaranteed Skew Spec
.
Differential Design
.
VBB Output
.
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V

with VEE = 0 V

.
NECL Mode Operating Range: VCC = 0 V

with VEE = -4.2 V to -5.7 V

.
Internal Input Pulldown Resistors
.
ESD Protection: > 3 KV HBM
.
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
.
Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D
.
Flammability Rating: UL-94 code V-0 @ 1/8 inch, Oxygen Index 28 to 34
.
Transistor Count = 178 devices
.
Pb-Free Packages are Available
MC10E111FNG中文资料参数规格
技术参数

频率 800 MHz

电源电压DC 4.20V min

无卤素状态 Halogen Free

输出接口数 9

供电电流 42.0 mA

电路数 1

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.2V ~ 5.7V

封装参数

安装方式 Surface Mount

引脚数 28

封装 PLCC-28

外形尺寸

宽度 11.58 mm

封装 PLCC-28

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

MC10E111FNG引脚图与封装图
MC10E111FNG引脚图
MC10E111FNG封装图
MC10E111FNG封装焊盘图
在线购买MC10E111FNG
型号: MC10E111FNG
描述:MC10E111 系列 800 MHz 5.7 V ECL 1:9 差分 时钟驱动器 - PLCC-28
替代型号MC10E111FNG
型号/品牌 代替类型 替代型号对比

MC10E111FNG

ON Semiconductor 安森美

当前型号

当前型号

MC10E111FNR2G

安森美

类似代替

MC10E111FNG和MC10E111FNR2G的区别

MC10E111FN

安森美

类似代替

MC10E111FNG和MC10E111FN的区别

MC10E411FNG

安森美

类似代替

MC10E111FNG和MC10E411FNG的区别
