MSP430F1222IPW

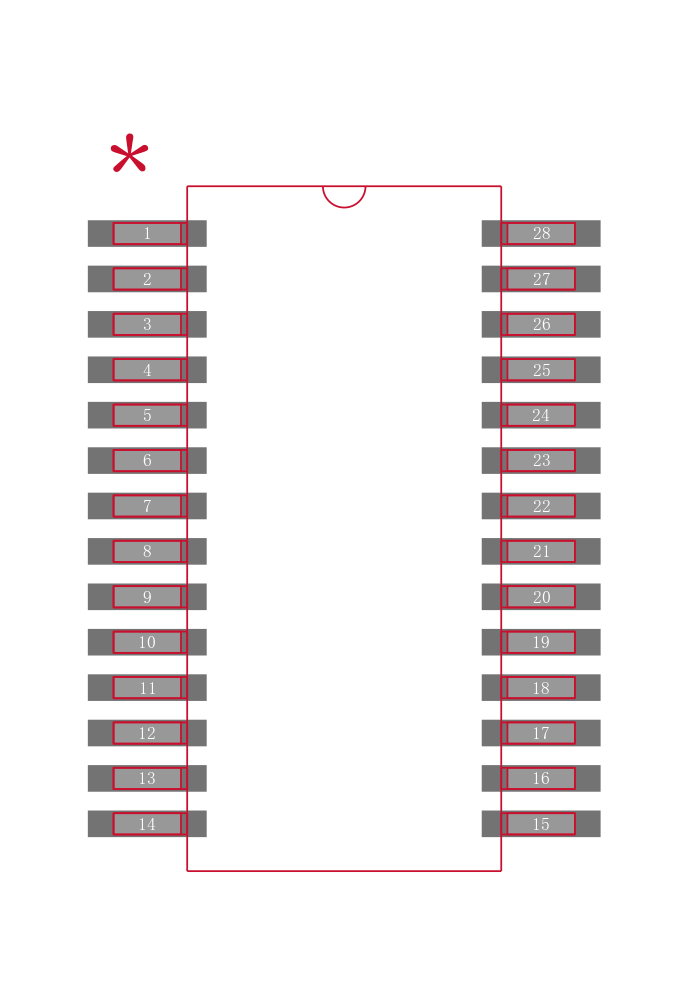

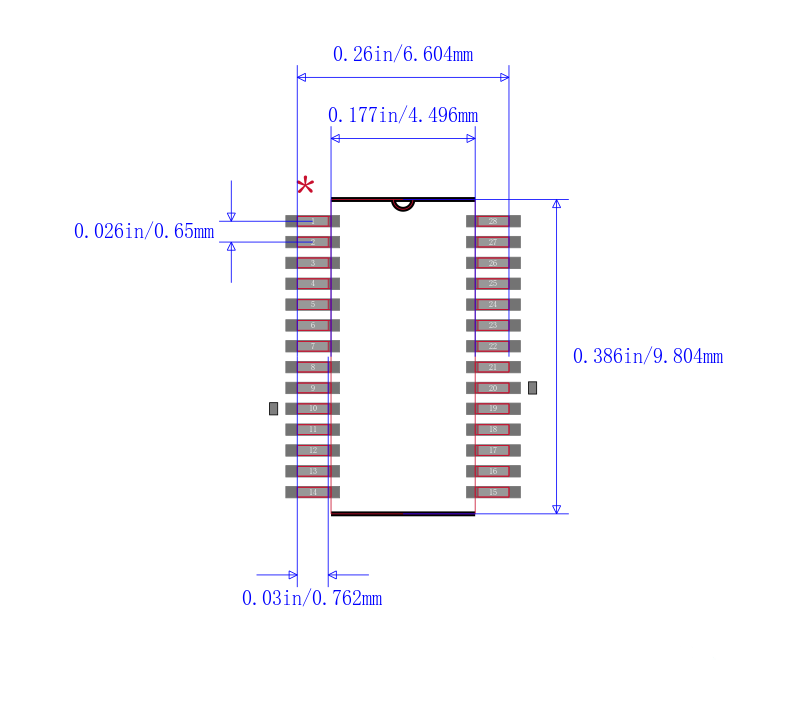

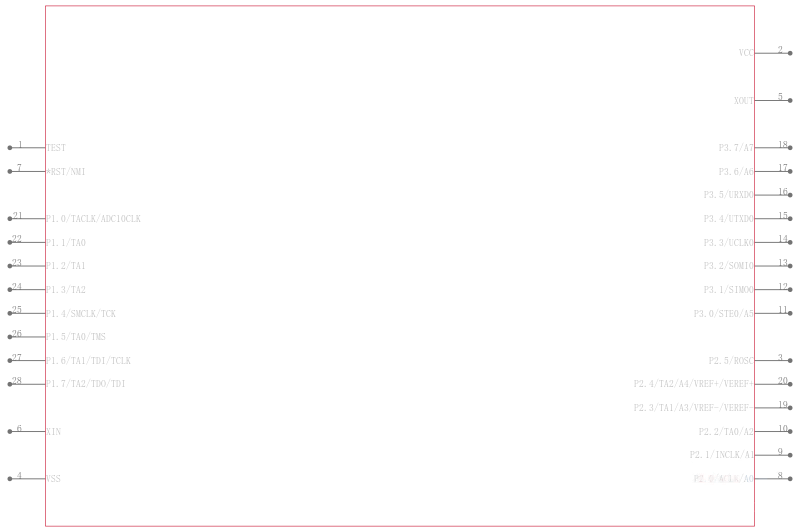

TEXAS INSTRUMENTS  MSP430F1222IPW  微控制器, 16位, 混合信号, MSP430F1xx, 8 MHz, 4 KB, 256 Byte, 28 引脚, TSSOP

The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6µs. The device configurations with 16-bit timer, 10-bit A/D converter with integrated reference and data transfer controller DTC and 22 general-purpose I/O pins. This device operates at a maximum frequency of 8MHz.

.

16-bit RISC architecture, 125ns instruction cycle time

.

Various internal resistors

.

Single external resistor

.

32kHz Crystal

.

High-frequency crystal

.

Resonator clock

.

External clock source

.

16-bit Timer_A with three Capture/Compare registers

.

10-bit 200ksps ADC with internal reference, sample-and-hold, autoscan and data transfer controller

.

Serial on-board programming

.

No external programming voltage needed

.

Programmable code protection by security fuse

.

Supply voltage brownout protection

.

Serial communication interface USART with software-selectable asynchronous UART or Synchronous SPI

.

200µA at 1MHz, 2.2V Active mode AM power consumption
