混合信号微控制器 MIXED SIGNAL MICROCONTROLLER
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows the device to wake up from low-power modes to active mode in less than 5 µs.
The MSP430F5310, MSP430F5309, and MSP430F5308 devices are microcontroller configurations with a 3.3-V LDO, four 16-bit timers, a high-performance 10-bit analog-to-digital converter ADC, two universal serial communication interfaces USCIs, a hardware multiplier, DMA, a real-time clock RTC module with alarm capabilities, and 31 or 47 I/O pins.
The MSP430F5304 device is a configuration with a 3.3-V LDO, four 16-bit timers, a high-performance 10-bit ADC, two USCIs, a hardware multiplier, DMA, an RTC module with alarm capabilities, and 31 I/O pins.
Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, and hand-held meters.
频率 25 MHz
时钟频率 25.0 MHz
RAM大小 6K x 8
位数 16
FLASH内存容量 32 KB
UART数量 2
模数转换数ADC 1
FRAM内存容量 0 B
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 80

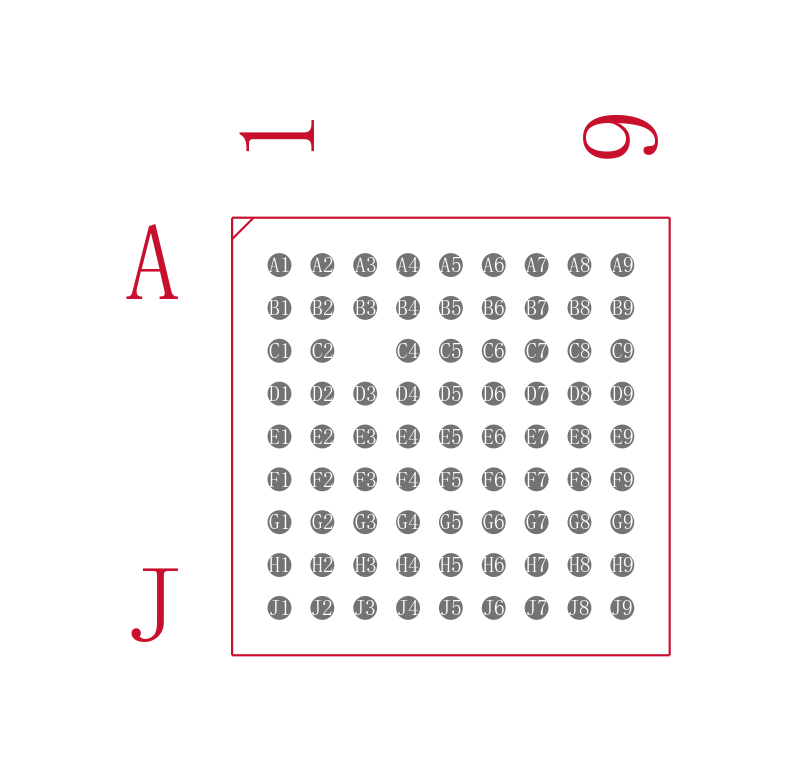

封装 BGA-80

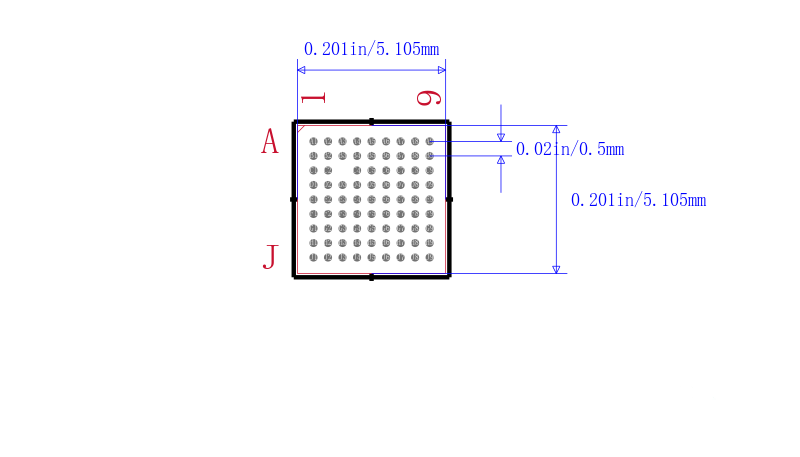

长度 5.1 mm
宽度 5.1 mm
高度 0.77 mm
封装 BGA-80
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430F5310IZQER TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F5309IZQE 德州仪器 | 类似代替 | MSP430F5310IZQER和MSP430F5309IZQE的区别 |
MSP430F5310IZQE 德州仪器 | 类似代替 | MSP430F5310IZQER和MSP430F5310IZQE的区别 |
MSP430F5308IZQER 德州仪器 | 类似代替 | MSP430F5310IZQER和MSP430F5308IZQER的区别 |
