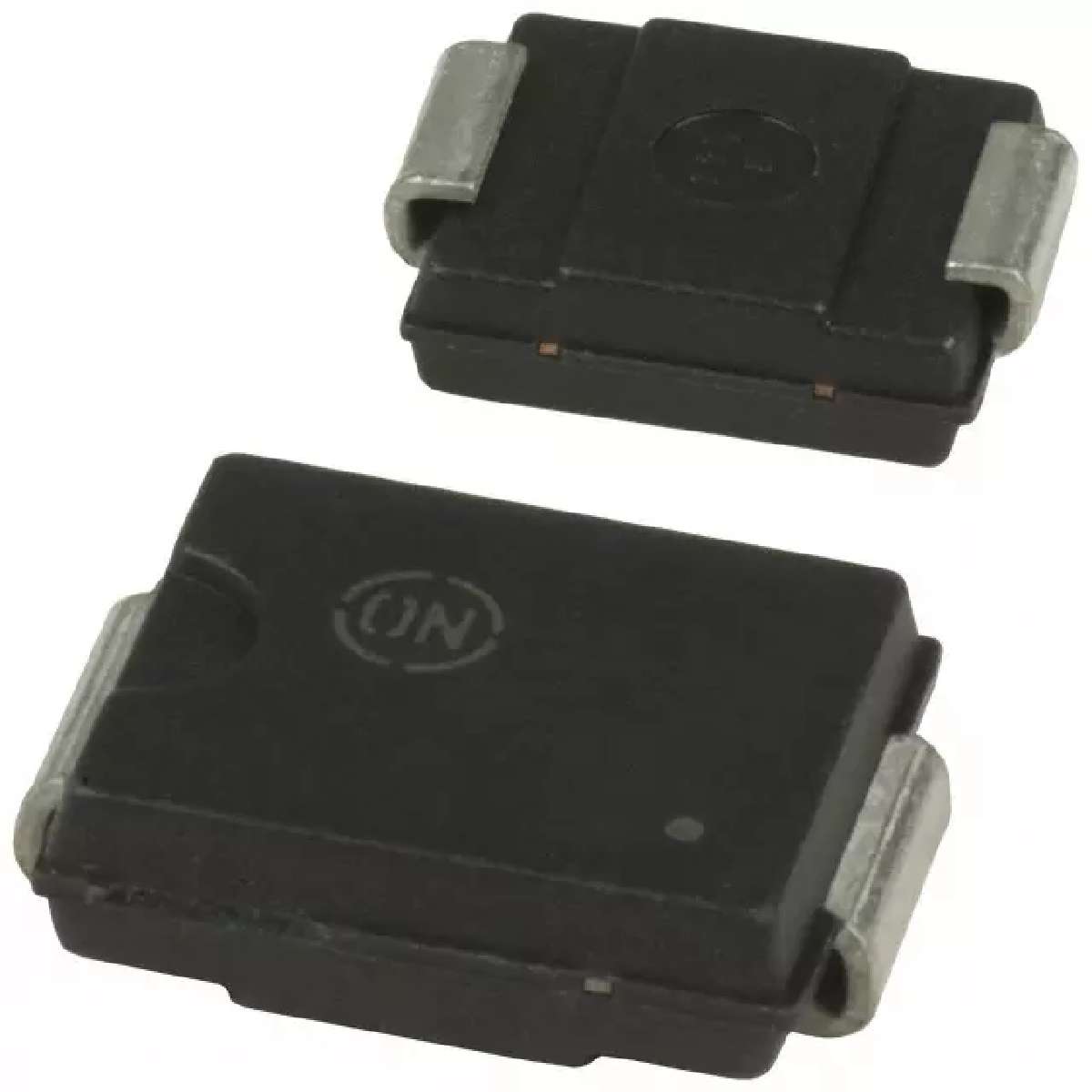

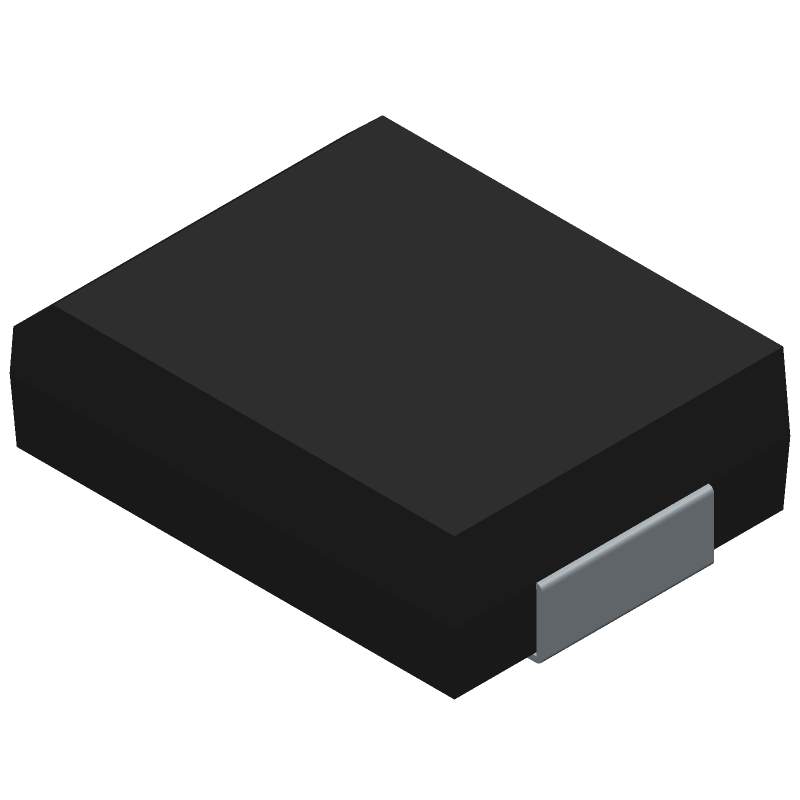

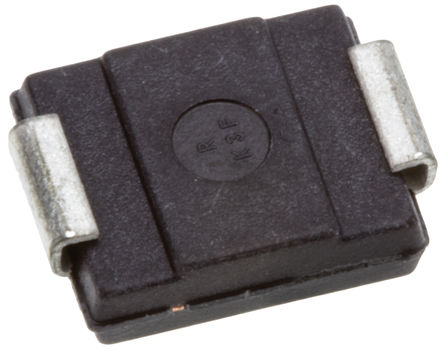

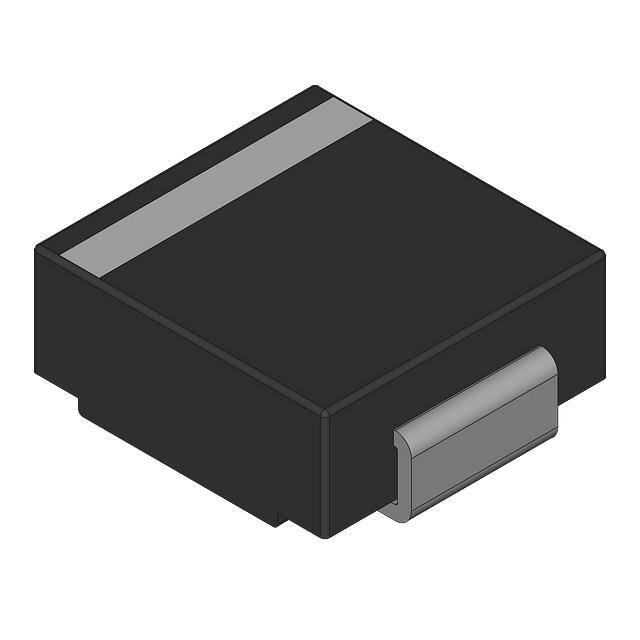

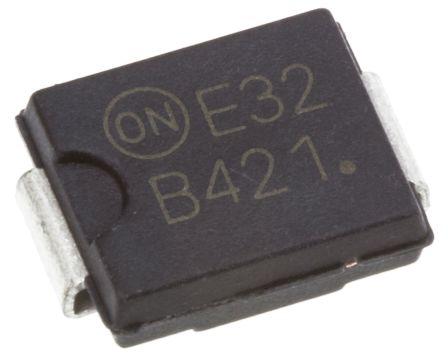

ON SEMICONDUCTOR MBRS4201T3G 肖特基整流器, 单, 200 V, 4 A, DO-214AB, 2 引脚, 860 mV
反向电压VrReverse Voltage| 200V \---|--- 平均整流电流IoAVerage Rectified Current| 4A 最大正向压降VFForward VoltageVf | 860mV/0.86V 最大耗散功率PdPower dissipation| Description & Applications| 200V, 4A Schottky Fast Soft−Recovery Power Rectifier SMC Power Surface Mount Package • Lower Forward Voltage than any Ultrafast Rectifier: VF < 0.61 V at 150°C • Fast Switching Speed: Reverse Recovery Time tRR < 35 ns • Soft Recovery Characteristics: Softness Factor tb/ta 1 • Highly Stable Over Temperature • Engine and Convenience Control Systems • Motor Controls • Battery Chargers and Switching Power Supplieskage is Available 描述与应用| 200V,4A肖特基 快速软恢复 电力整流器 SMC功率表面贴装封装 •更低的正向电压比任何超快整流器: VF<0.61 V,在150℃ •开关速度快:反向恢复时间(trr)小于35 ns •软恢复特性:柔软因子(TB / TA)1 •高度稳定的温度 •发动机和便利控制系统 •电机控制
额定电压DC 200 V
额定电流 4.00 A
无卤素状态 Halogen Free
输出电流 ≤4.00 A
针脚数 2
正向电压 860mV @4A
极性 Standard
热阻 11℃/W RθJL
反向恢复时间 35 ns
正向电流 4 A
最大正向浪涌电流(Ifsm) 100 A
正向电压Max 860 mV
正向电流Max 4 A
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 6.86 mm
宽度 5.84 mm
高度 2.13 mm
封装 DO-214AB
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电机驱动与控制, Power Management, Motor Drive & Control, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBRS4201T3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBRS4201T3 安森美 | 完全替代 | MBRS4201T3G和MBRS4201T3的区别 |
MBRS4201PT3G 安森美 | 完全替代 | MBRS4201T3G和MBRS4201PT3G的区别 |
MURS320T3G 安森美 | 类似代替 | MBRS4201T3G和MURS320T3G的区别 |
