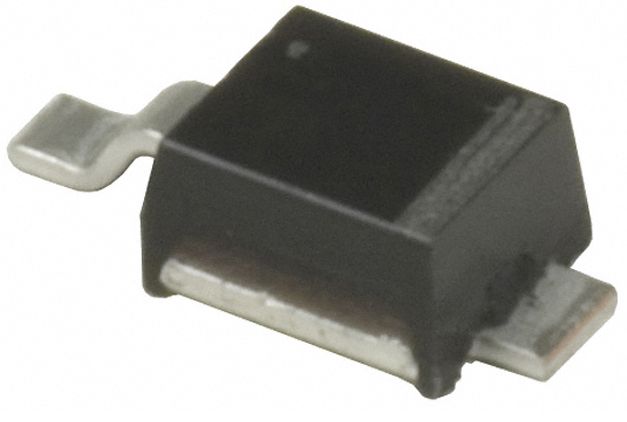

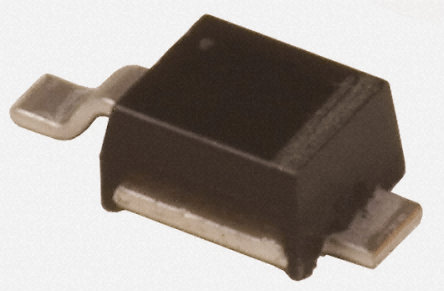

ON SEMICONDUCTOR MBRM110LT1G 肖特基整流器, 单, 10 V, 1 A, DO-216AA, 2 引脚, 365 mV
肖特基势垒,1A 至 2A,
### 标准
带 NSV-、SBR- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
立创商城:
MBRM110LT1G
得捷:
DIODE SCHOTTKY 10V 1A POWERMITE
欧时:
ON Semiconductor 二极管 MBRM110LT1G 肖特基, Io=2A, Vrev=10V, 2引脚 Powermite封装
贸泽:
肖特基二极管与整流器 1A 10V Low Vf
艾睿:
Converting from AC to DC is simple when using a Schottky diode MBRM110LT1G rectifier from ON Semiconductor. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 1 A. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C. It is made in a single configuration.
Allied Electronics:
ON Semi MBRM110LT1G, SMT Schottky Diode, 10V 2A, 2-Pin Powermite
安富利:
Diode Schottky 10V 1A 2-Pin1+Tab Power Mite T/R
Chip1Stop:
Diode Schottky 10V 1A Automotive 2-Pin1+Tab Power Mite T/R
Verical:
Diode Schottky 10V 1A Automotive 2-Pin1+Tab Power Mite T/R
Newark:
# ON SEMICONDUCTOR MBRM110LT1G Schottky Rectifier, 10 V, 1 A, Single, DO-216AA, 2 Pins, 365 mV
Win Source:
DIODE SCHOTTKY 10V 1A POWERMITE
额定电压DC 10.0 V
额定电流 1.00 A
无卤素状态 Halogen Free
输出电流 ≤1.00 A
针脚数 2
正向电压 365mV @1A
极性 Standard
热阻 23℃/W RθJL
反向恢复时间 35 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 50 A
正向电压Max 365 mV
正向电流Max 2 A
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-216AA
长度 2.18 mm
宽度 2.05 mm
高度 1.15 mm
封装 DO-216AA
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 电源管理, 通信与网络, Portable Devices, Computers & Computer Peripherals, 计算机和计算机周边, Consumer Electronics, 消费电子产品, 便携式器材, Communications & Networking, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBRM110LT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBRM110LT1 安森美 | 完全替代 | MBRM110LT1G和MBRM110LT1的区别 |
MBRM110LT3 安森美 | 完全替代 | MBRM110LT1G和MBRM110LT3的区别 |
MBRM110LT3G 安森美 | 类似代替 | MBRM110LT1G和MBRM110LT3G的区别 |
