MBR120LSFT1G概述

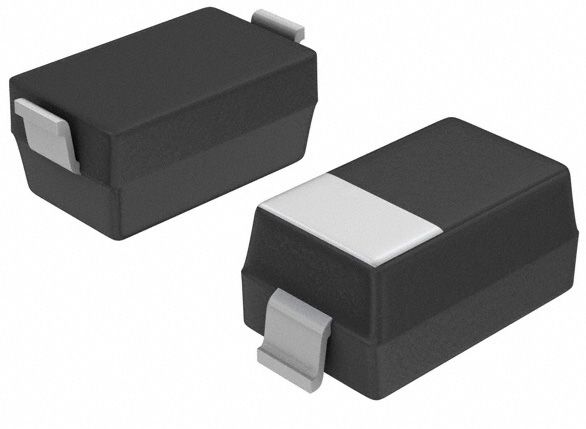

ON SEMICONDUCTOR  MBR120LSFT1G  肖特基整流器, 单, 20 V, 1 A, SOD-123FL, 2 引脚, 450 mV

肖特基势垒,1A 至 2A,

### 标准

带 NSV-、SBR- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。


得捷:
DIODE SCHOTTKY 20V 1A SOD123FL


欧时:
### 肖特基势垒二极管,1A 至 2A,ON Semiconductor### 标准Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.### 二极管和整流器,ON Semiconductor


立创商城:
MBR120LSFT1G


贸泽:
Schottky Diodes & Rectifiers 1A 20V


e络盟:
肖特基整流器, 20 V, 1 A, 单, SOD-123FL, 2 引脚, 450 mV


艾睿:
Rectifier Diode Schottky Si 20V 1A 2-Pin SOD-123FL T/R


Allied Electronics:
ON Semi MBR120LSFT1G, SMT Schottky Diode, 20V 1A, 2-Pin SOD-123FL


安富利:
Using the Schottky Barrier principle with a large area metal-to-silicon power diode.Ideally suited for low voltage high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.This package also provides an easy to work with alternative to the leadless 34 package style.Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards.Typical applications are ac/dc and dc/dc converters, reverse battery protection, and "ORing" of multiple supply voltages and any other application where performance and size are critical.


Chip1Stop:
Diode Schottky 20V 1A Automotive 2-Pin SOD-123FL T/R


Verical:
Diode Schottky 20V 1A Automotive 2-Pin SOD-123FL T/R


Newark:
# ON SEMICONDUCTOR  MBR120LSFT1G  Schottky Rectifier, 20 V, 1 A, Single, SOD-123FL, 2 Pins, 450 mV


Win Source:
DIODE SCHOTTKY 20V 1A SOD123L


MBR120LSFT1G中文资料参数规格
技术参数

额定电压DC 20.0 V

额定电流 1.00 A

无卤素状态 Halogen Free

输出电流 ≤1.00 A

针脚数 2

正向电压 450mV @1A

极性 Standard

热阻 26℃/W RθJL

正向电流 1 A

最大正向浪涌电流(Ifsm) 50 A

正向电压Max 450 mV

正向电流Max 1 A

工作温度Max 125 ℃

工作温度Min -55 ℃

工作结温Max 125 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 SOD-123-2

外形尺寸

长度 2.9 mm

宽度 1.8 mm

高度 0.9 mm

封装 SOD-123-2

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Portable Devices, Communications & Networking, 便携式器材, 电源管理, Computers & Computer Peripherals, 通信与网络, Power Management, 消费电子产品, Consumer Electronics, 计算机和计算机周边

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

MBR120LSFT1G引脚图与封装图
MBR120LSFT1G引脚图
MBR120LSFT1G封装焊盘图
在线购买MBR120LSFT1G
型号: MBR120LSFT1G
描述:ON SEMICONDUCTOR  MBR120LSFT1G  肖特基整流器, 单, 20 V, 1 A, SOD-123FL, 2 引脚, 450 mV
替代型号MBR120LSFT1G
型号/品牌 代替类型 替代型号对比

MBR120LSFT1G

ON Semiconductor 安森美

当前型号

当前型号

MBR120LSFT1

安森美

完全替代

MBR120LSFT1G和MBR120LSFT1的区别

MBR120LSFT3

安森美

完全替代

MBR120LSFT1G和MBR120LSFT3的区别

MBR120LSFT3G

安森美

类似代替

MBR120LSFT1G和MBR120LSFT3G的区别
