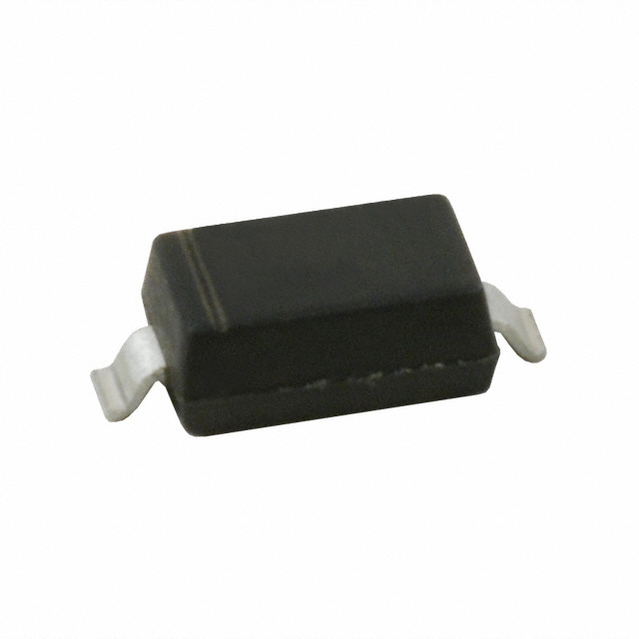

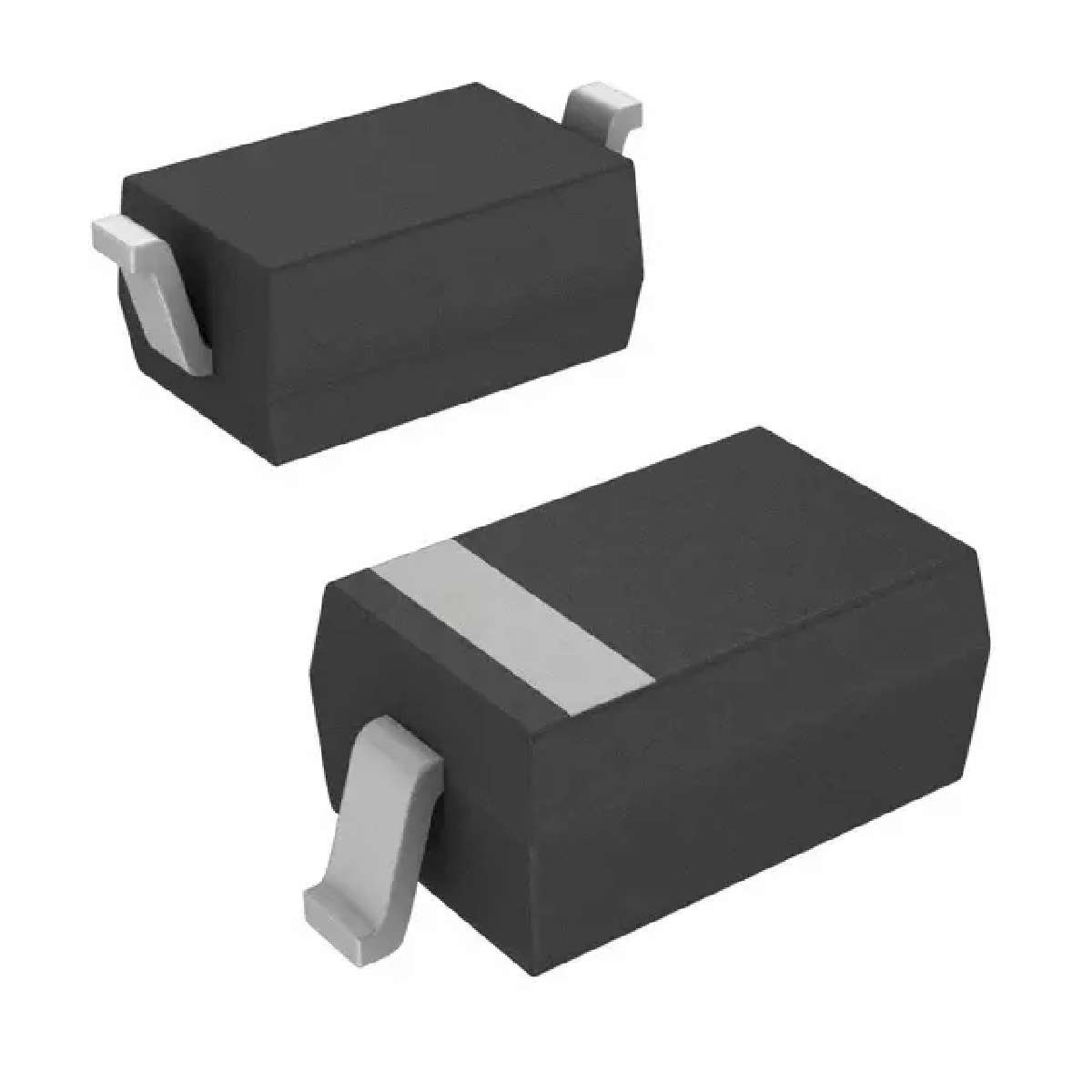

MICRO COMMERCIAL COMPONENTS MBR0530-TP 肖特基整流二极管, 500mA, 30V, SOD-123, 整卷
肖特基 30 V 500mA 表面贴装型 SOD-123
得捷:
DIODE SCHOTTKY 30V 500MA SOD123
e络盟:
肖特基整流二极管, 500mA, 30V, SOD-123, 整卷
艾睿:
Converting from AC to DC is simple when using a Schottky diode MBR0530-TP rectifier from Micro Commercial Components. Its maximum power dissipation is 410 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This rectifier has a minimum operating temperature of -55 °C and a maximum of 150 °C. Its peak non-repetitive surge current is 5.5 A, while its maximum continuous forward current is 0.5@Ta=50C A. It is made in a single configuration.
Chip1Stop:
Diode Schottky 30V 0.5A 2-Pin SOD-123 T/R
Verical:
Rectifier Diode Schottky 30V 0.5A 2-Pin SOD-123 T/R
Newark:
# MICRO COMMERCIAL COMPONENTS MBR0530-TP Schottky Rectifier, 30 V, 500 mA, Single, SOD-123, 2 Pins, 550 mV
Win Source:
DIODE SCHOTTKY 30V 500MA SOD123
额定电压DC 30.0 V
额定电流 500 mA
电容 30.0 pF
输出电流 ≤500 mA
针脚数 2
正向电压 550mV @500mA
极性 Standard
热阻 305℃/W RθJA
正向电流 500 mA
最大正向浪涌电流（Ifsm） 5.5 A
正向电压Max 550 mV
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 410 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123
宽度 1.8 mm
封装 SOD-123
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MBR0530-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MBR0520-TP 美微科 | 类似代替 | MBR0530-TP和MBR0520-TP的区别 |
MBR0530T1G 安森美 | 功能相似 | MBR0530-TP和MBR0530T1G的区别 |
B0520LW-7-F 美台 | 功能相似 | MBR0530-TP和B0520LW-7-F的区别 |
