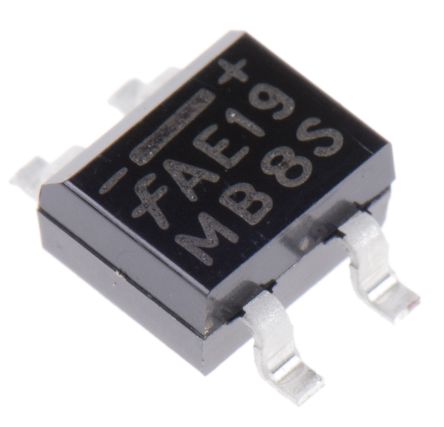

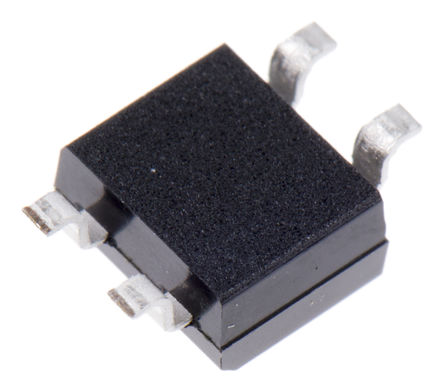

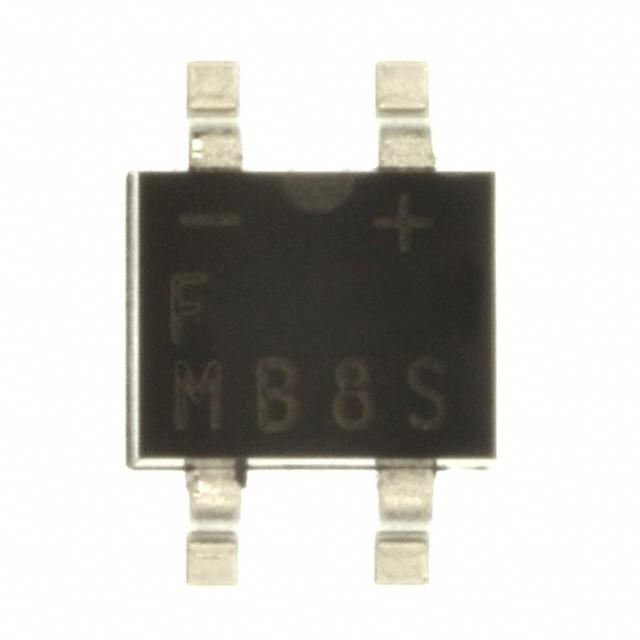

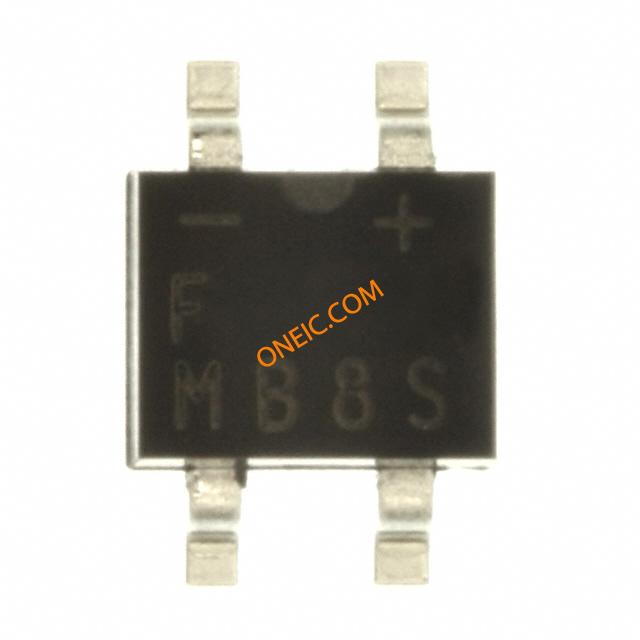

FAIRCHILD SEMICONDUCTOR MB8S 二极管 桥式整流, 单相, 800 V, 500 mA, SOIC, 1 V, 4 引脚
The is a Bridge Rectifier for printed circuit board. The MB family of bridge rectifier is a 0.5A rectifier family that achieves high surge current absorption within a very small foot print. Within its small 35mm² form factor, the MB family shines in its surge capability. In order to absorb high surge currents, the design supports a 35A IFSM rating and a 5.0A²Sec I²T rating. Devices in the family are also rated to breakdown voltages of up to 1000V. This features make the MB family ideal for small power supplies that need a little extra surge capability.
额定电压DC 800 V
额定电流 500 mA
电容 13.0 pF
输出电流 ≤500 mA
针脚数 4
正向电压 1V @500mA
耗散功率 1400 mW
正向电流 500 mA
最大正向浪涌电流(Ifsm) 35 A
正向电压Max 1 V
正向电流Max 500 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1400 mW
安装方式 Surface Mount
引脚数 4
封装 SOIC-4
长度 4.95 mm
宽度 4.2 mm
高度 2.7 mm
封装 SOIC-4
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MB8S Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MB8S-TP 美微科 | 功能相似 | MB8S和MB8S-TP的区别 |
