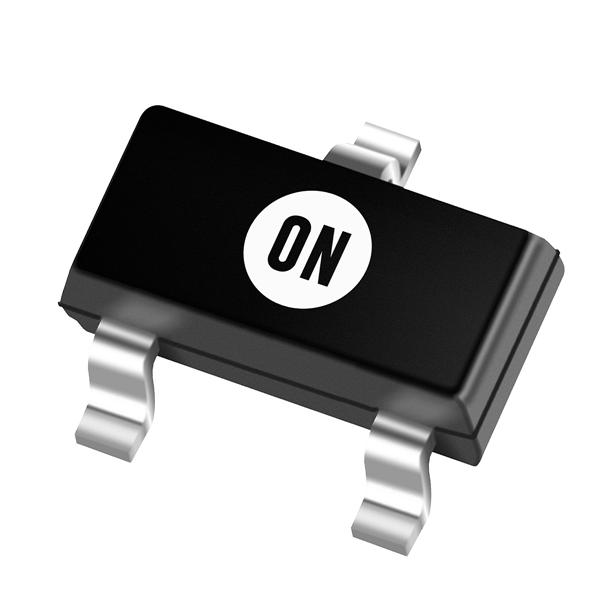

ON SEMICONDUCTOR MAX809TTRG 微处理器支持, 低电平有效, 推-挽复位, 1V-5.5V输入, SOT-23-3
微处理器监控和复位电路，On Semiconductor
立创商城:
Voltage Supervisor, Very Low Supply Current, 3-Pin Microprocessor, Reset Monitor
得捷:
IC SUPERVISOR 1 CHANNEL SOT23-3
欧时:
ANA 3.08V MCROPROC RESET
艾睿:
Processor Supervisor 3.08V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R
Allied Electronics:
MAX809TTRG, Processor Supervisor 1.2 - 4.9 V, 3-Pin SOT-23
安富利:
Processor Supervisor 3.08V 1.2V to 4.9V 3-Pin SOT-23 T/R
Chip1Stop:
Processor Supervisor 3.08V 1.2V to 4.9V 3-Pin SOT-23 T/R
Verical:
Processor Supervisor 3.08V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R
Newark:
# ON SEMICONDUCTOR MAX809TTRG Supervisory Circuit, 1V-5.5V supply, 3.08V Threshold, 460 ms Delay, Active-Low, Push-Pull, SOT-23-3
DeviceMart:
IC MPU SUPERVISORY 3.08V SOT23
Win Source:
Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3 TO-236
电源电压DC 1.00V min
工作电压 1.2V ~ 5.5V
无卤素状态 Halogen Free
输出电流 20 mA
供电电流 2.5 μA
针脚数 3
阈值电压 3.08 V
复位电压Min 3.04 V
复位电压Max 3.11 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压 1.2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.94 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Nagivator, Computers, Powertrain, Occupant Comfort, Instrument Cluster, Occupant Protection, Braking, Body Electronic, Portable Devices, Infotainment, Computers & Computer Peripherals, Battery Powered Equipment, Embedded Systems, 便携式器材, Critical Microprocessor Power Supply Monitoring, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MAX809TTRG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CAT809TTBI-T3 安森美 | 类似代替 | MAX809TTRG和CAT809TTBI-T3的区别 |
MAX809TTR 安森美 | 类似代替 | MAX809TTRG和MAX809TTR的区别 |
STM809TWX6F 意法半导体 | 功能相似 | MAX809TTRG和STM809TWX6F的区别 |
