SNAPHAT® 锂钮扣电池，带晶体，STMicroelectronics这些电池和晶体选件设备是可折卸锂电源，封装在名为 SNAPHAT® 的特殊顶部。 SNAPHAT 扣入印刷电路板中表面安装 IC 的顶部。 还与 STMicroelectronics 的非易失 TIMEKEEPER® 封装兼容。### SRAM 和 NVRAM 附件

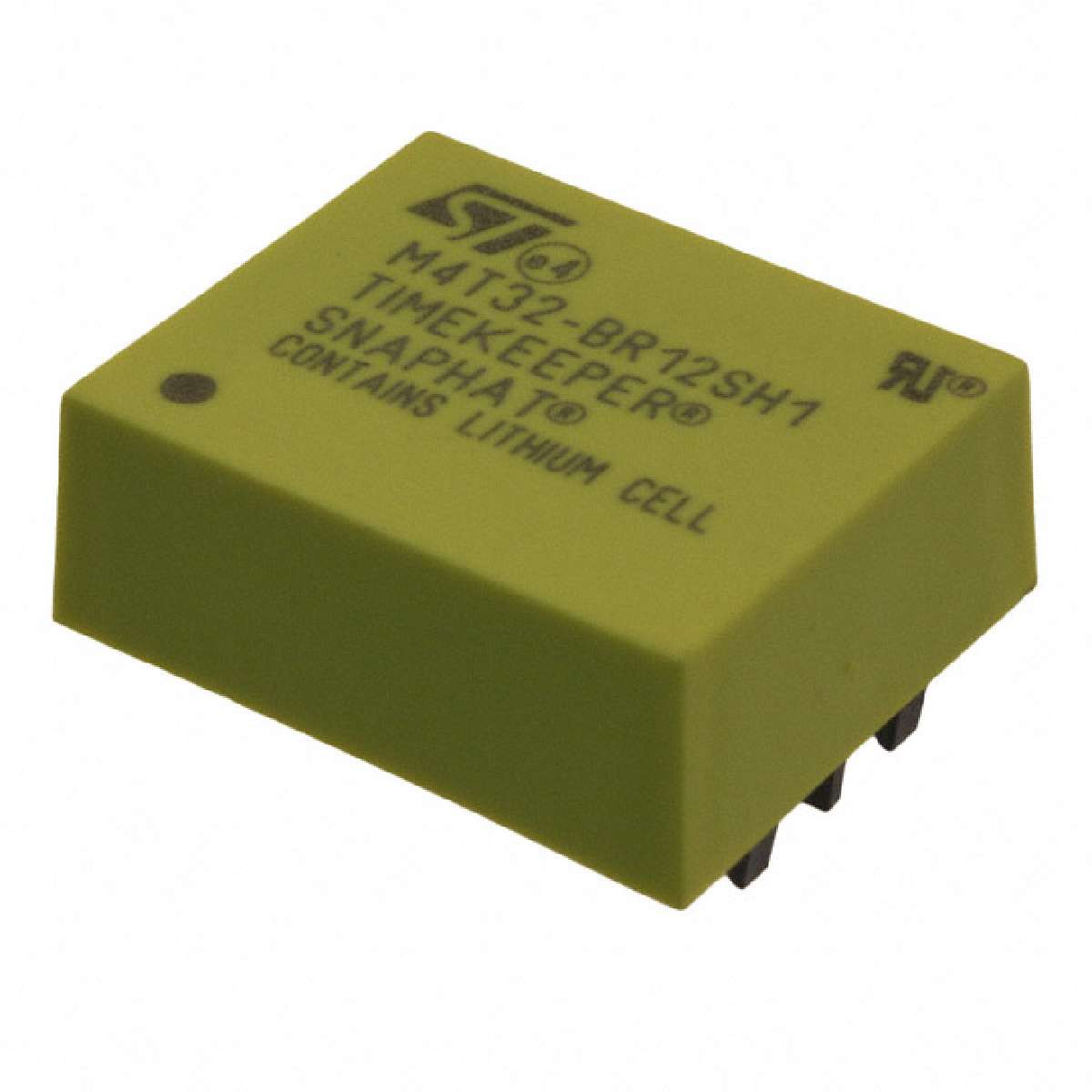

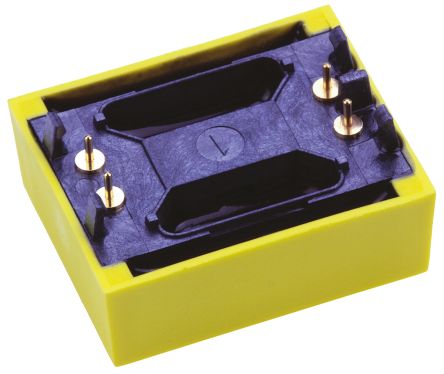

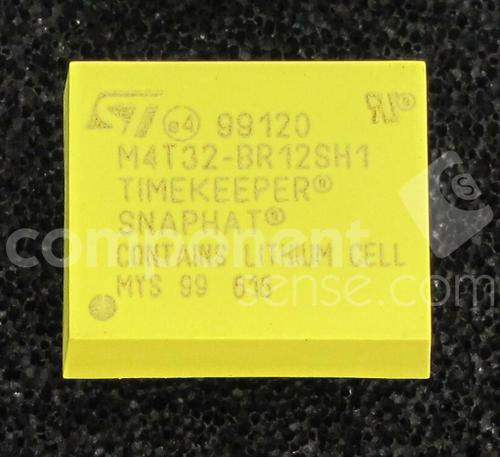

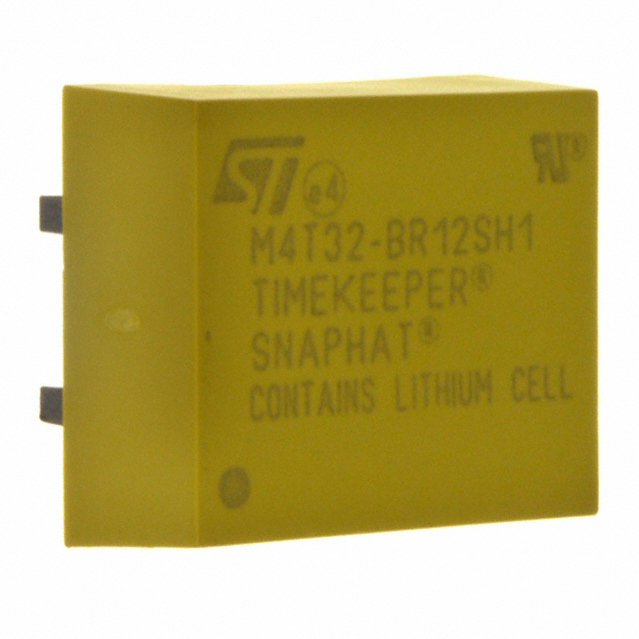

The is a 120mAh detachable Lithium coin Cell Battery with crystal. The detachable Lithium power source for ST"s serial real-time clock. The SNAPHAT® top contains both the battery and crystal and is designed to be snapped-on after the SOIC is surface mounted on the PC board. Thus the 2-piece solution prevents the battery and crystal from being exposed to the high temperatures of the surface-mount process.
- .
- Removable battery avoids heat associated with surface-mount process
- .
- Snaps directly onto surface-mounted SNAPHAT SOIC
- .
- Keyed insertion to ensure proper assembly
- .
- Removable for replacement and proper disposal
Do not wave solder SOIC to avoid damaging SNAPHAT® sockets.
频率 32.768 kHz
电源电压DC 3.00 V
等效串联电阻ESR 60.0 kΩ
输出电压 3.00 V
负载电容 12.5 pF
工作温度Max 70 ℃
工作温度Min 0 ℃
额定电压 2.8 V
电源电压 3 V
安装方式 Through Hole
引脚数 4
封装 SOIC
脚长度 2.29 mm
封装 SOIC
重量 1.80 g
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tube
制造应用 Communications & Networking, Security
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
M4T32-BR12SH1 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
M4T28-BR12SH1 意法半导体 | 功能相似 | M4T32-BR12SH1和M4T28-BR12SH1的区别 |

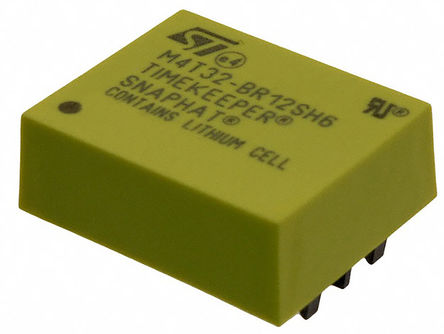

M4T32-BR12SH6 意法半导体 | 功能相似 | M4T32-BR12SH1和M4T32-BR12SH6的区别 |
M4T32-BR12SH1TR 意法半导体 | 功能相似 | M4T32-BR12SH1和M4T32-BR12SH1TR的区别 |
