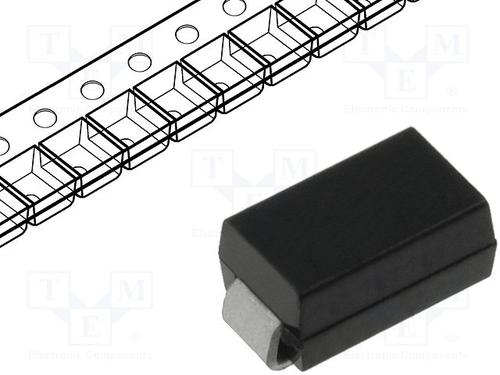

ON SEMICONDUCTOR MRA4004T3G 标准恢复二极管, 单, 400 V, 1 A, 1.1 V, 30 A
整流器,1A 至 1.5A,
### 标准
带 NSV- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
欧时:
整流器二极管,1A 至 1.5A,ON Semiconductor### 标准带 NSV- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
立创商城:
功率整流器,标准恢复,1 A,400 V
得捷:
DIODE GEN PURP 400V 1A SMA
e络盟:
ON SEMICONDUCTOR MRA4004T3G 标准恢复二极管, 单, 400 V, 1 A, 1.1 V, 30 A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode MRA4004T3G rectifier from ON Semiconductor. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its peak non-repetitive surge current is 2 A, while its maximum continuous forward current is 1 A. It is made in a single configuration. This rectifier has an operating temperature range of -55 °C to 175 °C.
Allied Electronics:
ON Semi MRA4004T3G; SMT Switching Diode; 400V 1A; 2-Pin DO-214AC
安富利:
Diode Switching 400V 1A 2-Pin SMA T/R
富昌:
MRA 系列 1 A 400 V 表面贴装 标准恢复 功率 整流器 - CASE 403D
Chip1Stop:
Diode Switching 400V 1A Automotive 2-Pin SMA T/R
TME:
Diode: rectifying; SMD; 400V; 1A; SMA
Verical:
Diode Switching 400V 1A Automotive 2-Pin SMA T/R
Win Source:
DIODE GEN PURP 400V 1A SMA
额定电压DC 400 V
额定电流 1.00 A
输出电流 ≤1.00 A
针脚数 2
正向电压 1.1V @1A
极性 Standard
热阻 16.2℃/W RθJL
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.1 V
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.32 mm
宽度 2.6 mm
高度 2 mm
封装 DO-214AC
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Power Management, Automotive, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MRA4004T3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MRA4004T3 安森美 | 类似代替 | MRA4004T3G和MRA4004T3的区别 |
1SR154-400TE25 罗姆半导体 | 功能相似 | MRA4004T3G和1SR154-400TE25的区别 |
