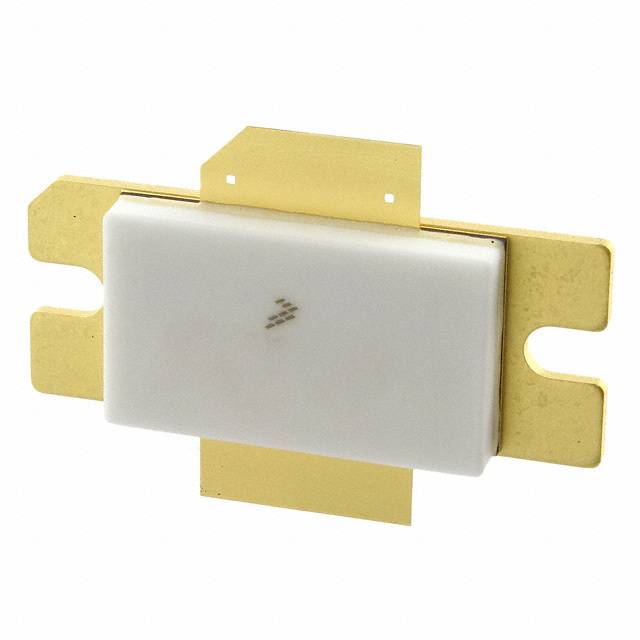

MRF5S21130HR3

2170MHz, 28W AVG., 28V, 2 x W-CDMA, Lateral N-Channel RF Power MOSFET

RF Power Field Effect Transistors

N-Channel Enhancement-Mode Lateral MOSFETs

Designed for W-CDMA base station applications at frequencies from 2110 to 2170 MHz. Suitable for TDMA, CDMA and multicarrier amplifier applications. To be used in Class AB for PCN - PCS/cellular radio and WLL applications.

• Typical 2-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ = 1200 mA,

   Pout = 28 Watts Avg., Full Frequency Band, Channel Bandwidth =

   3.84 MHz, PAR = 8.5 dB @ 0.01% Probability on CCDF.

      Power Gain — 13.5 dB

      Efficiency — 26%

      IM3 @ 10 MHz Offset — -37 dBc in 3.84 MHz Channel Bandwidth

      ACPR @ 5 MHz Offset — -39 dBc in 3.84 MHz Channel Bandwidth

• Capable of Handling 10:1 VSWR, @ 28 Vdc, 2140 MHz, 92 Watts CW Output Power

Features

• Characterized with Series Equivalent Large-Signal Impedance Parameters

• Internally Matched for Ease of Use

• Qualified Up to a Maximum of 32 VDD Operation

• Integrated ESD Protection

• Lower Thermal Resistance Package

• Low Gold Plating Thickness on Leads, 40μ″ Nominal.

• RoHS Compliant

• In Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 inch Reel.
