MAXIM INTEGRATED PRODUCTS MAX3645EEE+T 限幅放大器, 125Mbps至200Mbps, 250 MHz, 2.97 V, 5.5 V, QSOP, 16 引脚, -40 °C
The is a +2.97V to +5.5V, 125Mbps to 200Mbps limiting amplifier with loss of signal detector in 16 pin QSOP package. The limiting amplifier functions as a data quantizer and is pin compatible with the Mindspeed MC2045-2 and MC2045-2Y post amplifiers. The amplifier accepts a wide range of input voltages and provides constant-level positive emitter-coupled logic PECL output voltages with controlled edge speeds. The MAX3645 features an integrated power detector with complementary PECL loss of signal LOS outputs that indicate when the input power level drops below a programmable threshold. An optional squelch function holds the data outputs at static levels during a LOS condition.
电源电压DC 2.97V min
供电电流 18 mA
通道数 1
针脚数 16
耗散功率 540 mW
带宽 250 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 2.97 V
安装方式 Surface Mount
引脚数 16

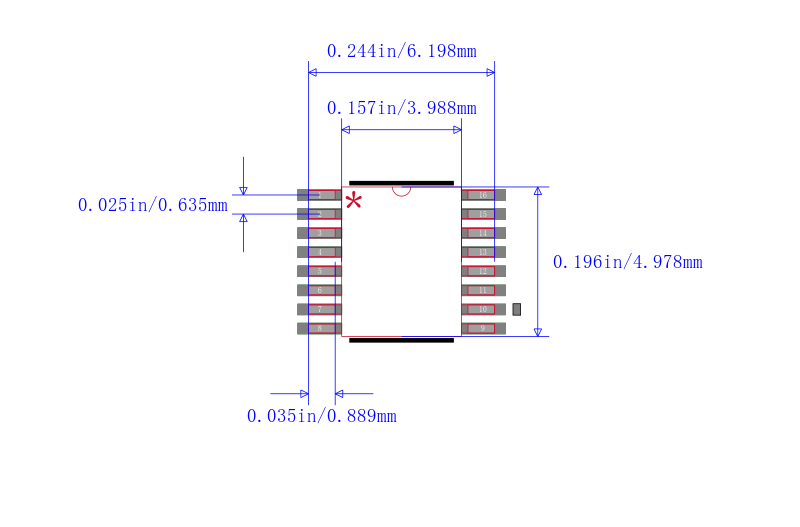

封装 QSOP-16
封装 QSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 数据量化器,光学接收器, 信号处理, Communications & Networking, Signal Processing, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX3645EEE+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX3645EEE+ 美信 | 类似代替 | MAX3645EEE+T和MAX3645EEE+的区别 |
