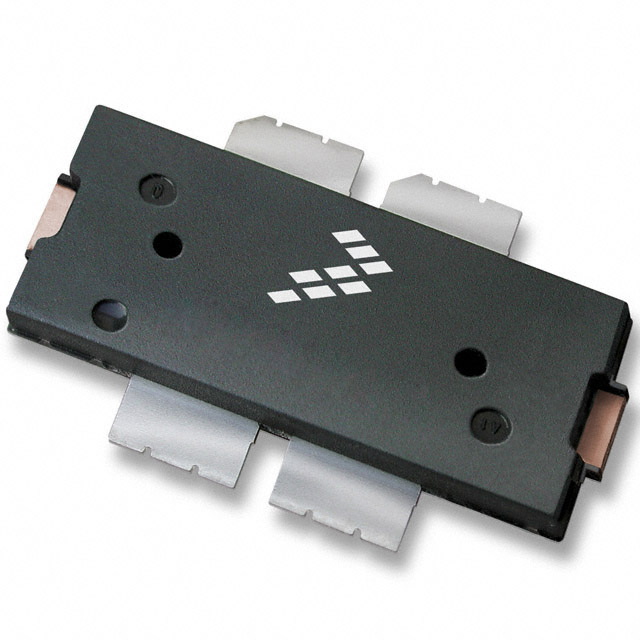

MRF6S19060NR1

MOSFET RF N-CH 28V 12W TO270-4

RF Power Field Effect Transistors

N-Channel Enhancement-Mode Lateral MOSFETs

Designed for N-CDMA base station applications with frequencies from 1930 to 1990 MHz. Suitable for TDMA, CDMA and multicarrier amplifier applications. To be used in Class AB for PCN - PCS/cellular radio and WLL applications.

• Typical 2-Carrier N-CDMA Performance: VDD = 28 Volts,

   IDQ = 610 mA, Pout = 12 Watts Avg., Full Frequency Band, IS-95 CDMA

   Pilot, Sync, Paging, Traffic Codes 8 Through 13 Channel Bandwidth =

   1.2288 MHz. PAR = 9.8 dB @ 0.01% Probability on CCDF.

     Power Gain — 16 dB

     Drain Efficiency — 26%

     IM3 @ 2.5 MHz Offset — -37 dBc in 1.2288 MHz Bandwidth

     ACPR @ 885 kHz Offset — -51 dBc in 30 kHz Bandwidth

• Capable of Handling 5:1 VSWR, @ 28 Vdc, 1960 MHz, 60 Watts CW Output Power

Features

• Characterized with Series Equivalent Large-Signal Impedance Parameters

• Internally Matched for Ease of Use

• Qualified Up to a Maximum of 32 VDD Operation

• Integrated ESD Protection

• Designed for Lower Memory Effects and Wide Instantaneous Bandwidth Applications

• 200°C Capable Plastic Package

• N Suffix Indicates Lead-Free Terminations. RoHS Compliant.

• In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.
