二极管 - 通用,功率,开关 250mA 80V
阵列 2 个独立式 标准 80 V 250mA 表面贴装型 SOT-563,SOT-666
得捷:
DIODE ARRAY GP 80V 250MA SOT563
贸泽:
二极管 - 通用,功率,开关 250mA 80V
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode MMBD4448V-TP rectifier from Micro Commercial Components. Its maximum power dissipation is 150 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a dual anti parallel configuration. Its peak non-repetitive surge current is 4 A, while its maximum continuous forward current is 0.5 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Win Source:
DIODE ARRAY GP 80V 250MA SOT563
额定电压DC 75.0 V
额定电流 500 mA
电容 3.50 pF
正向电压 1.25V @150mA
反向恢复时间 4 ns
正向电压Max 1.25V @150mA
正向电流Max 0.5 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 6

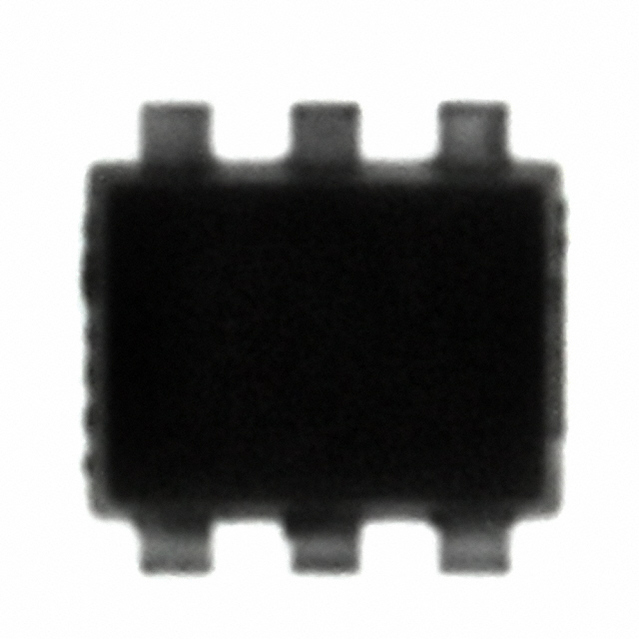

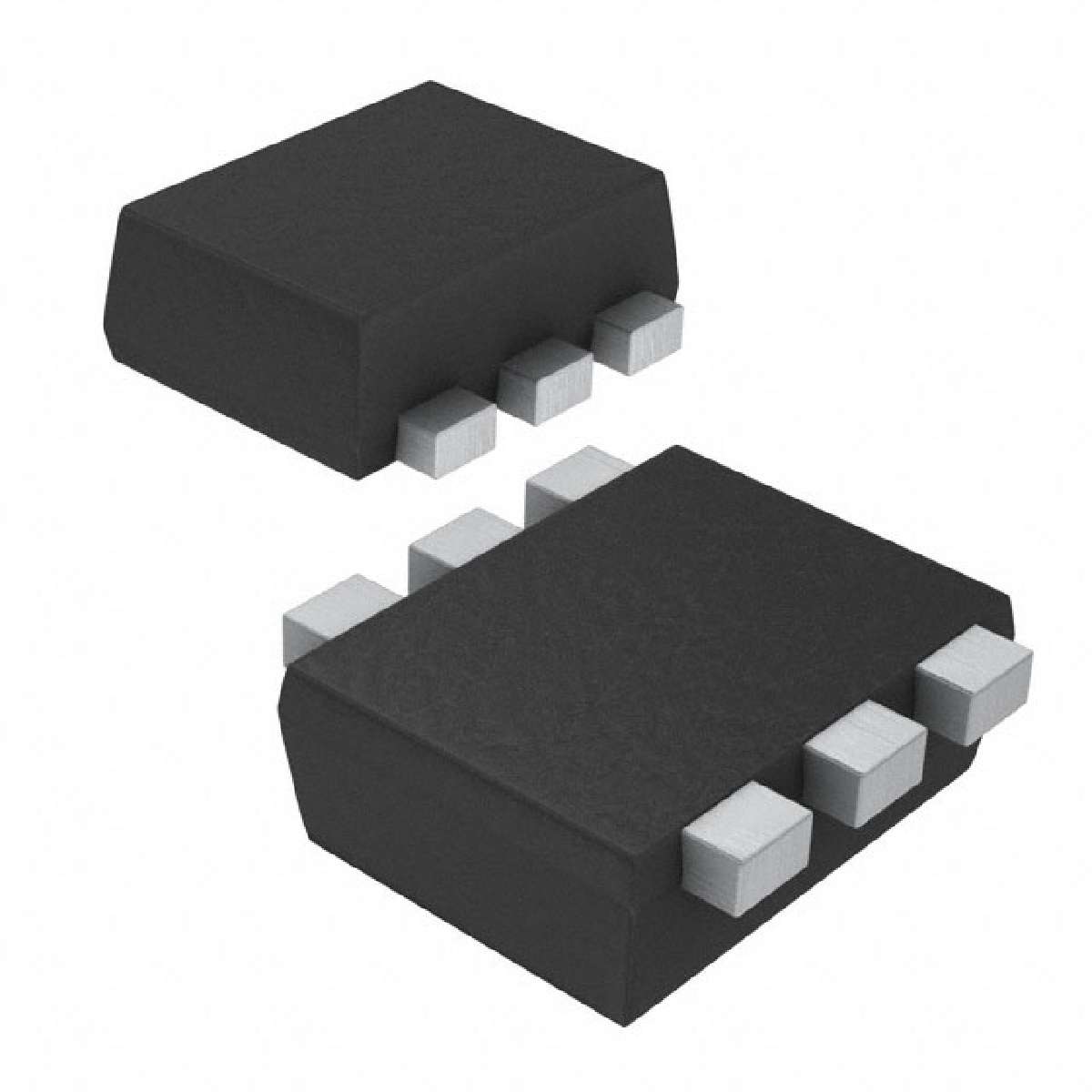

封装 SOT-563
长度 1.7 mm
宽度 1.25 mm
高度 0.6 mm
封装 SOT-563
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBD4448V-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MMBD4448V-7 美台 | 功能相似 | MMBD4448V-TP和MMBD4448V-7的区别 |
