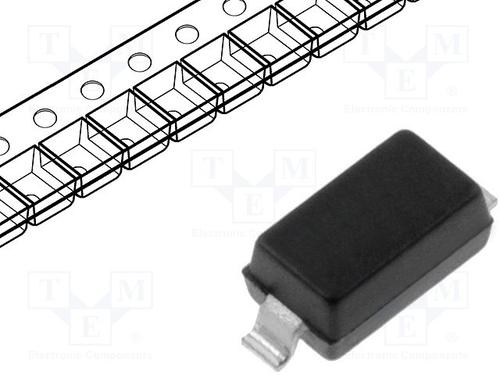

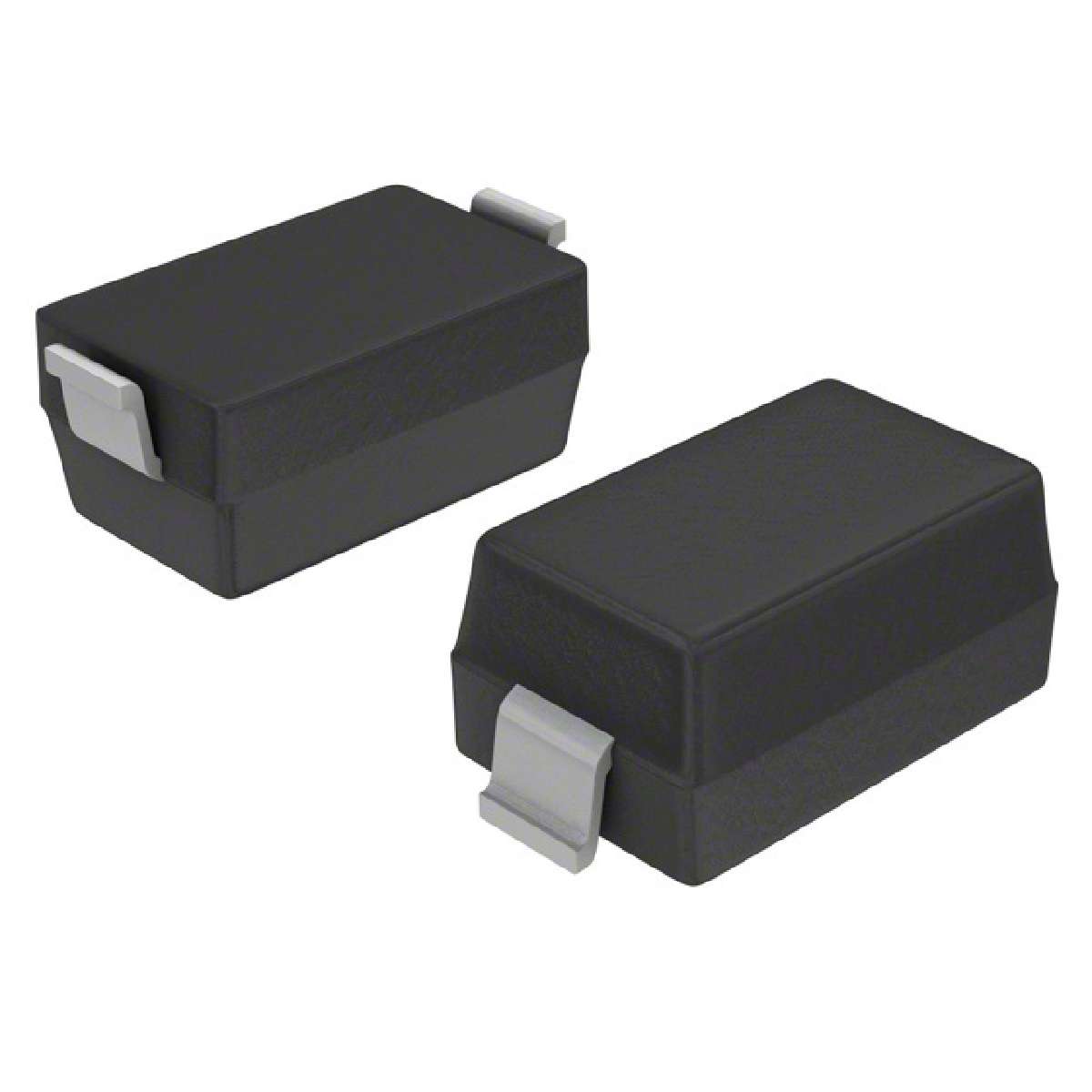

MMSZ5244B

FAIRCHILD SEMICONDUCTOR  MMSZ5244B  单管二极管 齐纳, 14 V, 500 mW, SOD-123, 5 %, 2 引脚, 150 °C

The is a half watt general purpose medium current surface mount Zener Diode in the SOD-123 package provides high power and current handling capability. The SOD-123 package has the same footprint as the glass MiniMELF LL-34 package and provides a convenient alternative to the leadless package. This product is general usage and suitable for many different applications.

.

Compact surface mount with same footprint as MiniMELF

.

500mW Rating on FR-4 or FR-5 board

.

Low gate charge typical 5nC

.

Class 3 ESD rating >16kV per human body model
