MSP430F123IDW

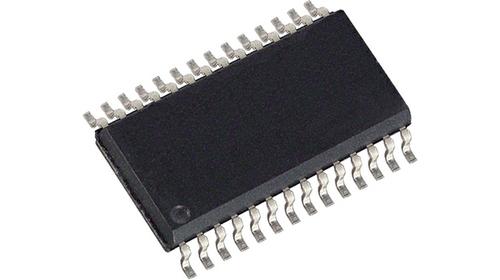

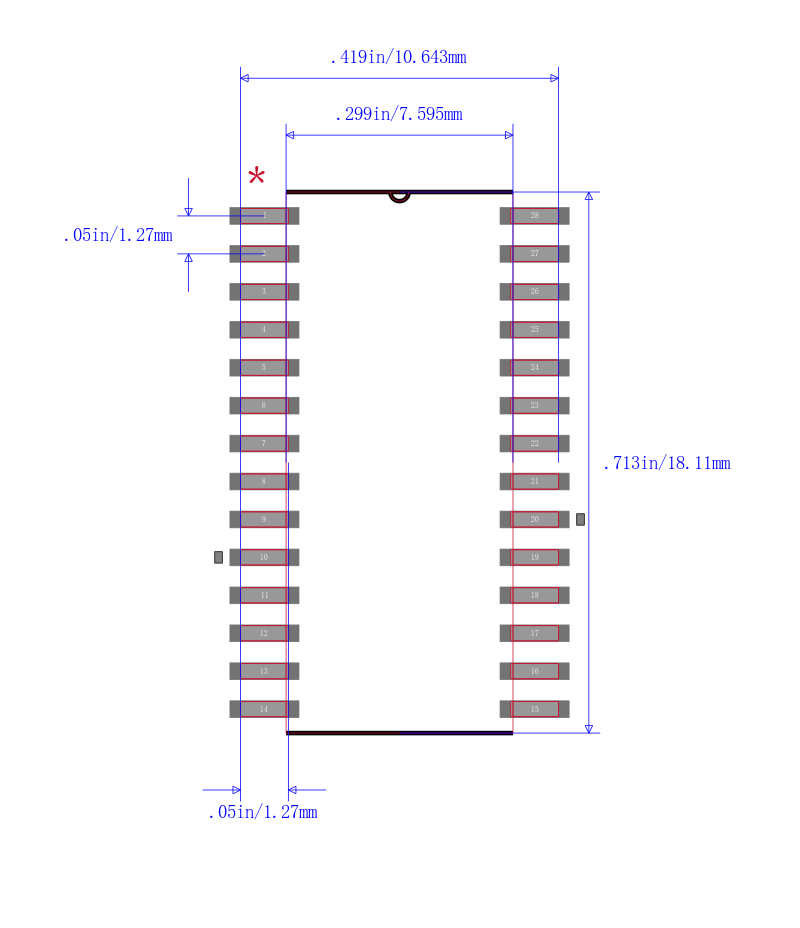

TEXAS INSTRUMENTS  MSP430F123IDW  微控制器, 16位, 混合信号, MSP430F1xx, 8 MHz, 8 KB, 256 Byte, 28 引脚, SOIC

The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6µs. The device configurations with 16-bit timer, 22 general-purpose I/O pins and a built-in communication capability using asynchronous UART and synchronous SPI protocols in addition to a versatile analog comparator. This device operates at a maximum frequency of 8MHz.

.

16-bit RISC architecture, 125ns instruction cycle time

.

Various internal resistors

.

Single external resistor

.

32kHz Crystal

.

High-frequency crystal

.

Resonator clock

.

External clock source

.

16-bit Timer_A with three Capture/Compare registers

.

On-chip comparator for analog signal compare function or slope A/D conversion

.

Serial on-board programming

.

No external programming voltage needed

.

Programmable code protection by security fuse

.

Serial communication interface USART0 software-selects asynchronous UART or Synchronous SPI

.

200µA at 1MHz, 2.2V Active mode AM power consumption
