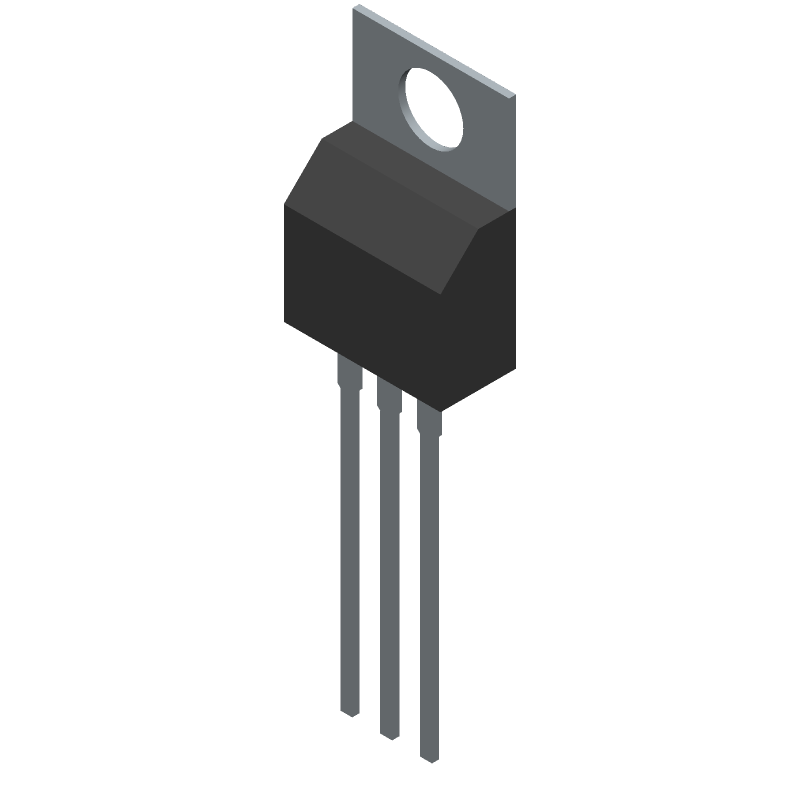

ON SEMICONDUCTOR MCR72-8G 晶闸管, 600 V, 200 µA, 8 A, TO-220AB, 3 引脚 新
The is a sensitive gate Silicon Controlled Rectifier SCR designed for consumer applications. It has small, rugged, thermowatt construction for low thermal resistance, high heat dissipation and durability.
触点数 3
额定电压DC 600 V
额定电流 8.00 A
针脚数 3
正向电压 1.7 V
转换速率 10.0 V/μs
保持电流 6 mA
热阻 2.2℃/W RθJC
正向电流 8 A
保持电流Max 6 mA
工作温度Max 110 ℃
工作温度Min -40 ℃
工作结温Max 110 ℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.28 mm
宽度 4.82 mm
高度 15.75 mm
封装 TO-220-3
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Box
制造应用 Power Management, Consumer Electronics, Automation & Process Control, Industrial, Lighting, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCR72-8G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MCR72-8TG 安森美 | 完全替代 | MCR72-8G和MCR72-8TG的区别 |
TS820-600T 意法半导体 | 功能相似 | MCR72-8G和TS820-600T的区别 |
TYN608RG 意法半导体 | 功能相似 | MCR72-8G和TYN608RG的区别 |
