MCR72-3G

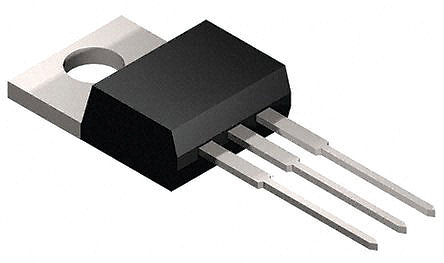

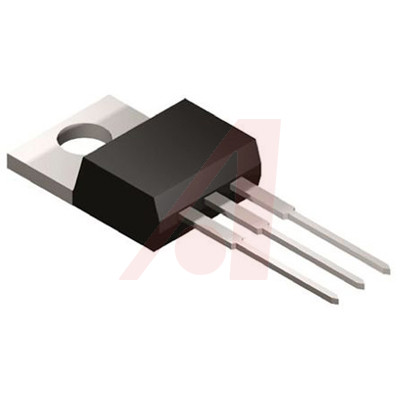

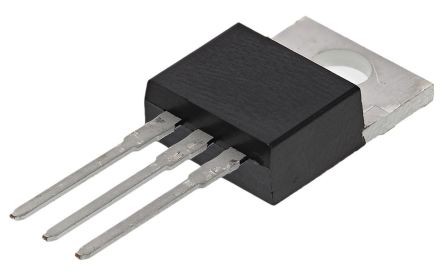

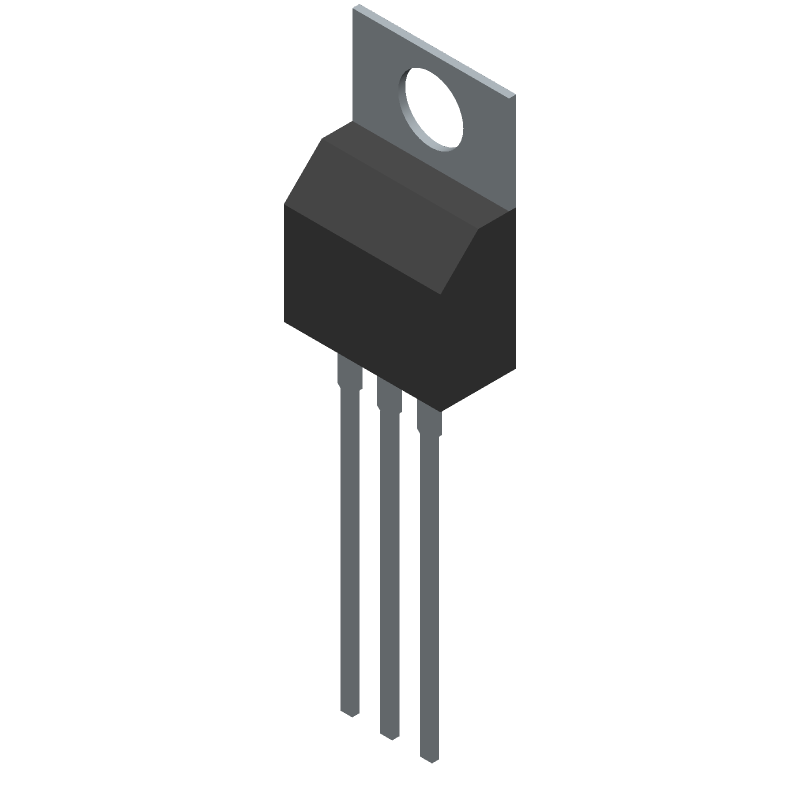

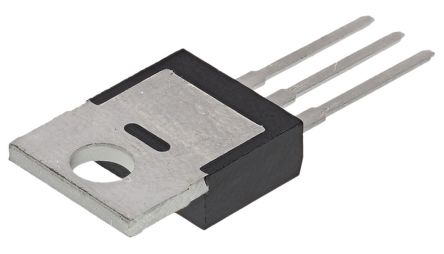

ON SEMICONDUCTOR  MCR72-3G  晶闸管, SCR, 8A, 100V, TO-220

SCRs 8 AMPERES RMS 100 thru 600 VOLTS

Designed for industrial and consumer applications such as temperature, light and speed control; process and remote controls; warning systems; capacitive discharge circuits and MPU interface.

Features

•Center Gate Geometry for Uniform Current Density

•All Diffused and Glass-Passivated Junctions for Parameter Uniformity and Stability

•Small, Rugged Thermowatt Construction for Low Thermal Resistance, High Heat Dissipation and Durability

•Low Trigger Currents, 200 A Maximum for Direct Driving from Integrated Circuits

•Pb−Free Packages are Available
