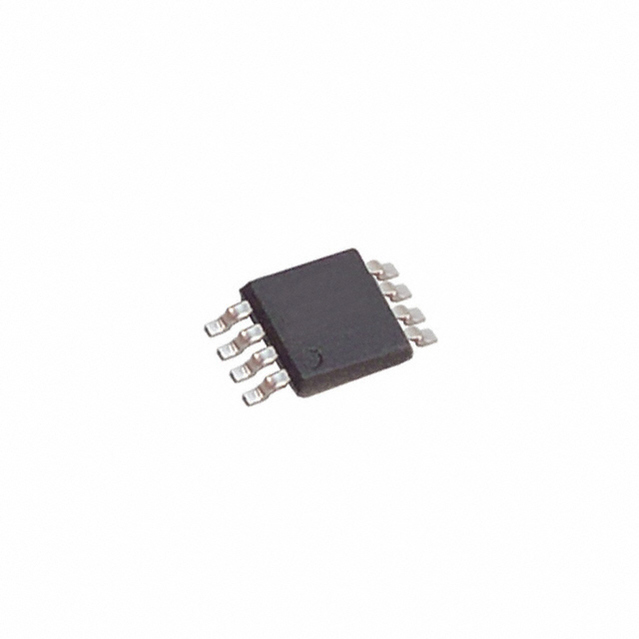

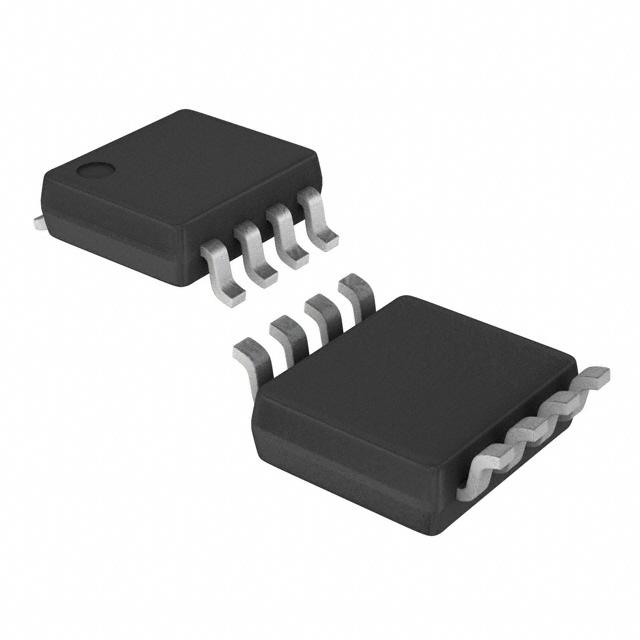

TEXAS INSTRUMENTS MC33078DGKR 运算放大器, 16 MHz, 2个放大器, 7 V/µs, ± 5V 至 ± 18V, VSSOP, 8 引脚
The is a dual high-speed low-noise bipolar Operational Amplifier with high-performance specifications for use in data-signal applications. This device operates over a wide range of dual-supply voltages and offers low noise, high-gain bandwidth and high slew rate. Additional features include low total harmonic distortion, excellent phase and gain margins, large output voltage swing with no dead-band crossover distortion and symmetrical sink/source performance.
电源电压DC 36.0 V
供电电流 2.05 mA
电路数 2
通道数 2
针脚数 8
共模抑制比 80 dB
输入补偿漂移 2.00 µV/K
带宽 16 MHz
转换速率 7.00 V/μs
增益频宽积 16 MHz
输入补偿电压 150 µV
输入偏置电流 300 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 16 MHz
共模抑制比Min 80 dB
电源电压Max 36V ~ 37V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
宽度 3 mm
高度 0.95 mm
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC33078DGKR TI 德州仪器 | 当前型号 | 当前型号 |
MC33078DGKT 德州仪器 | 类似代替 | MC33078DGKR和MC33078DGKT的区别 |
MC33078DGKRG4 德州仪器 | 类似代替 | MC33078DGKR和MC33078DGKRG4的区别 |
MC33078DGKTG4 德州仪器 | 类似代替 | MC33078DGKR和MC33078DGKTG4的区别 |
