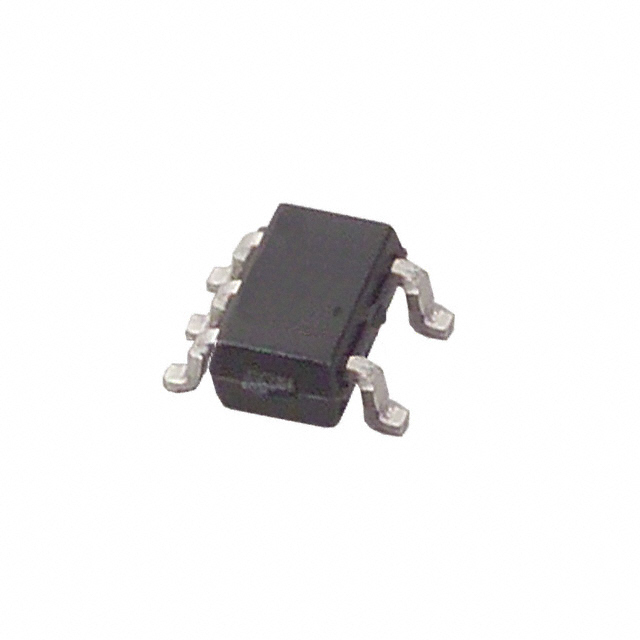

MAXIM INTEGRATED PRODUCTS MAX9910EXK+T 运算放大器, 轨至轨输入输出, 200 kHz, 1个放大器, 0.1 V/µs, 1.8V 至 5.5V, SC-70, 5 引脚
The is a 200KHz, 4µA, rail to rail I/O single op-amp with Shutdown in 5 pin SC-70 package. It feature a maximized ratio of gain bandwidth GBW to supply current and ideal for battery powered applications such as portable instrumentation, portable medical equipment and wireless handsets. This CMOS op-amp features an ultra low input bias current of 1pA, rail to rail inputs and outputs, low supply current of 4µA and operate from a single 1.8V to 5.5V supply. For additional power conservation, the device feature a low power shutdown mode that reduces supply current to 1nA and puts the amplifiers outputs in a high impedance state. This device is unity gain stable with a 200KHz GBW product.
供电电流 4 µA
电路数 1
通道数 1
针脚数 5
耗散功率 247 mW
共模抑制比 70 dB
带宽 200 kHz
转换速率 100 mV/μs
增益频宽积 200 kHz
输入补偿电压 200 µV
输入偏置电流 1 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 200 kHz
耗散功率Max 247 mW
共模抑制比Min 70 dB
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 5
封装 SC-70-5
封装 SC-70-5
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Portable Devices, 信号处理, Signal Processing, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX9910EXK+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX9910EXK-T 美信 | 完全替代 | MAX9910EXK+T和MAX9910EXK-T的区别 |
MAX9911EXT+T 美信 | 功能相似 | MAX9910EXK+T和MAX9911EXT+T的区别 |
MAX9911EXT-T 美信 | 功能相似 | MAX9910EXK+T和MAX9911EXT-T的区别 |
