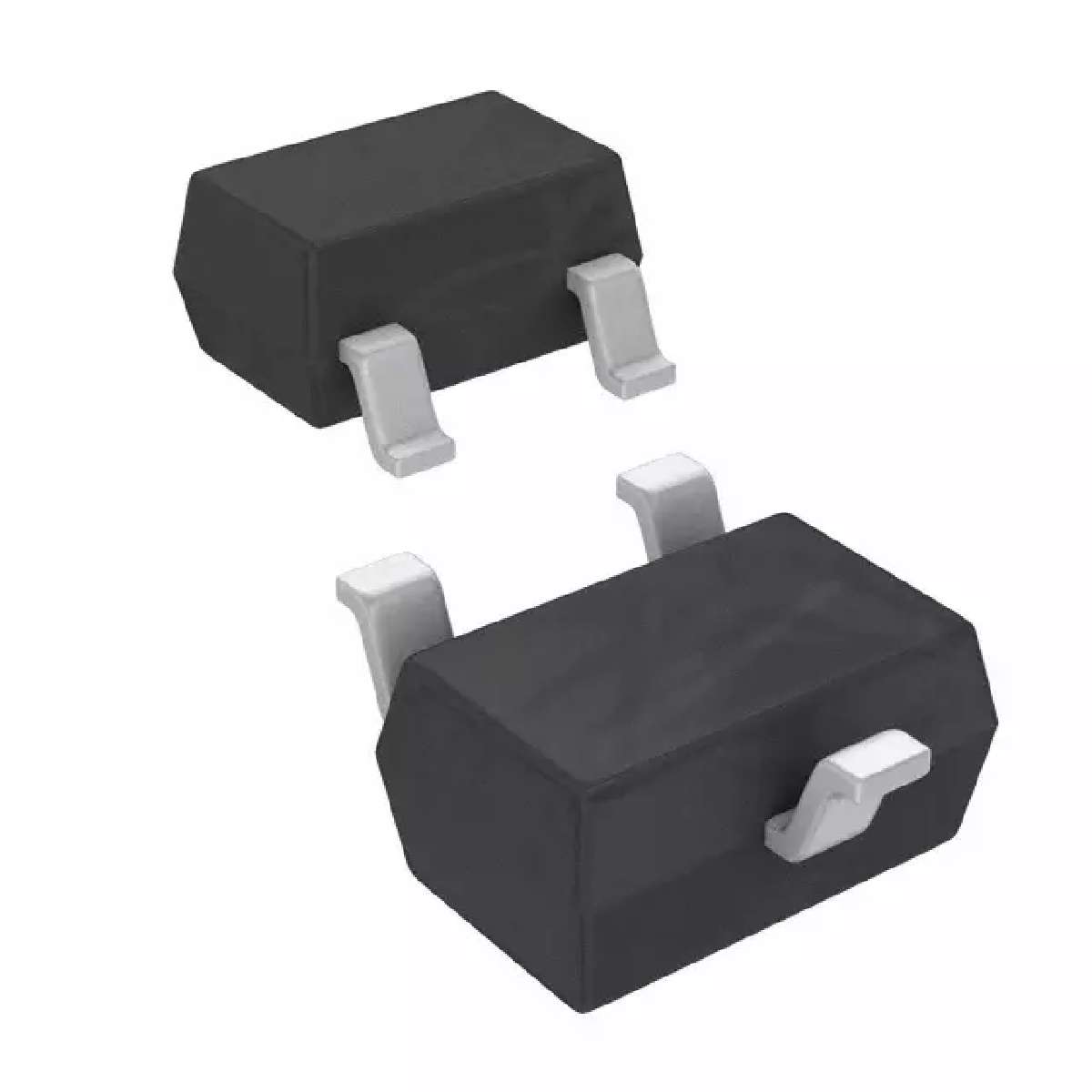

Diode Switching 75V 0.5A 3Pin SOT-323 T/R
Diode Standard 75V 250mA Surface Mount SOT-323
得捷:
DIODE GEN PURP 75V 250MA SOT323
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode MMBD4448WT-TP rectifier from Micro Commercial Components. Its maximum power dissipation is 200 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This rectifier has a minimum operating temperature of -55 °C and a maximum of 150 °C. Its peak non-repetitive surge current is 4 A, while its maximum continuous forward current is 0.5 A. It is made in a single configuration.
Chip1Stop:
Diode Switching 75V 0.5A 3-Pin SOT-323 T/R
Verical:
Diode Switching 75V 0.5A 3-Pin SOT-323 T/R
额定电压DC 75.0 V
额定电流 500 mA
电容 4.00 pF
输出电流 ≤500 mA
正向电压 1.25 V
极性 Standard
耗散功率 200 mW
反向恢复时间 4 ns
正向电流 500 mA
正向电压Max 1.25V @150mA
正向电流Max 0.5 A
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-323
宽度 1.35 mm
高度 1 mm
封装 SOT-323
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
