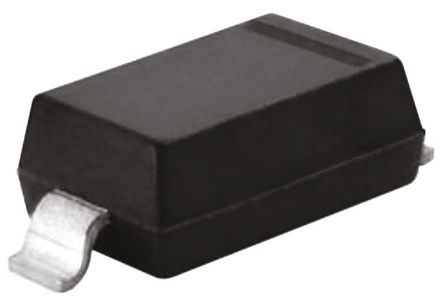

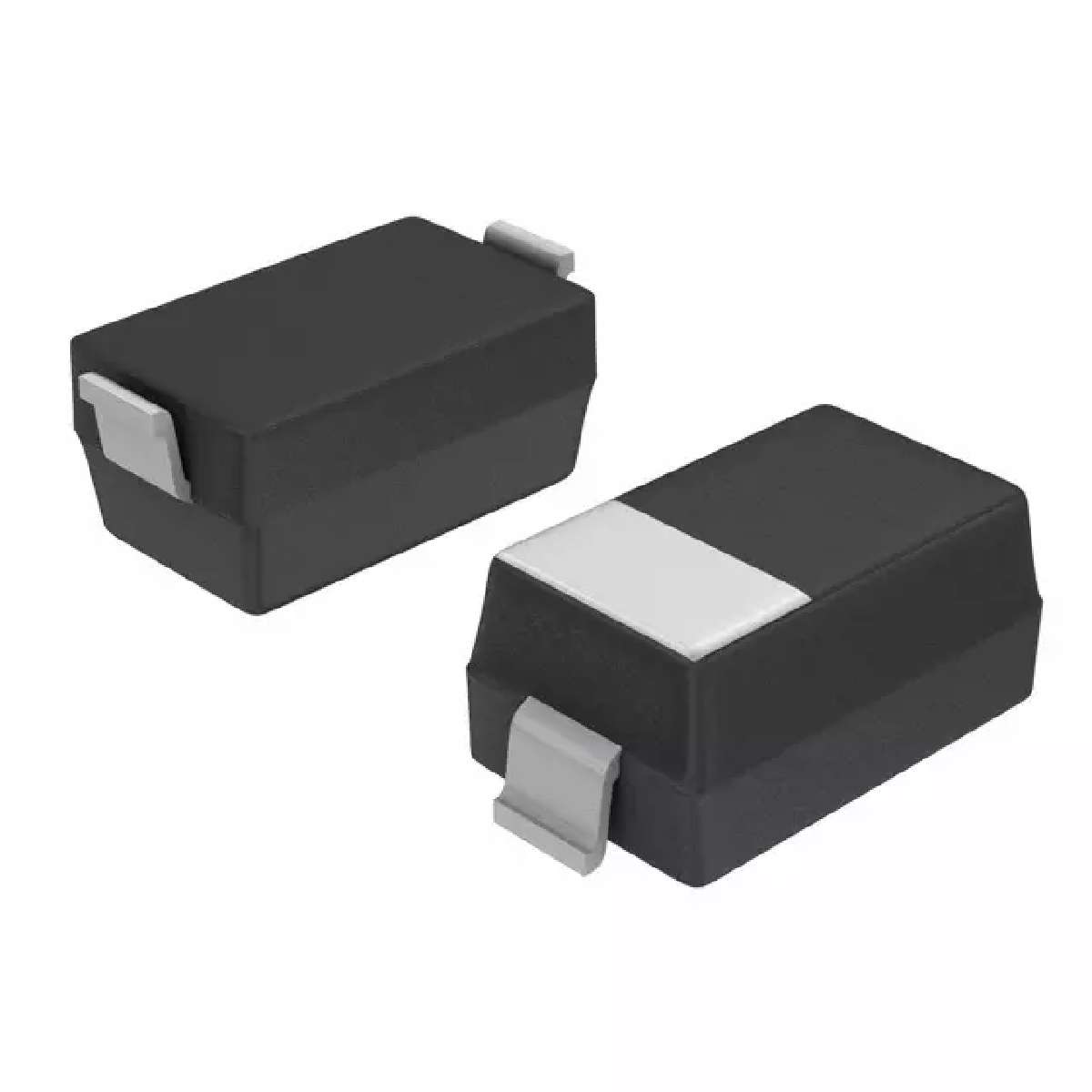

ON SEMICONDUCTOR MBR0540T3G 肖特基整流器, 单, 40 V, 500 mA, SOD-123, 2 引脚, 620 mV
肖特基势垒,最大 900mA,
### 标准
带 NSV-、SBR- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
立创商城:
MBR0540T3G
得捷:
DIODE SCHOTTKY 40V 500MA SOD123
欧时:
ON Semiconductor 二极管 MBR0540T3G 肖特基, Io=500mA, Vrev=40V, 2引脚 SOD-123封装
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode MBR0540T3G rectifier from ON Semiconductor. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 5.5 A, while its maximum continuous forward current is 0.5 A. This rectifier has an operating temperature range of -55 °C to 150 °C.
Allied Electronics:
ON Semi MBR0540T3G; SMT Schottky Diode; 40V 500mA; 2-Pin SOD-123
安富利:
Diode Schottky 40V 0.5A 2-Pin SOD-123 T/R
Chip1Stop:
Diode Schottky 40V 0.5A Automotive 2-Pin SOD-123 T/R
Verical:
Diode Schottky 40V 0.5A Automotive 2-Pin SOD-123 T/R
Newark:
Schottky Rectifier, 40 V, 500 mA, Single, SOD-123, 2 Pins, 510 mV
Win Source:
DIODE SCHOTTKY 40V 500MA SOD123
额定电压DC 40.0 V
额定电流 500 mA
无卤素状态 Halogen Free
输出电流 ≤500 mA
针脚数 2
正向电压 510mV @500mA
极性 Standard
热阻 118℃/W RθJL
正向电流 500 mA
最大正向浪涌电流(Ifsm) 5.5 A
正向电压Max 510 mV
正向电流Max 500 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-123
长度 2.84 mm
宽度 1.8 mm
高度 1.25 mm
封装 SOD-123
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, 安全, Industrial, Safety, 电源管理, Power Management, Power Management, Automotive, Industrial, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBR0540T3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBR0540T1G 安森美 | 完全替代 | MBR0540T3G和MBR0540T1G的区别 |
MBR0540 安森美 | 类似代替 | MBR0540T3G和MBR0540的区别 |
MBR0540T1 安森美 | 类似代替 | MBR0540T3G和MBR0540T1的区别 |
