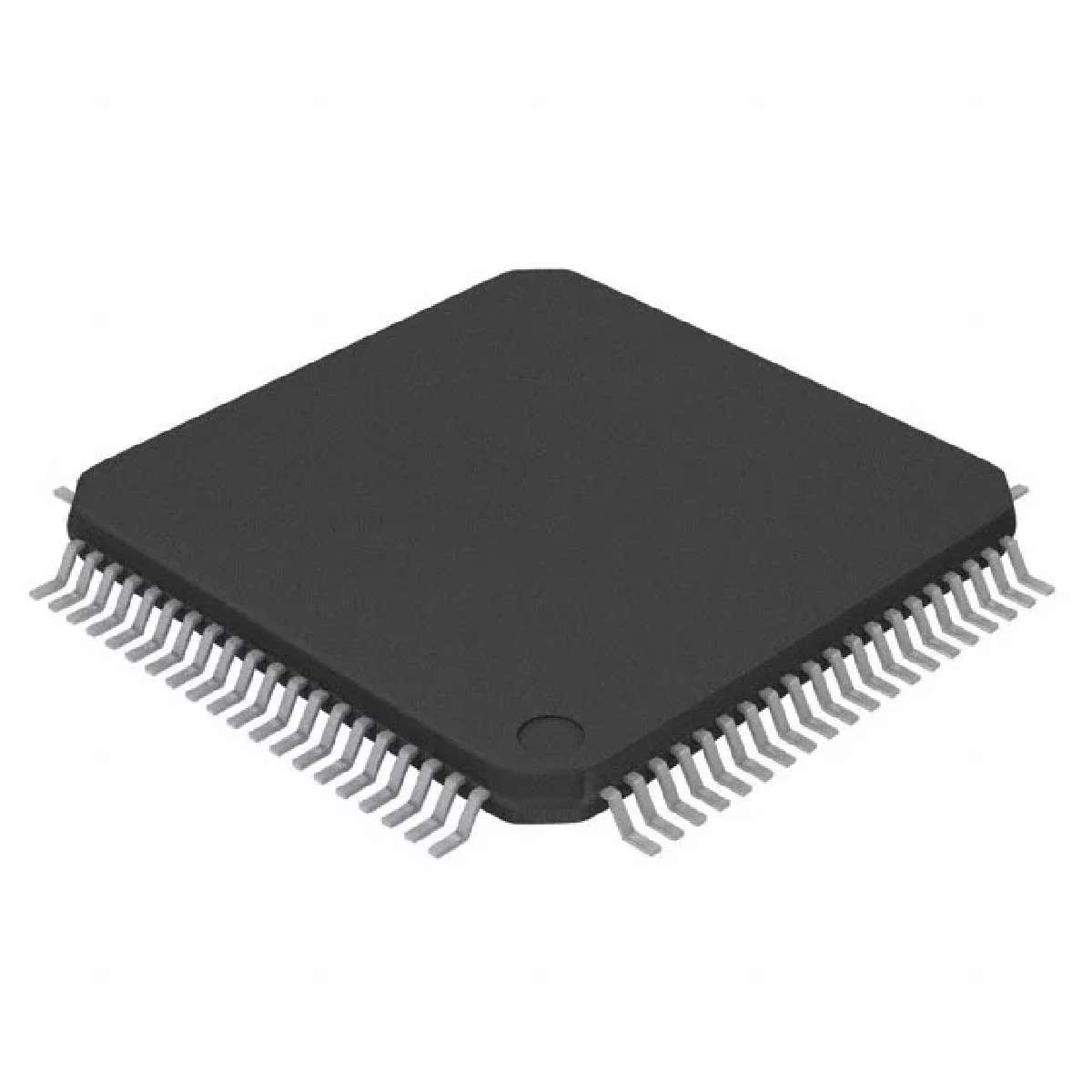

TEXAS INSTRUMENTS MSP430F5418IPNR 芯片, 16位微控制器, MSP430, 18MHz, TQFP-80
CPUXV2 series IC 16 位 18MHz 128KB(128K x 8) 闪存 80-LQFP(12x12)
得捷:
IC MCU 16BIT 128KB FLASH 80LQFP
立创商城:
MSP430F5418IPNR
贸泽:
16-bit Microcontrollers - MCU 16Bit Ultra-Low-Pwr Microcontroller
e络盟:
芯片, 16位微控制器, MSP430, 18MHz, TQFP-80
艾睿:
Texas Instruments&s; MSP430F5418IPNR microcontroller can essentially eliminate certain components and speed up simple tasks within your circuit. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 18 MHz. This is a 16 bit processor. Its ADC resolution is 12. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2.2 V, while its maximum is 3.6 V. Its flash program memory is 128KB. This device is based on the MSP430 core architecture.
安富利:
MCU 16-bit MSP430 RISC 128KB Flash 2.5V/3.3V 80-Pin LQFP T/R
Chip1Stop:
MCU 16-bit MSP430 MSP430 RISC 128KB Flash 2.5V/3.3V 80-Pin LQFP T/R
TME:
MSP430 microcontroller; SRAM:16384B; Flash:128kB; 25MHz; LQFP80
Verical:
MCU 16-bit MSP430 MSP430 RISC 128KB Flash 2.5V/3.3V 80-Pin LQFP T/R
Newark:
# TEXAS INSTRUMENTS MSP430F5418IPNR 16 Bit Microcontroller, Mixed Signal, MSP430, 18 MHz, 128 KB, 16 KB, 80 Pins, LQFP
DeviceMart:
IC MCU 16BIT 128K FLASH 80-LQFP
Win Source:
CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 18MHz 128KB 128K x 8 FLASH 80-LQFP 12x12
频率 18 MHz
电源电压DC 2.20V min
针脚数 80
时钟频率 18.0 MHz
RAM大小 16 KB
位数 16
FLASH内存容量 128 KB
模数转换数ADC 1
输入/输出数 67
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 2.2 V
安装方式 Surface Mount
引脚数 80
封装 LQFP-80
长度 12 mm
宽度 12 mm
高度 1.45 mm
封装 LQFP-80
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430F5418IPNR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F5418IPN 德州仪器 | 类似代替 | MSP430F5418IPNR和MSP430F5418IPN的区别 |
