MUN2137T1G

偏置电阻晶体管 Bias Resistor Transistors

PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network

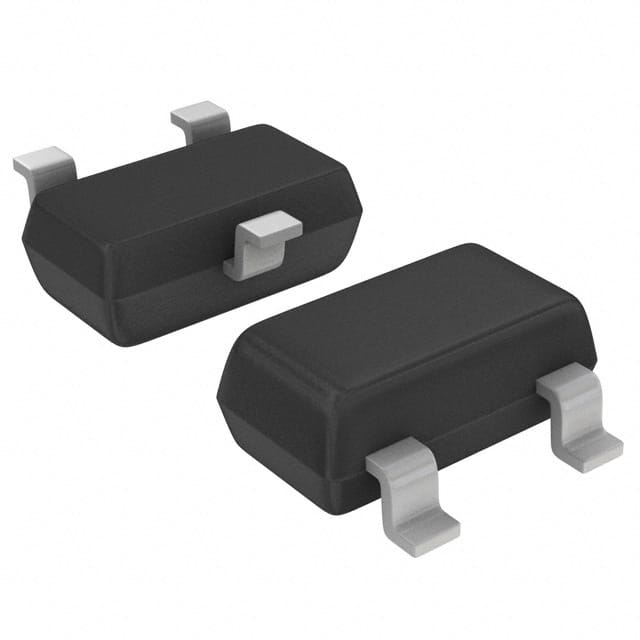

This new series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor BRT contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SC−59 package which is designed for low power surface mount applications.

Features

• Simplifies Circuit Design

• Reduces Board Space

• Reduces Component Count

• Moisture Sensitivity Level: 1

• ESD Rating − Human Body Model: Class 1

   − Machine Model: Class B

• The SC−59 Package Can be Soldered Using Wave or Reflow

• The Modified Gull−Winged Leads Absorb Thermal Stress During Soldering Eliminating the Possibility of Damage to the Die

• Pb−Free Packages are Available
