MUN2241T1G

SC-59 NPN 50V 100mA

NPN Silicon Surface Mount Transistors with Monolithic Bias Resistor Network

This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT Bias Resistor Transistor contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SC−59 package which is designed for low power surface mount applications.

• Simplifies Circuit Design

• Reduces Board Space

• Reduces Component Count

• Moisture Sensitivity Level: 1

• ESD Rating − Human Body Model: Class 1

  ESD Rating − Machine Model: Class B

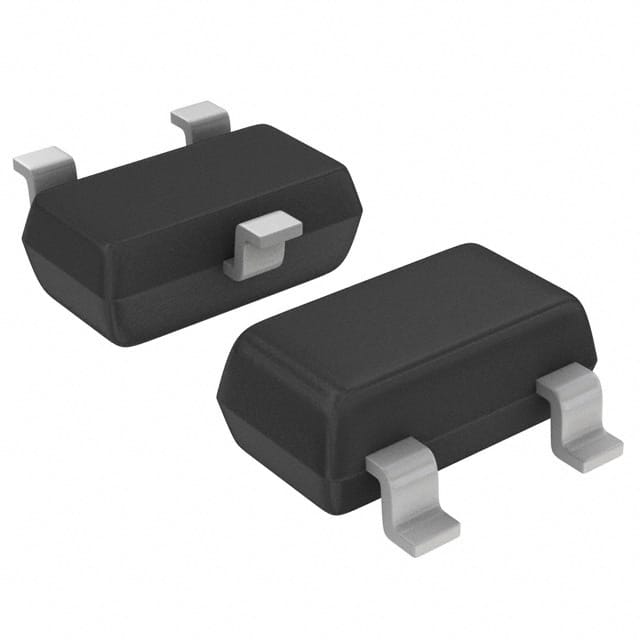

• The SC−59 package can be soldered using wave or reflow. The modified gull−winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die.

• Available in 8 mm embossed tape and reel

Use the Device Number to order the 7 inch/3000 unit reel.

• Pb−Free Packages are Available
