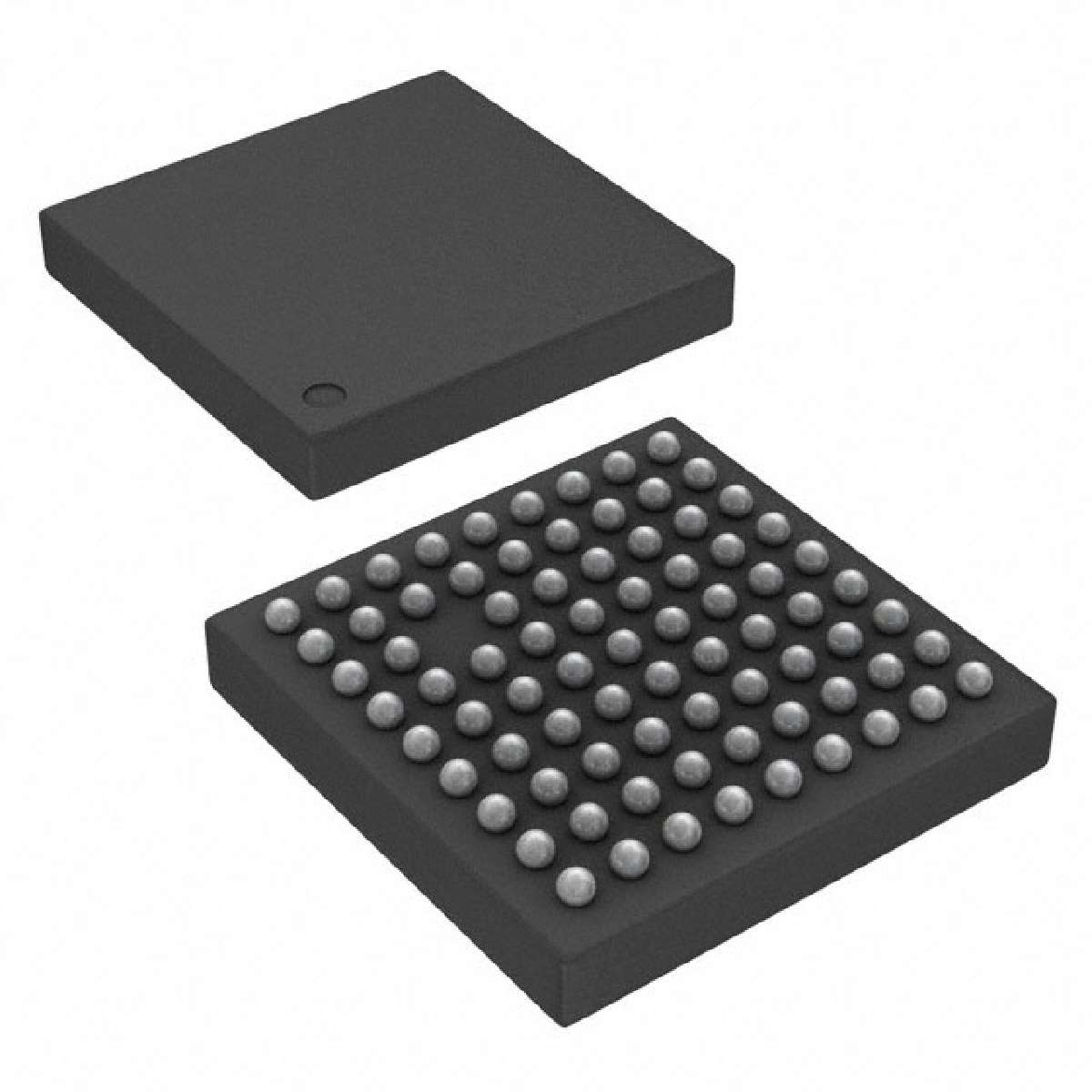

TEXAS INSTRUMENTS MSP430F5249IZQE 16Bit Microcontroller, Mixed Signal, MSP430F5xx, 25MHz, 128KB, 8KB, 80Pins, BGA
CPUXV2 series IC 16 位 25MHz 128KB（128K x 8） 闪存 80-BGA MICROSTAR JUNIOR（5x5）
得捷:
IC MCU 16BIT 128KB FLASH 80BGA
艾睿:
This MSP430F5249IZQE microcontroller from Texas Instruments will make your CPU more versatile and quick. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 25 MHz. Its ADC resolution is 10. This device is based on the MSP430 core architecture. This is a 16 bit processor. Its flash program memory is 128KB. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 1.8 V, while its maximum is 3.6 V.
安富利:
MCU 16-Bit MSP430 RISC 128KB Flash 3.3V 80-Pin BGA MICROSTAR JUNIOR Tray
TME:
MSP430 microcontroller; SRAM:8192B; Flash:128kB; 25MHz; VFBGA80
Newark:
# TEXAS INSTRUMENTS MSP430F5249IZQE 16 Bit Microcontroller, Mixed Signal, MSP430F5xx, 25 MHz, 128 KB, 8 KB, 80 Pins, BGA
频率 25.0 MHz
电源电压DC 1.80V min
时钟频率 25.0 MHz
RAM大小 8K x 8
位数 16
FLASH内存容量 131072 B
UART数量 2
模数转换数ADC 1
FRAM内存容量 0 B
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount

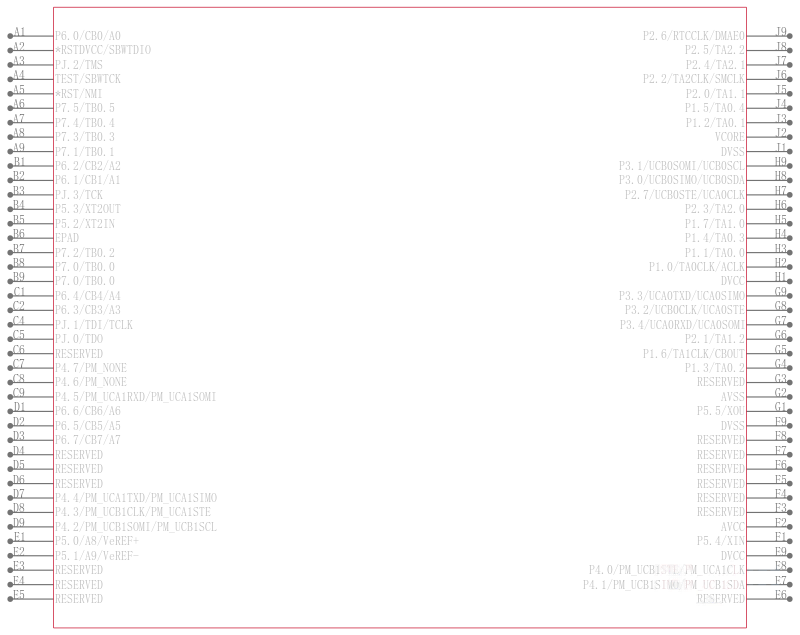

引脚数 80

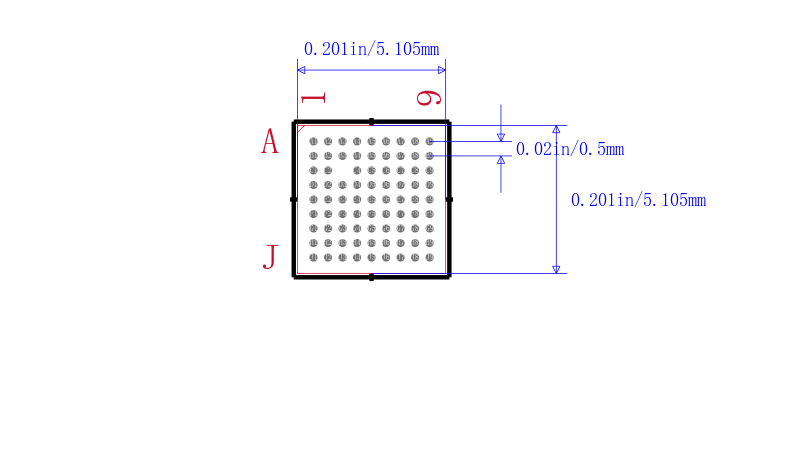

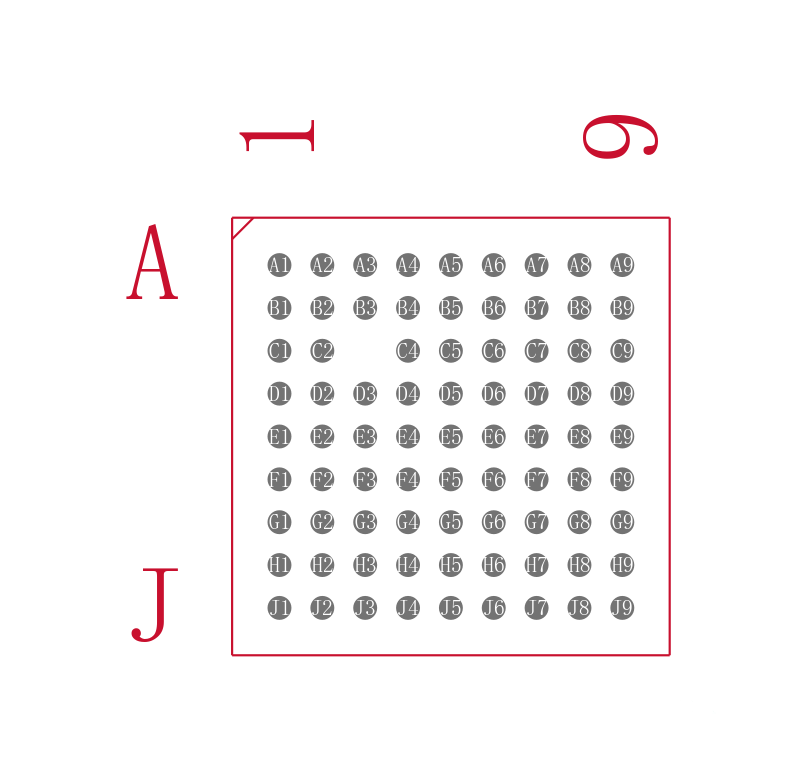

封装 BGA-80
封装 BGA-80
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MSP430F5249IZQE TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F5249IZQER 德州仪器 | 类似代替 | MSP430F5249IZQE和MSP430F5249IZQER的区别 |
MSP430F5249IRGCT 德州仪器 | 功能相似 | MSP430F5249IZQE和MSP430F5249IRGCT的区别 |
