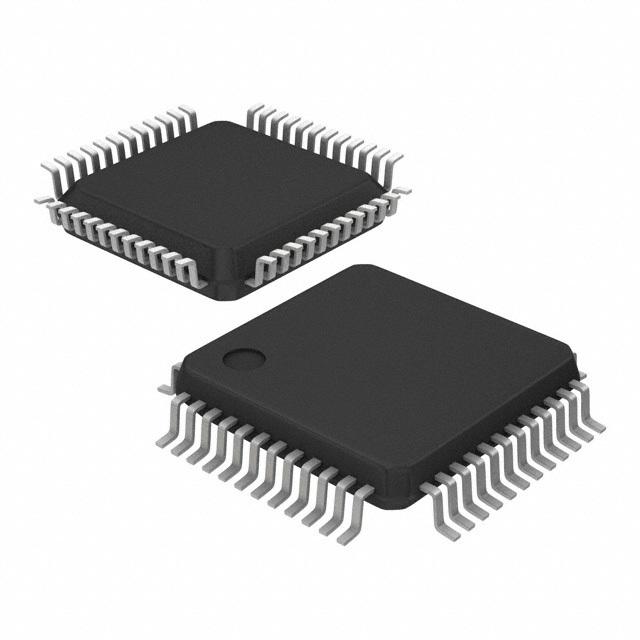

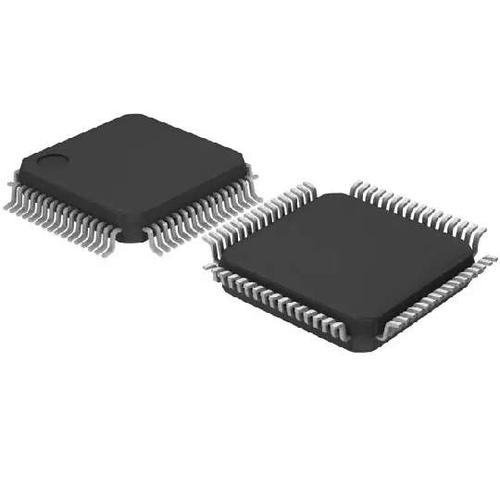

TEXAS INSTRUMENTS MSP430F133IPMR 微控制器, 16位, 混合信号, MSP430F1xx, 8 MHz, 8 KB, 256 Byte, 64 引脚, LQFP
The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6µs. The device configurations with two 16-bit timers, 12-bit A/D converter, a comparator and 48 general-purpose I/O pins. This device operates at a maximum frequency of 8MHz.
频率 8 MHz
电源电压DC 3.30 V, 3.60 V max
针脚数 64
时钟频率 8.00 MHz
RAM大小 256 b
位数 16
FLASH内存容量 8192 B
I/O引脚数 48
内核架构 MSP430
UART数量 1
模数转换数ADC 1
FRAM内存容量 0 B
输入/输出数 48 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
长度 10 mm
宽度 10 mm
高度 1.45 mm
封装 LQFP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 计量, 传感与仪器, 电机驱动与控制, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430F133IPMR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F133IPM 德州仪器 | 类似代替 | MSP430F133IPMR和MSP430F133IPM的区别 |
MSP430F133IPAG 德州仪器 | 类似代替 | MSP430F133IPMR和MSP430F133IPAG的区别 |
