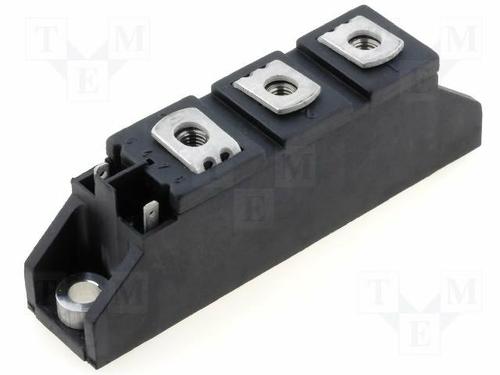

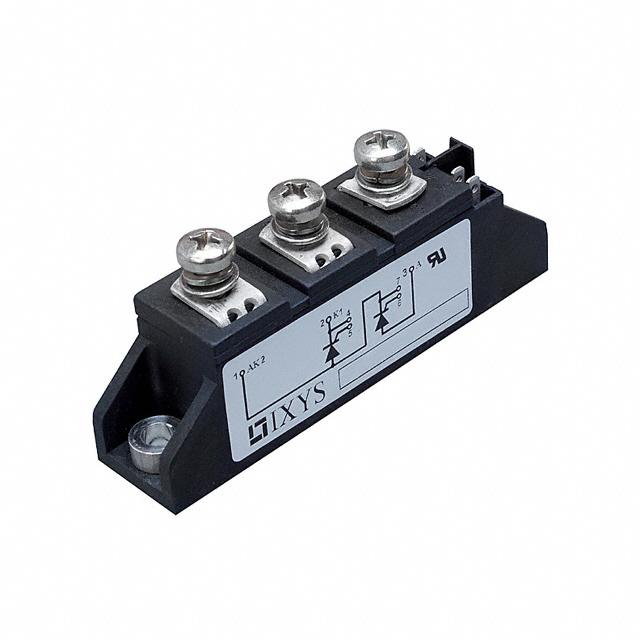

MCD56-08IO8B

Silicon Controlled Rectifier, 100A ITRMS, 60000mA IT, 800V VDRM, 800V VRRM, 1Element, TO-240AA, ROHS COMPLIANT, TO-240AA, 4Pin

Thyristor Modules Thyristor/Diode Modules

Features

• International standard package, JEDEC TO-240 AA

• Direct copper bonded Al2O3-ceramic base plate

• Planar passivated chips

• Isolation voltage 3600 V~

• UL registered, E 72873

• Gate-cathode twin pins for version 1B

Applications

• DC motor control

• Softstart AC motor controller

• Light, heat and temperature control

得捷:
MOD THYRISTOR/DIO 800V TO-240AA

艾睿:
Thyristor SCR Module 800V 1.62KA 4-Pin TO-240AA Box

TME:
Module; double series; 800V; 2x64A; TO240AA; Ufmax:1.57V; screw
