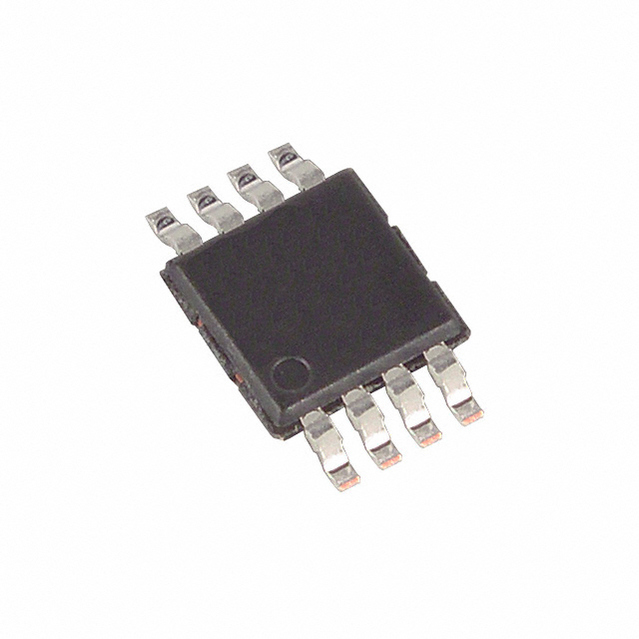

MAX4166EUA+

运算放大器, 1个放大器, 5 MHz, 2 V/µs, ± 1.35V至± 3.25V, 2.7V至6.5V, µMAX, 8 引脚

The from Products is a high output drive, precision, low power, single supply, rail to rail I/O single operational amplifier op-amp with shutdown in 8 pin µMAX package. Device has a shutdown mode that reduces supply current to 38µA per amplifier and places the outputs into a high impedance state. This single amplifier is ideal for portable audio applications, low voltage and battery powered systems as it features precision performance combined with high output current, wide input/output dynamic range and low power consumption makes it ideal for portable audio applications and other low voltage, battery powered systems. Applications include portable headphone speaker drivers, laptop/notebook computers, sound ports/cards, set-top boxes, cell phones, hands free car phones kits, signal conditioning, digital to analogue converter buffers, transformer/line drivers and motor drivers.

.

Operate from a single 2.7V to 6.5V supply or from dual ±1.35V to ±3.25V supplies

.

Combines excellent DC accuracy with high output current drive

.

Minimum output drive capability is 80mA, operating temperature range from -40°C to 85°C

.

Rail to rail input common-mode voltage range and rail to rail output voltage swing

.

Supply current per amplifier is 1.2mA, input offset current of ±1nA

.

Gain bandwidth product is 5MHz at VCC = +2.7V to +6.5V, rail to rail inputs and outputs

.

0.35µV input offset voltage at VCM = VEE to VCC, TA = 25°C, 120dB voltage gain at RL = 100Kohm

.

PSRR is 86dB at VCC = 2.7V to 6.5V, TA = +25°C, input bias current of ±50nA at TA = +25°C

.

No phase reversal for overdriven inputs, CMRR of 89dB at TA = +25°C

.

Unity gain stable for capacitive loads to 250pF, single supply operation
